Raven RS1 Calibration & Operation Manual

P/N 016-4010-001 Rev. A 23
CALIBRATION

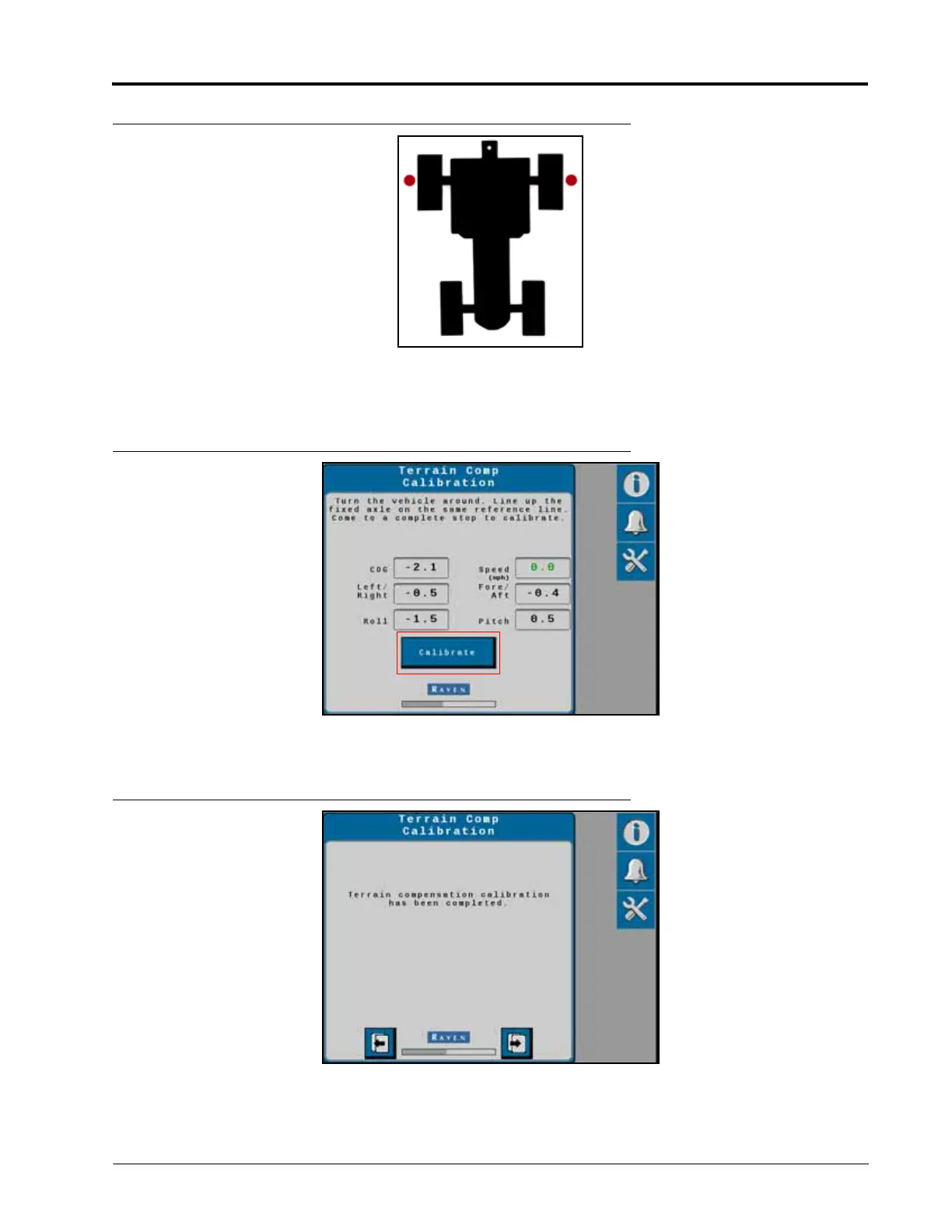

FIGURE 35. Machine Orientation After Terrain Comp Calibration
6. Turn the machine around 180° and park with the machine facing the opposite direction and the fixed axle in
between the flags or markers.
FIGURE 36. Terrain Comp Calibration Screen
7. Select Calibrate. Once the calibration is complete the following screen will appear.
FIGURE 37. Finish Calibration
8. Select the Next arrow.
