RADAR SENSORS
1. Use the Left and Right Side drop down lists to select the serial number of the radar sensor mounted on the left
and right wheel.

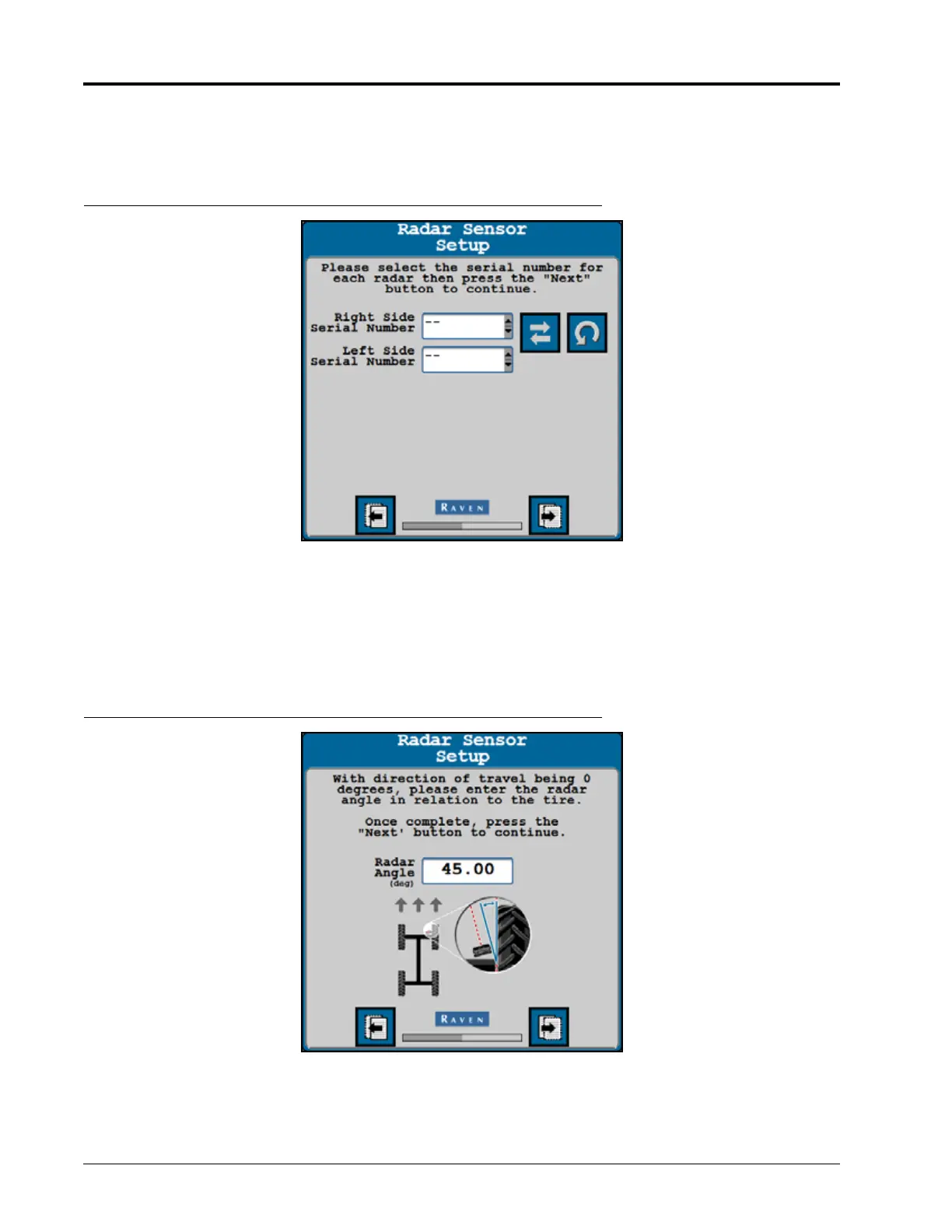

FIGURE 11. Left/Right Radar Sensor Setup Page
NOTE: Touch the Flip Left/Right button to flip the entered values for the left and right radar sensors. Touch
the Refresh button to redetect the radar sensors connected to the system.
2. Select the Next button.
3. Measure the angle of the radar sensors. This angle is measured using the direction of forward vehicle travel as
0°.
FIGURE 12. Radar Sensor Angle Page
NOTE: The factory radar brackets are designed to mount the radar sensors at a 45° angle with the forward
course over ground. Enter the radar sensor angle as a positive value.
