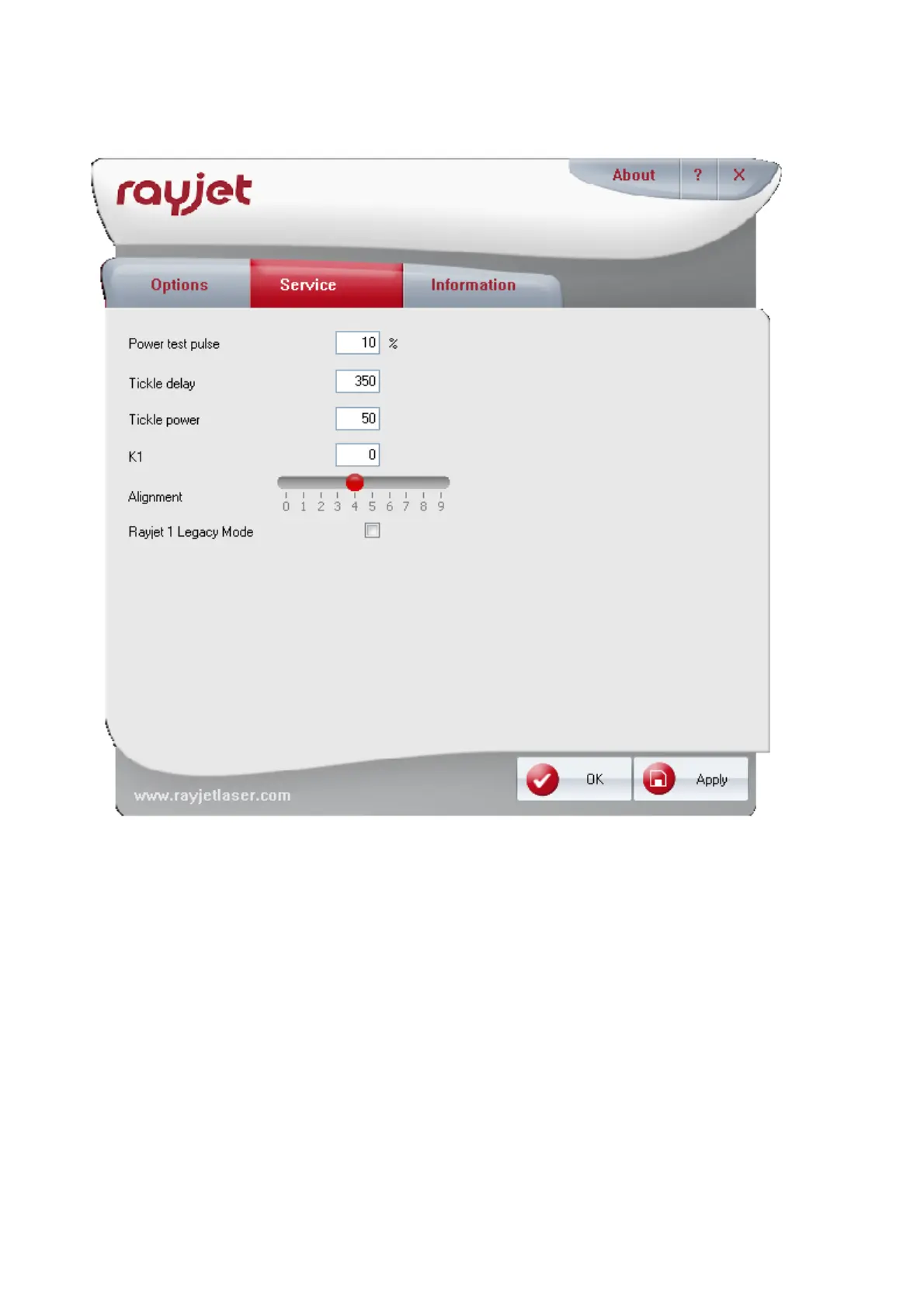

5.2 Tab „Service“
Power test puls defines, with which power the lasertube fires when initiating a test pulse by
pressing the STOP and PAUSE button simultaneously on the keypad on the Rayjet.
The following parameters are responsible for achieving good engraving quality. Trotec uses a
patented algorithm for compensating imperfections of the laser tube behaviour.
Tickle delay defines the minimal stimulation time to make the lasertube fire. If you discover dots
between the objects to engrave, you might increase this value.
Tickle Power keeps the laser tube at a certain excitation level to make it fire as fast as possible.
When increasing this value you have to make sure, that the lasertube barely does not shoot.
Check this on sensitiv material as gold.
K1 provides a shift of the laser control signal linear with speed.
Alignment provides a continuous shift independent on the speed.
To find out the correct settings for K1 and Alignment, engrave the test pattern and choose the jobs
with the best result.
