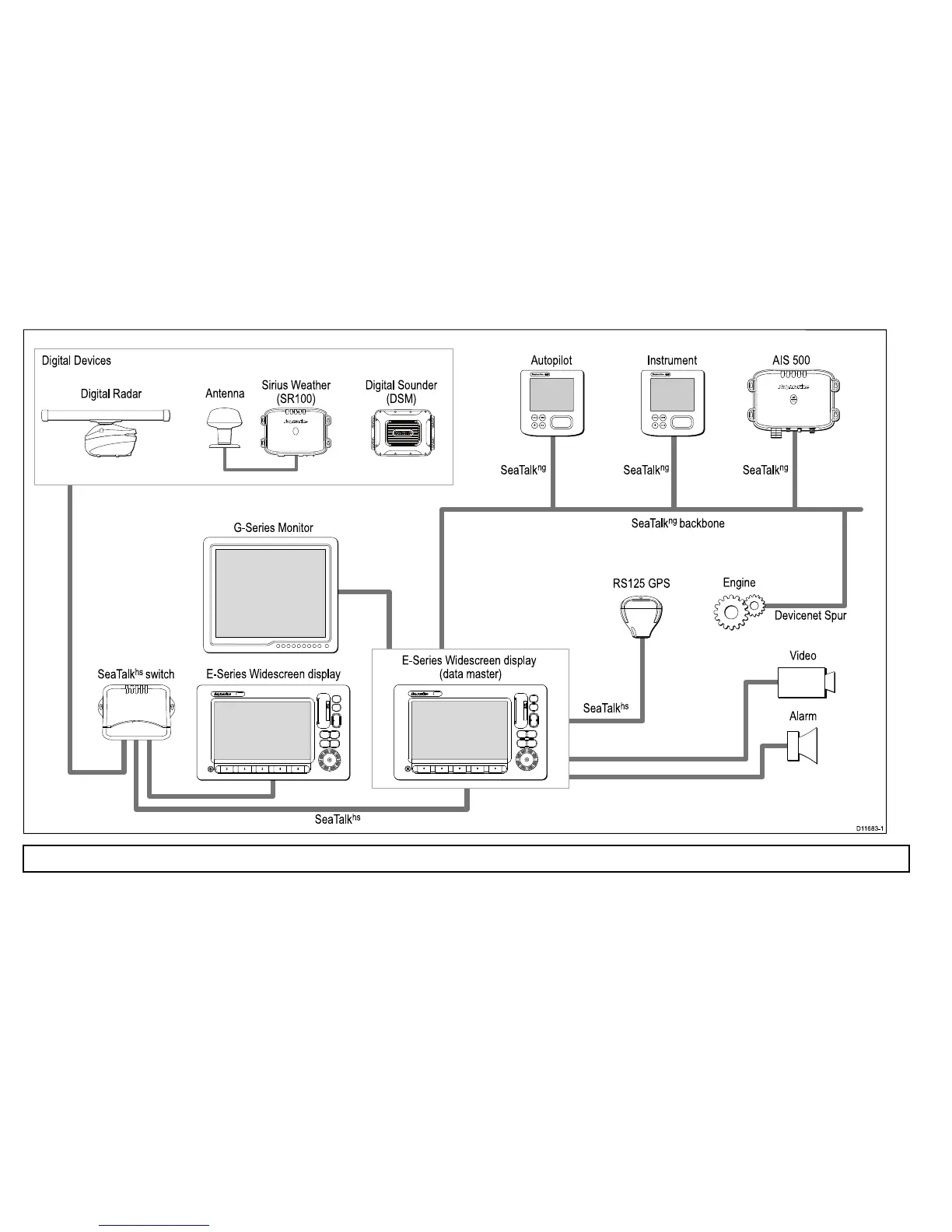

Expandedsystemexample
ENTERCANCEL
MENU
ENTERCANCEL
MENU
E-Series Widescreen display
E-Series Widescreen display
(data master)
D116 83-1
Autopilot Instrument AIS 500
SeaTalk
ng
backbone
SeaTalk
ng
SeaTalk
ng
SeaTalk
ng
RS125 GPS
Alarm
Video
SeaTalk
hs
switch
Engine
SeaTalk
hs
G-Series Monitor
AIS
500
Sirius Weather
(SR100)
Antenna
Digital Radar
Digital Sounder
(DSM)
Digital Devices
Devicenet Spur
SeaTalk
hs
Note:Thesystemallowsupto5E-SeriesWidescreendisplaystobeconnectedonaSeaT alk
hs
network.
16E-SeriesWidescreeninstallation
