Raymarine E90W Installation Instructions

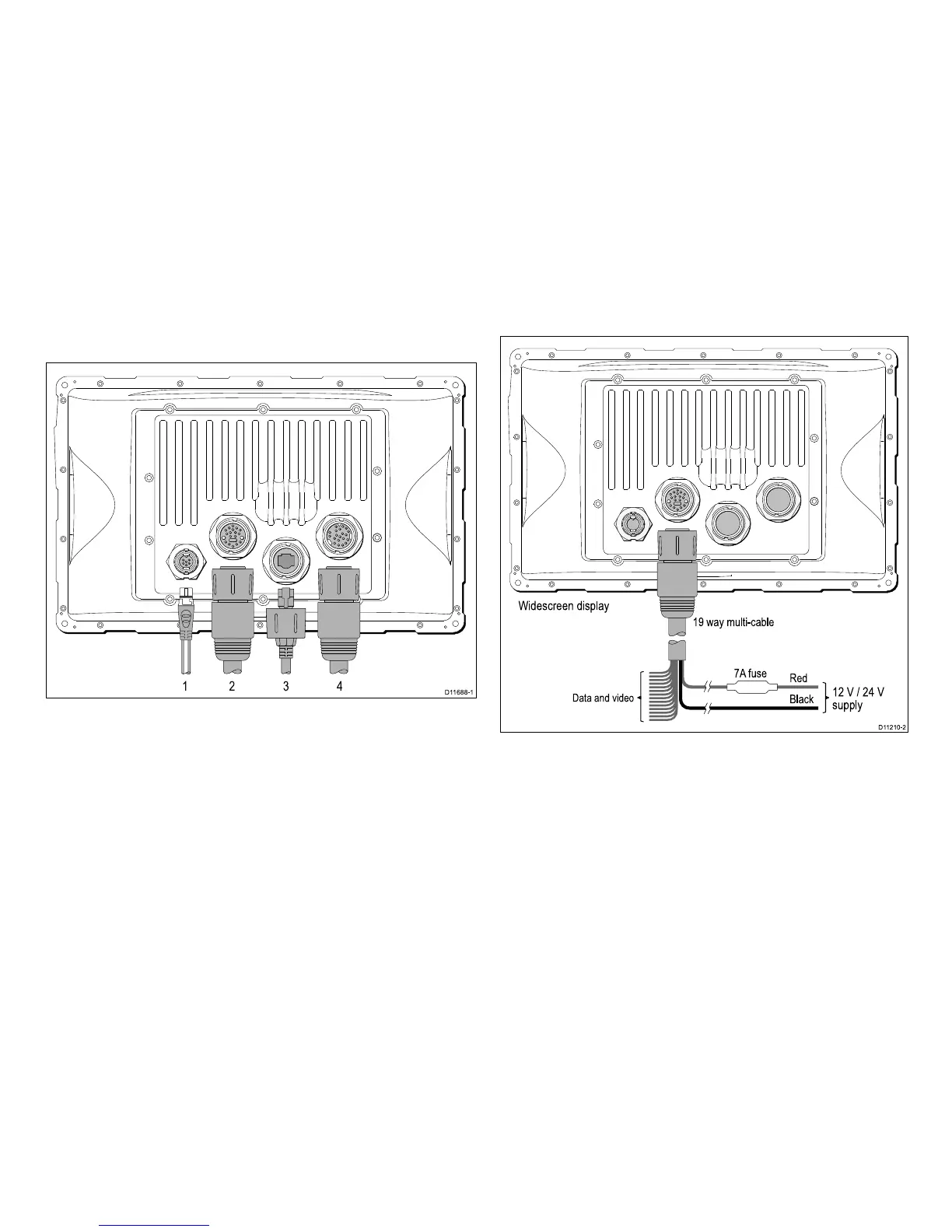

3.2Connectionsoverview
Cableconnectorsareontherearofthedisplay.
1 2 3 4
D116 88 -1
1.SeaTalk
ng
2.Power,dataand1xvideoin
3.SeaTalk
hs
4.Additional3xVideoin,1xvideooutandalarmaudiolineout
3.3Powerconnection
Widescreen display
19 way multi-cable
Red
7A fuse
Black
12 V / 24 V
supply
Data and video
D112 10-2
Powerdistribution
Raymarinerecommendthatallpowerconnectionsaremadeviaa
distributionpanel.
•Allequipmentmustbepoweredfromabreakerorswitch,with
appropriatecircuitprotection.
•Allequipmentshouldwherepossiblebewiredtoindividual
breakers.
Cablesandconnections23
