3.7Alarmconnection
Analarmbuzzercanbeconnectedusingthepower/datacable
providedwiththedisplay.

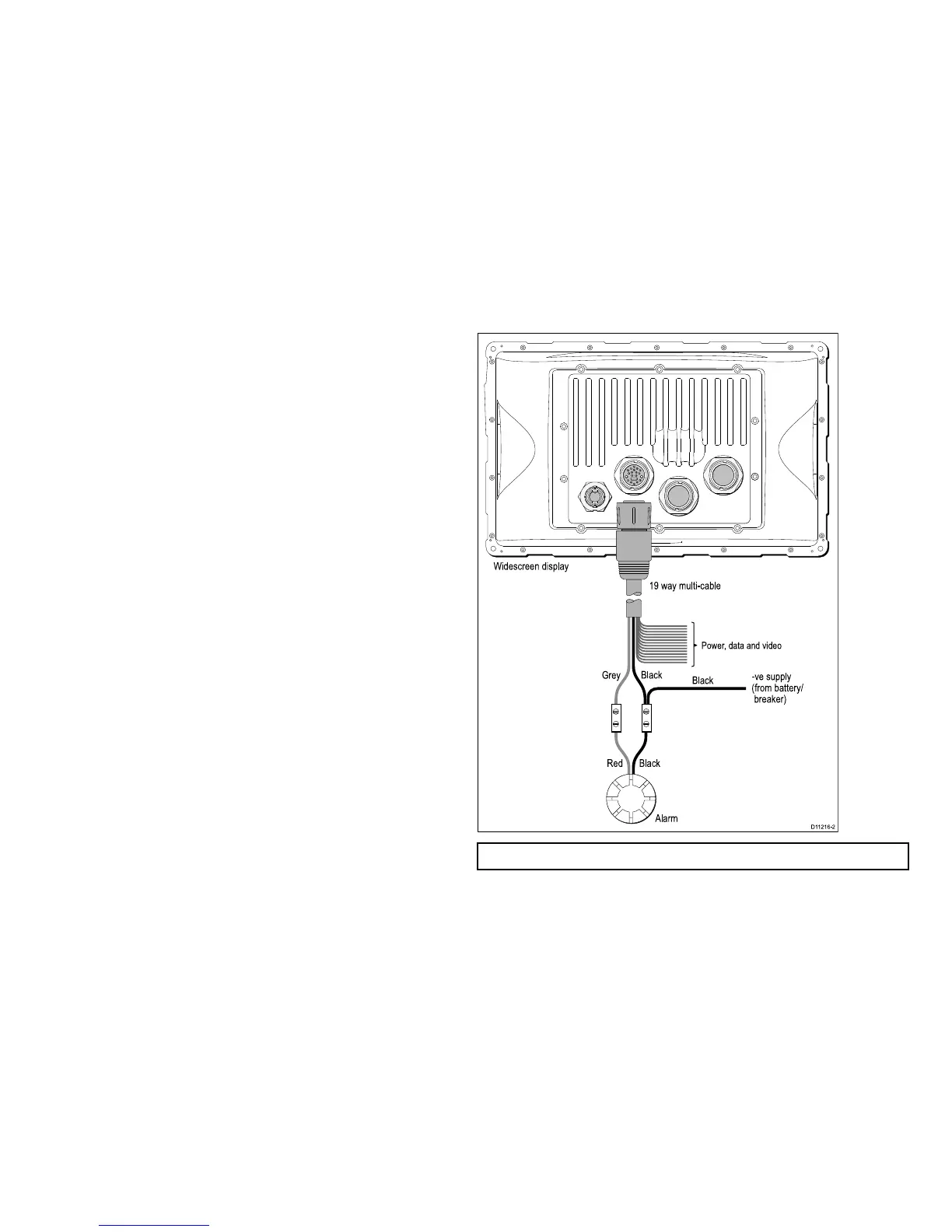

Typicalalarmconnection
Widescreen display
Red
Black
Black
Alarm
Grey
Black
D112 16-2
-ve supply
(from battery/
breaker)
19 way multi-cable
Power, data and video
Note:Thealarmoutputisratedfor100mAmaximumload
36E-SeriesWidescreeninstallation
