2.3E-SeriesWidescreensystem
TheE-SeriesWidescreendisplaycanbeconnectedtoavarietyofequipmentaspartofyourmarineelectronicssystem..

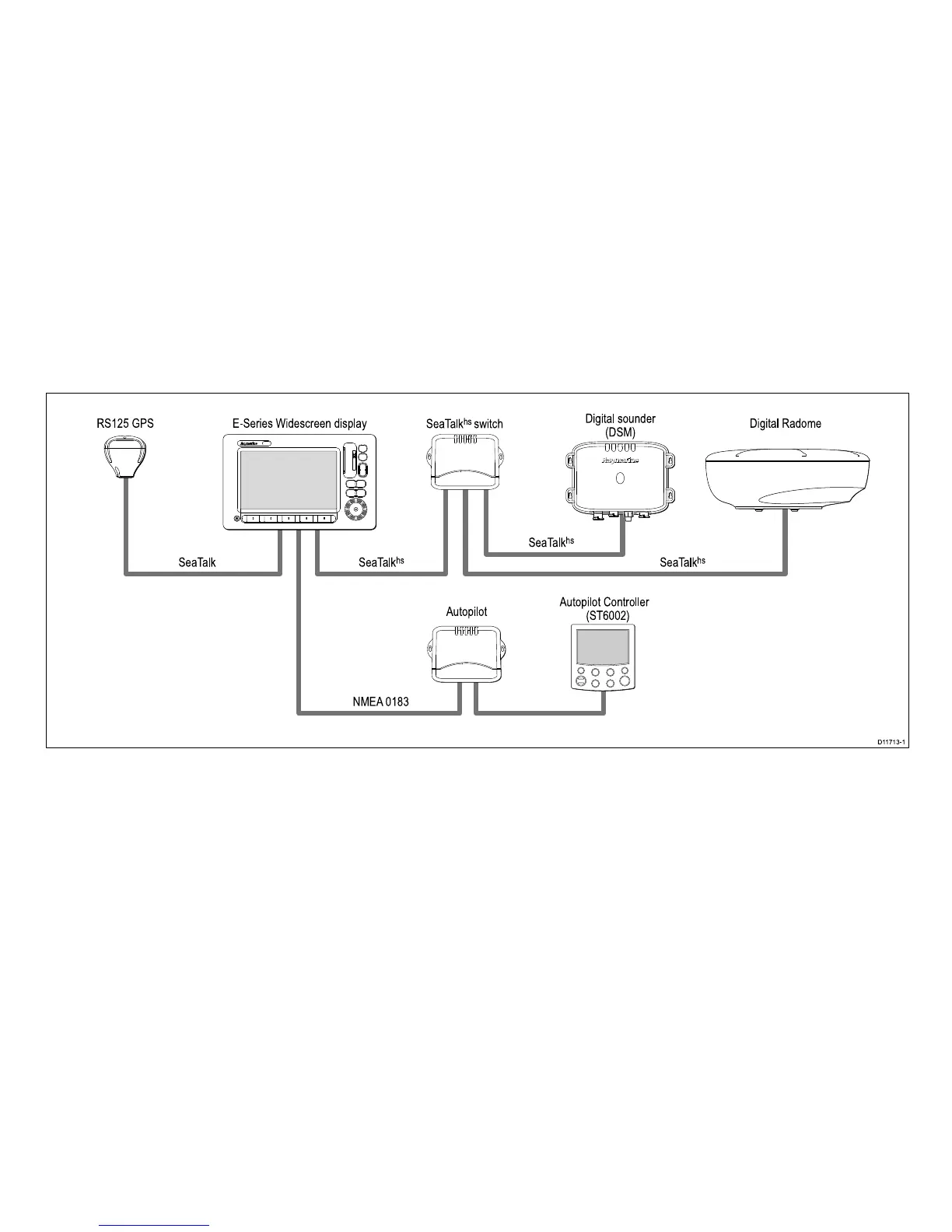

Basicsystemexample
D117 13-1
SeaTalk
hs
switch
E-Series Widescreen display
Digital sounder
(DSM)
Autopilot Controller
(ST6002)
Autopilot
Digital RadomeRS125 GPS
S
eaTalk
hs
SeaTalk
NMEA 0183
SeaTalk
hs
SeaTalk
hs
Planningtheinstallation
15
