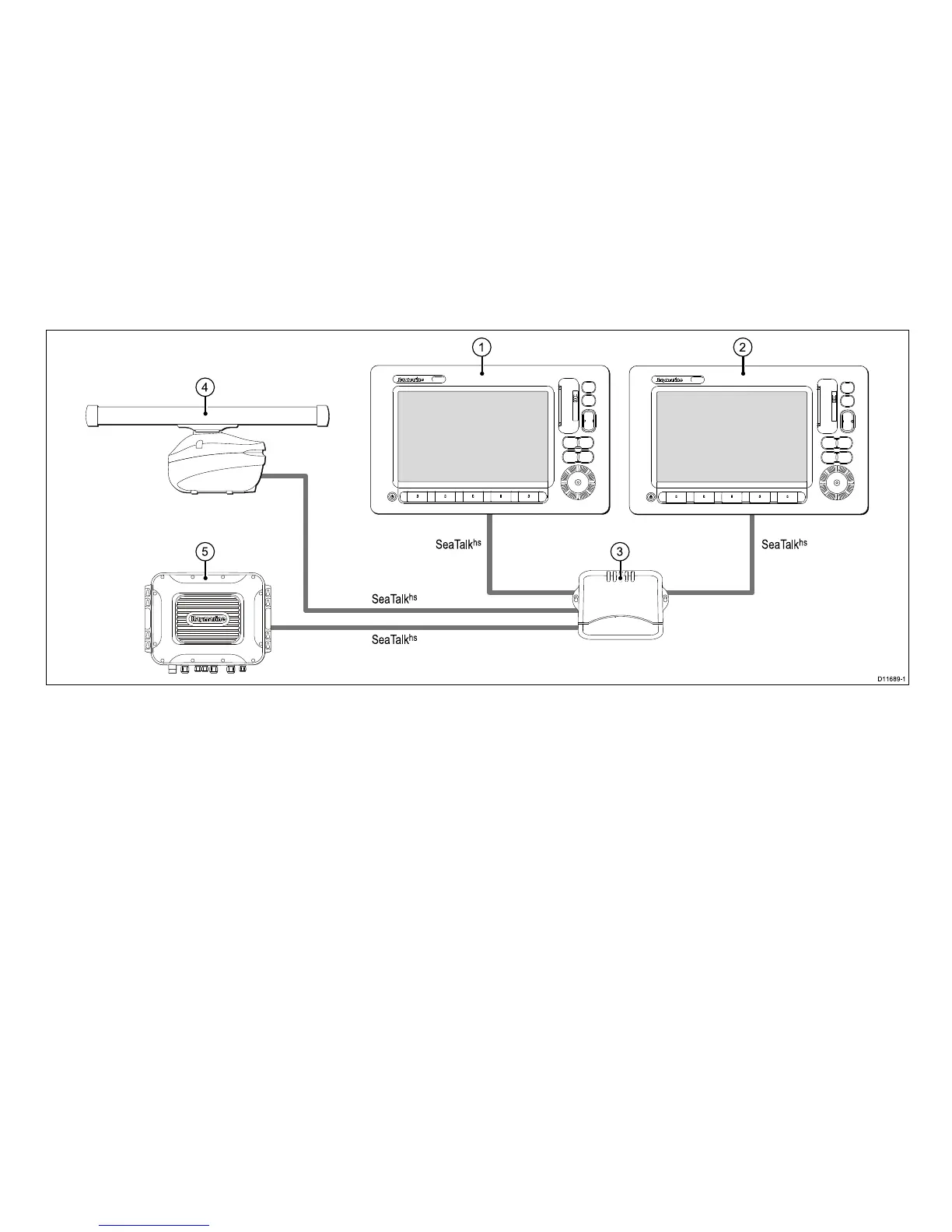

TypicalSeaTalk
hs
network
D11 68 9-1
SeaTalk
hs
SeaTalk
hs
SeaTalk
hs
SeaTalk
hs
1
4
5 3
2
1.Datamasterdisplay
2.Repeatdisplay
3.SeaTalk
hs
switch
4.Digitalradarscanner
5.Digitalsounder,e.g.DSM400
Radarconnection
ThedisplayiscompatiblewithRaymarinedigitalradarscanners.
ThescannerisconnectedusingaSeaT alk
hs
cable.
ThedigitalradarisusuallyconnectedviaaSeaT alk
hs
switch.On
smallersystems(withonlyonedisplayandnootherdigitaldevices)
theradarmaybeconnectedusingacrossovercoupler.
