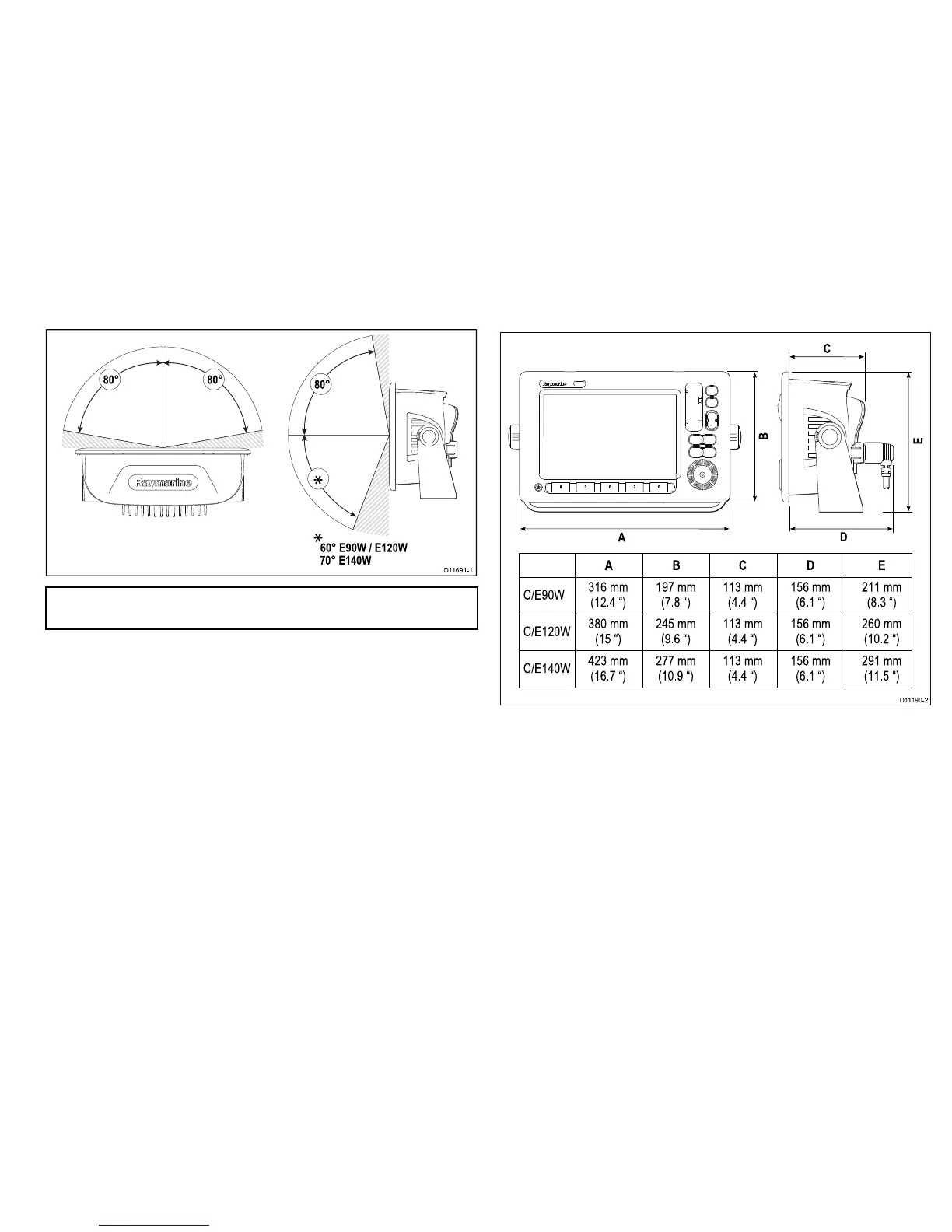

Viewingangle
D116 91 -1
80° 80°
60° E90W / E120W
70° E140W
80°
Note:Theanglesareprovidedforacontrastratioofequalto
orgreaterthan10.
Widescreendisplaydimensions
D11190-2
B
E
A
D
C
C/E90W
316 mm
(12.4 “)
A
197 mm
(7.8 “)
B
113 mm
(4.4 “)
C
156 mm
(6.1 “)
D
211 mm
(8.3 “)
C/E120W
380 mm
(15 “)
245 mm
(9.6 “)
113 mm
(4.4 “)
156 mm
(6.1 “)
260 mm
(10.2 “)
C/E140W
423 mm
(16.7 “)
277 mm
(10.9 “)
113 mm
(4.4 “)
156 mm
(6.1 “)
291 mm
(11.5 “)
E
Locationandmounting
