5.Backboneterminator(A06031).T
erminatorsmustbefittedtobothendsoftheSea Talkng
backbone.
6.Spurblankingplugs(A06032).Usedtocoverunusedspurconnectionsin5–wayblocks,T-piece
connectors,ortheSeaTalktoSeaTalkngconverter.
7.Spurconnectorrightangledelbow(A06077).Usedinconfinedspaceswhereastraightspur
cablewillnotfit.

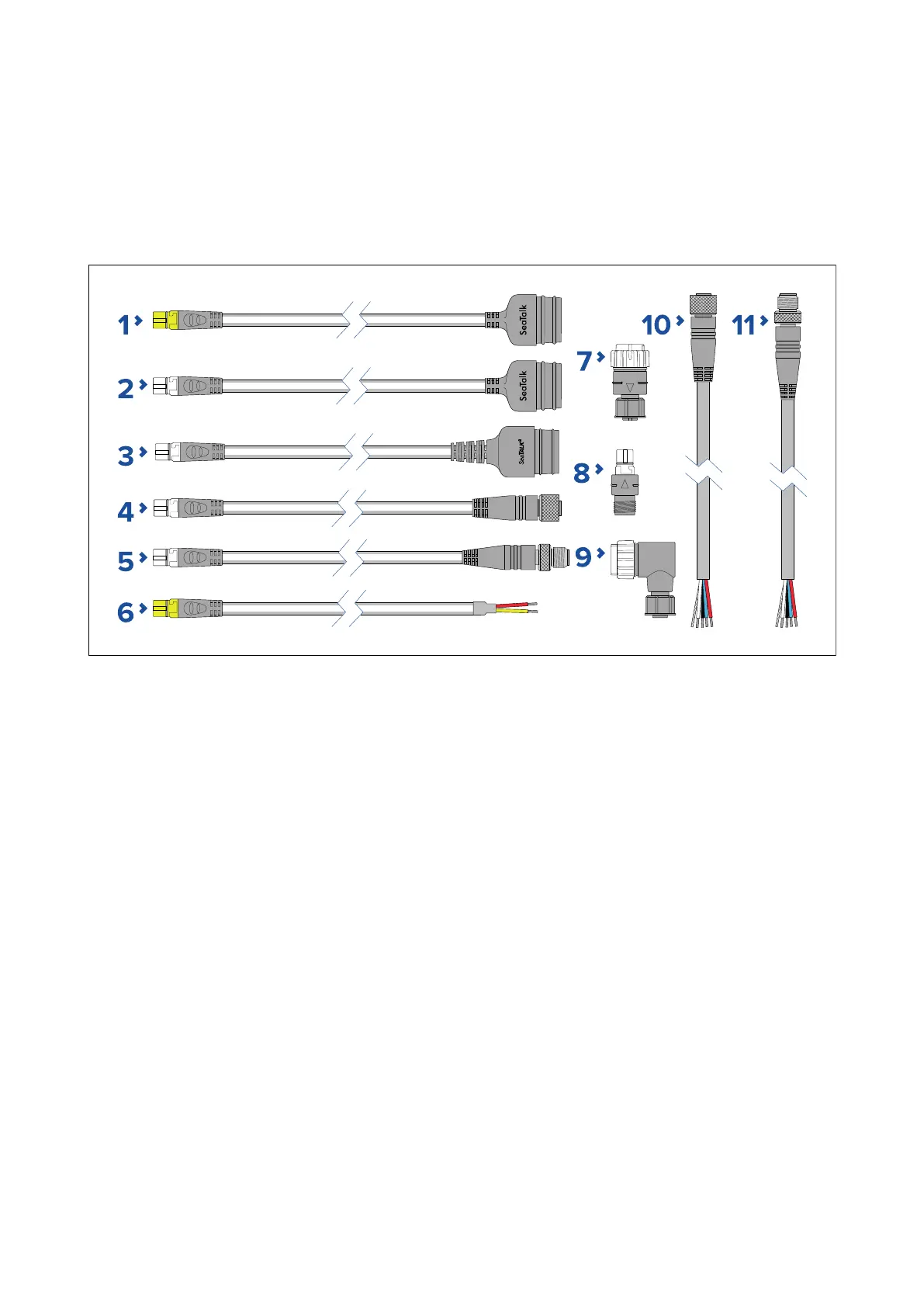

SeaTalkng®adaptorsandadaptorcables
SeaTalkngadaptorcablesareusedtoconnectdevicesdesignedfordifferentCANbusbackbones
(e.g.:Sea TalkorDeviceNet)totheSeaTalkngbackbone.
1.1m(3.3ft)Sea Talk(3pin)toSea Talkngconvertercable(A22164/A06073).Canbeusedto
connectaSeaTalkdevicetoaSeaTalkngbackboneviatheSea TalktoSeaTalkngconverter,or
toconnectaSea TalkngproductdirectlytoaSeaTalknetwork.
2.0.4m(1.3ft)Sea Talk(3pin)toSeaTalkngadaptorcable(A06047).Canbeusedtoconnecta
SeaTalkdevicetoaSea TalkngbackboneviatheSea TalktoSeaTalkngconverter,ortoconnect
aSea TalkngproductdirectlytoaSeaTalknetwork.
3.0.4m(1.3ft)SeaTalk2(5pin)toSeaTalkngadaptorcable(A06048).UsedtoconnectSeaTalk2
devicesornetworkstoaSea Talkngbackbone.
4.SeaTalkngtoDeviceNet(female)adaptorcablesconnectNMEA2000devicesthatusea
DeviceNetconnectortotheSea Talkngbackbone,orconnectsSea TalkngdevicestoanNMEA
2000network.Thefollowingcablesareavailable:
•0.4m(1.3ft)SeaTalkngtoDeviceNet(female)adaptorcable(A06045).
•1m(3.3ft)SeaTalkngtoDeviceNet(female)adaptorcable(A06075).
5.SeaTalkngtoDeviceNet(male)adaptorcables.ConnectNMEA2000devicesthatusea
DeviceNetconnectortotheSeaTalkngbackbone,orconnectSeaTalkngdevicestoanNMEA
2000network.Thefollowingcablesareavailable:
•0.1m(0.33ft)Sea TalkngtoDeviceNet(male)adaptorcable(A06078).
•0.4m(1.3ft)SeaTalkngtoDeviceNet(male)adaptorcable(A06074).
•1m(3.3ft)Sea TalkngtoDeviceNet(male)adaptorcable(A06076).
•1.5m(4.92ft)SeaTalkngtoDeviceNet(male)adaptorcable(A06046).
6.1m(3.3ft)NMEA0183VHFstripped-end(2wire)toSea Talkngadaptercable(A06071).Used
toconnectanNMEA0183VHFradiototheSeaTalkngbackboneviatheNMEA0183VHFto
SeaTalkngconverter.
7.SeaTalkng(male)toDeviceNet(female)adaptor(A06082).
8.SeaTalkng(female)toDeviceNet(male)adaptor(A06083).
9.SeaTalkng(male)toDeviceNet(female)elbow(rightangled)adaptor(A06084).
Sparesandaccessories
