RT-7200 Auto Hematology Analyzer User’s Manual
1.3.1 Front view

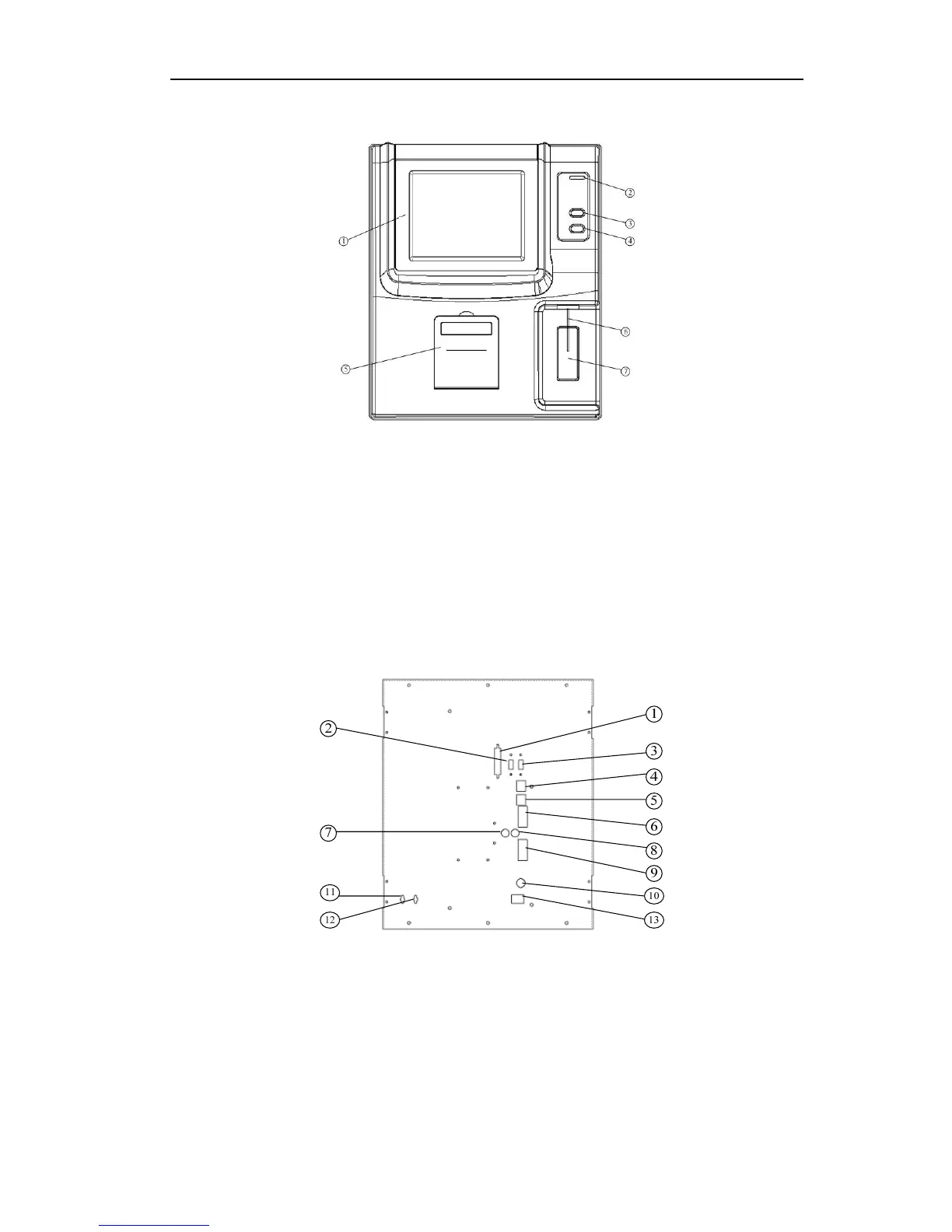

Fig.1-1 Front view
① Display screen: Display the software interface
② Indicator light: green at startup, turn red when starting sample test, turn green after test.
③ Feed key: built-in printer feeds paper outward
④ Aspiration key: in sample analysis, press this key, the instrument will aspirate sample
⑤ Printer cover: print paperinstalling position for built-in printer
⑥ Sampling needle: use sampling needle to aspirate sample into chamber
⑦ Aspiration key: in sample analysis, press this key, the instrument will aspirate sample,
function the same as key ④
1.3.2 Rear view
Fig.1-2 Rear view
1) Parallel port: printer interface
2) USB port 1
3) USB port 2
4) Network interface 1
5) Network interface 2
6) RS-232 serial port: to connect with data receiving devices
7) Keyboard interface: PS/2 keyboard interface
