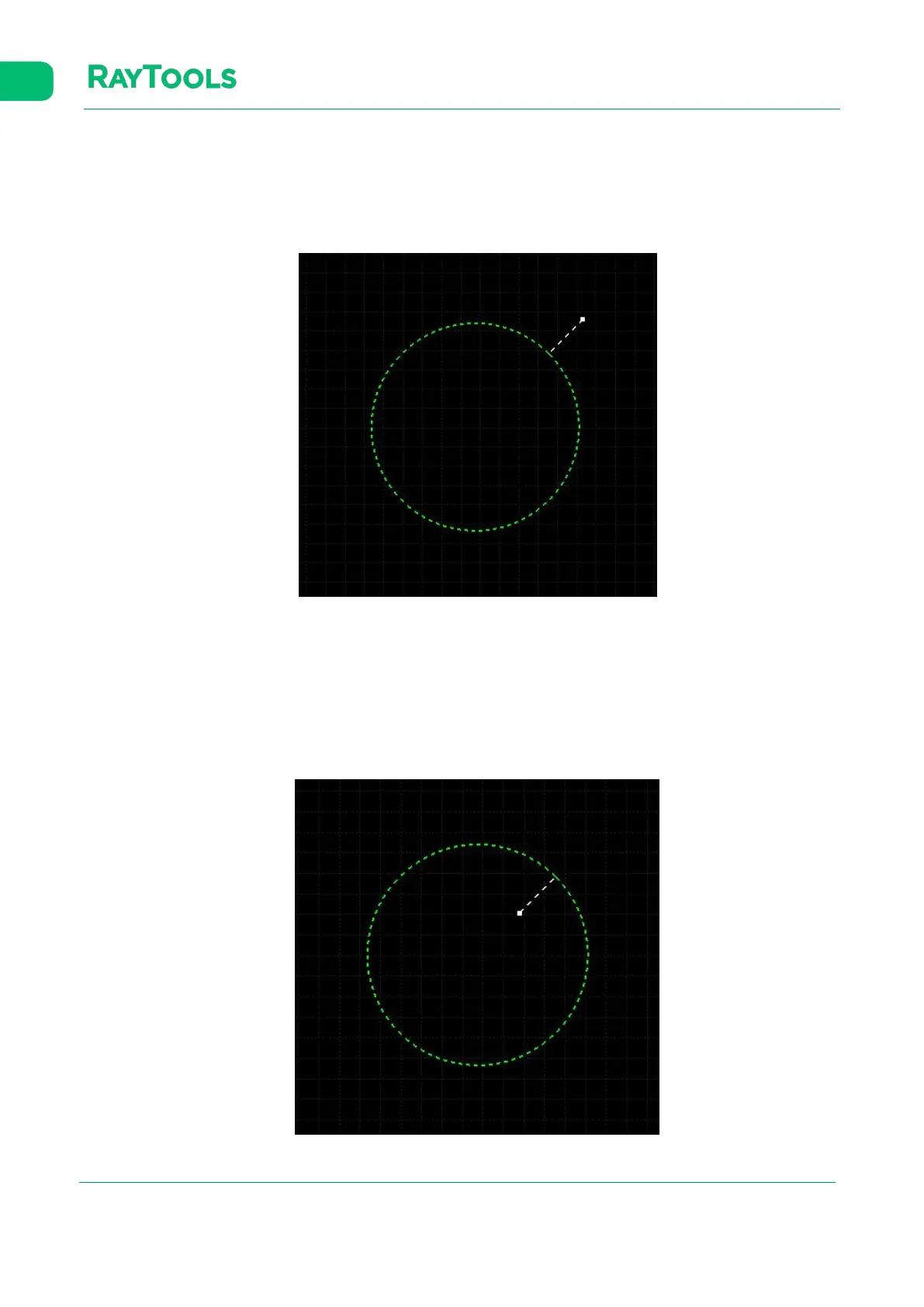

2.1.11 Outer Cut
Outer refers to cutting by adding a leadline outside the graphic contour.
Select the graphic with a leadline and click on Outer button to make the leadline being outside the contour, as shown
below:
2.1.12 Inner Cut
Inner refers to cutting by adding a leadline inside the graphic contour.
Select the graphic with leadline and click on Inner button to make the leadline being outside the contour, as shown
below:
