RCm BIT 391CB - Assembling the Components; Unpacking

Fig. 1
Fig. 2
1
3
4
5
Fig. 3
7
3
4
5
2
6
1
2
1
2
EN
EN-7

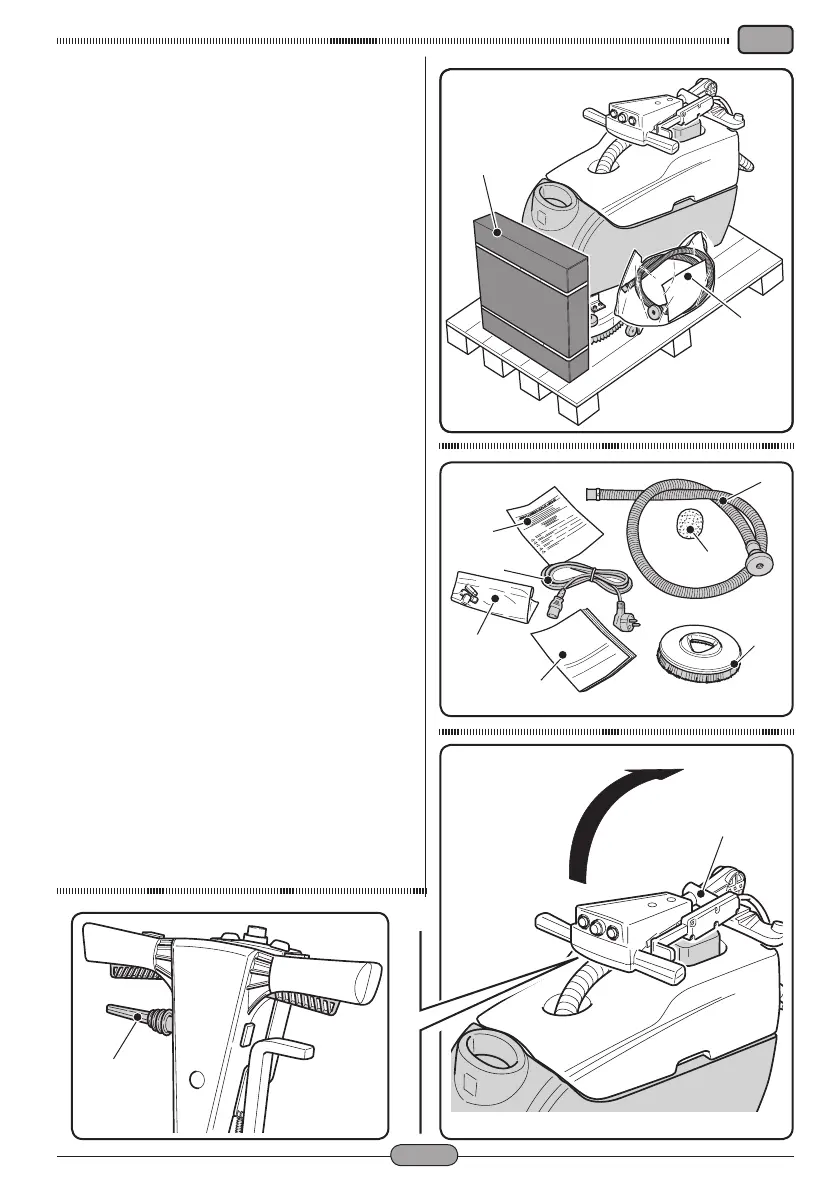

2.1 UNPACKING (Fig. 1 )
Once the packaging has been removed as
shown in the instructions on the packaging it-
self, check that the machine and all the com-
ponents supplied are intact.
If any evident damage is found, contact the
area agent and the carrier within 3 days of
receipt
- Remove the pack (1) containing the ac-
cessories supplied and the box (2) con-
taining the brush..
2.1.a - Standard machine equipment
(Fig. 2)
The accessories supplied are as follows:
1) Water filling hose.
2) Machine use and maintenance manual.
3) Battery charger instruction manual
4) Filter for clean water tank opening.
5) Battery charger power cable.
6) 40A fuse - 20A fuse - 30A fuse.
7) Brush.
3.1 ASSEMBLING THE
COMPONENTS
3.1.a - Positioning of the handle
(Fig. 3)
- Unlock the handle (1) pulling the lever
(2) and lift it placing it in the desired posi-
tion.
