go to “Rack Tab” on page 99.

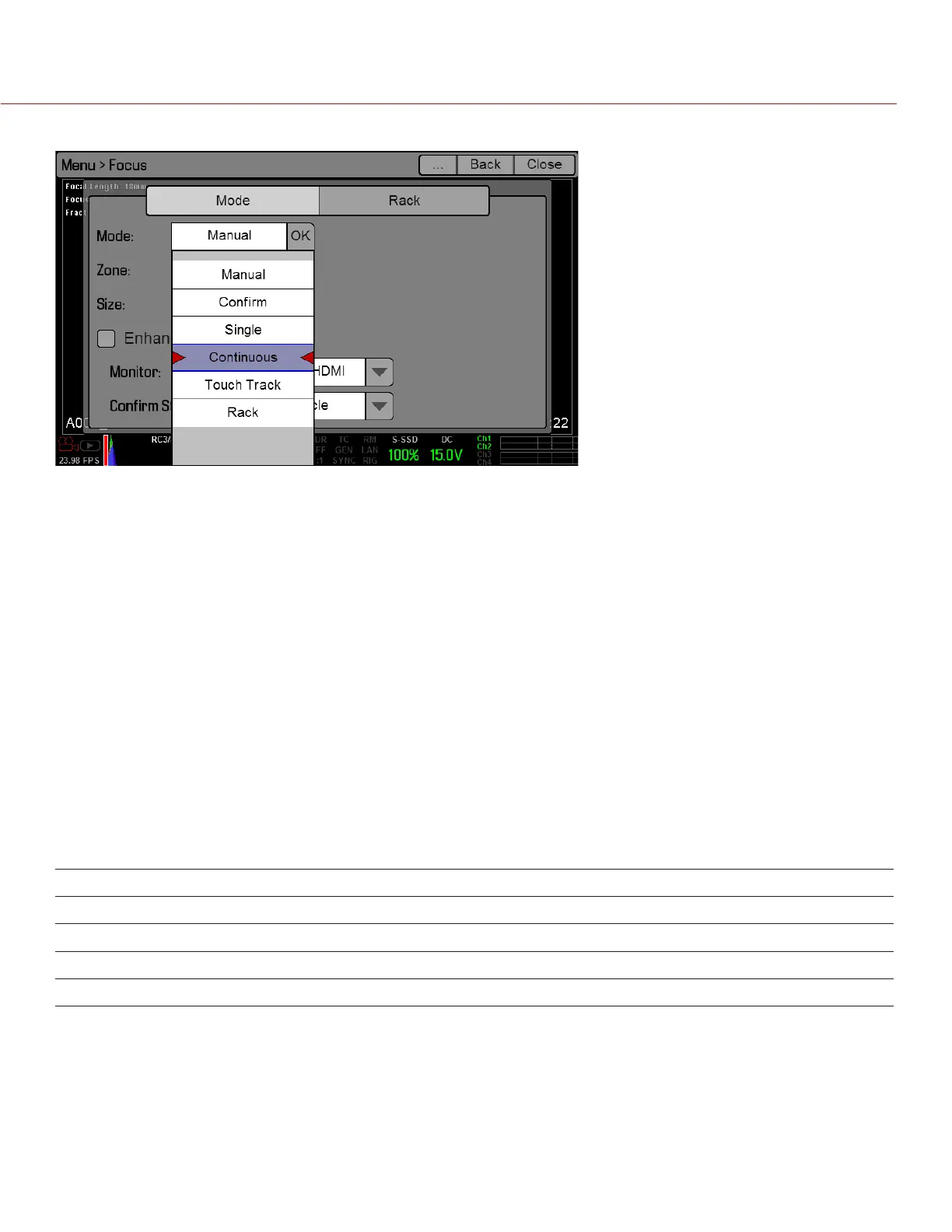

In Single, Continuous, and Touch Track modes, a single target displays on the screen that indicates where the
image will be in focus. In Rack mode, multiple targets display on the screen to indicate the different areas be-
tween which the camera will rack focus.
Press the key mapped to AF Mode: Cycle (REDMOTE/DSMC SIDE HANDLE button A default) to cycle through
the Focus Mode options in order.
Performance of autofocus may be reduced under the following conditions:
Subject is dark or distant.
Inadequate contrast between the subject and background.
Scene has reflective highlights.
Subject is backlit.
Inadequate surface contrast/detail inside the window.
NOTE: Edge mode can be used for additional assistance in these conditions. For more information about Edge
mode, go to “Edge” on page 47.
ZONES
Available options are Center and Spot (default).
Both the Center and Spot targets change color to indicate the focus state of the objects in the targets.
TARGET COLOR DESCRIPTION
Blue Camera is focusing
Red Objects are out of focus
Yellow Objects are almost in focus
Green Objects are in focus
CENTER
Provides a large target square for focus that is centered in the recording area.
SPOT
Provides a target for precise focus that you can move around the recording area.
