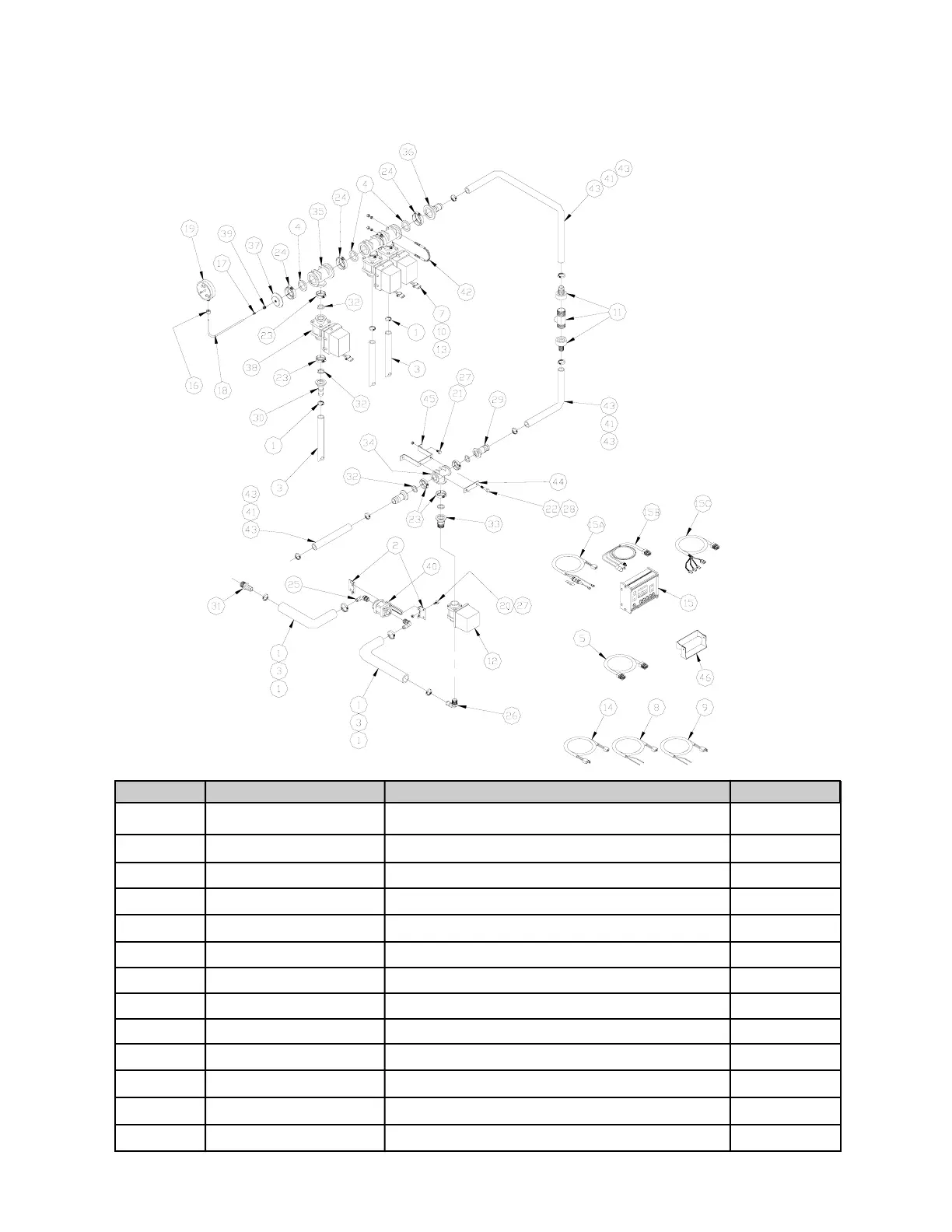

680 High Clearance Sprayer - Parts & Schematics
Section F
1 #16J Clamp, 1” Stainless 1
2 004556 Mount, 2 1/2” Valve 1
3 011612 Hose, 1” 150# Black Rubber 1
4 150G Gasket, 2” Flanged Valves 1
5 38528 Mounting Bracket for 844 Console 1
6 48491 Cable Assembly; Extension 1
7 30034 Connector, Terminal 18 Ga. Male 1
8 38403-12-COMMAT Cable, Console Power 1
9 45988-1 Cable, Signal, Valve End 1
10 38044 Connector, Body Shroud 3 Pin 1
11 38410ARC11/4RUB Flowmeter, 1 1/4 844 Controller 1
12 38550-344AE2RL1 Valve, Regulating Valve Assembly 1” 1
13 39000 Cable Seal, Green 1
Item# Part # Description Quantity
Description: TeeJet
®
844 Controller, Banjo
®
Valves (Optional)
23
Section F
Ref-006260C
