Redball 680 - Hydraulic Boom Control Routing

11-01
680 High Clearance Sprayer - Parts & Schematics
Section F

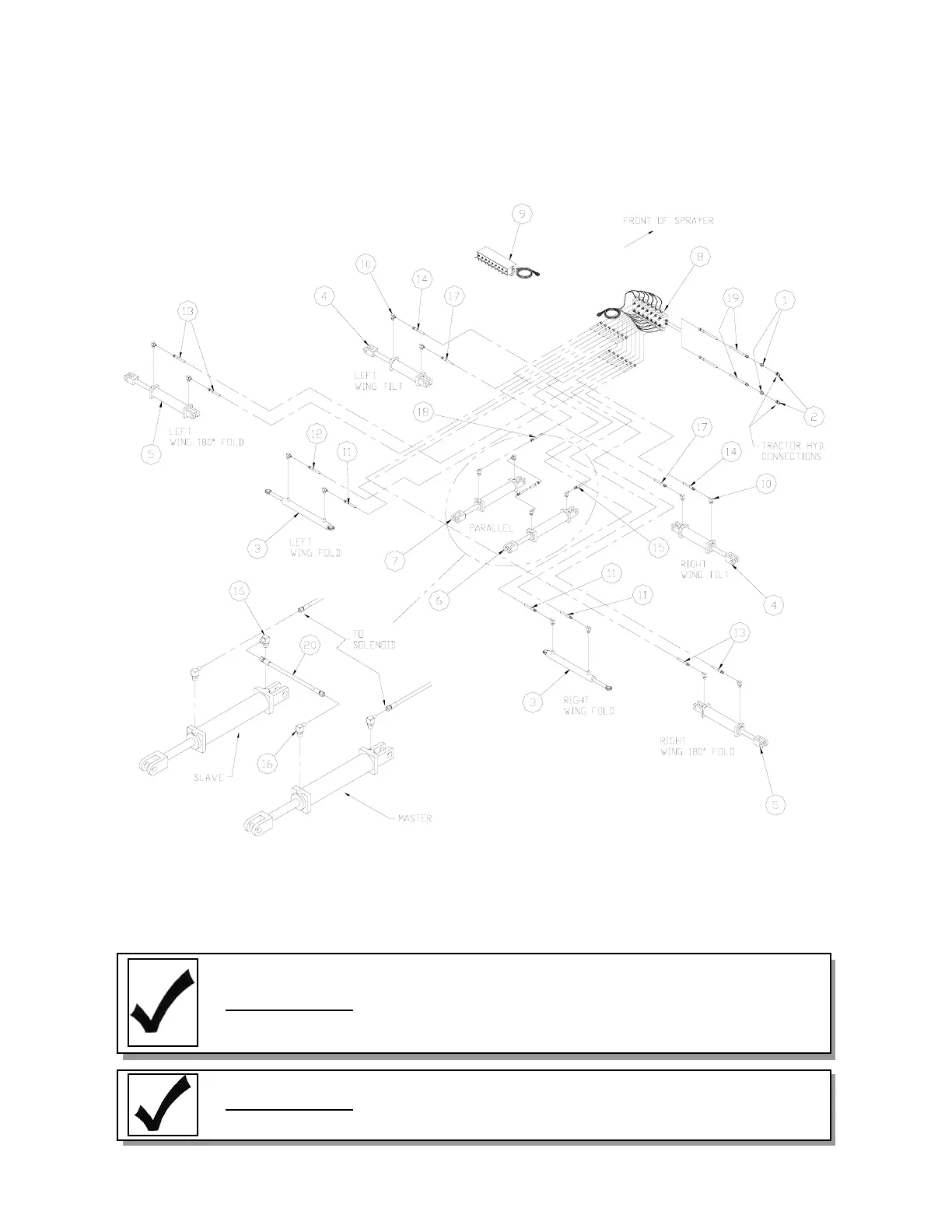

Description: Hydraulic Boom Control Routing
43
Section F
Ref-006261C
Failure to plumb the parallel cylinders correctly may cause
damage to the Henschen Suspension.
IMPORTANT
Hoses conducting oil to extend the cylinder connect to the
top solenoid ports. Hoses conducting oil to retract the
cylinder connect to the bottom solenoid ports.
IMPORT
ANT
