11-01
680 High Clearance Sprayer - Parts & Schematics
Section F

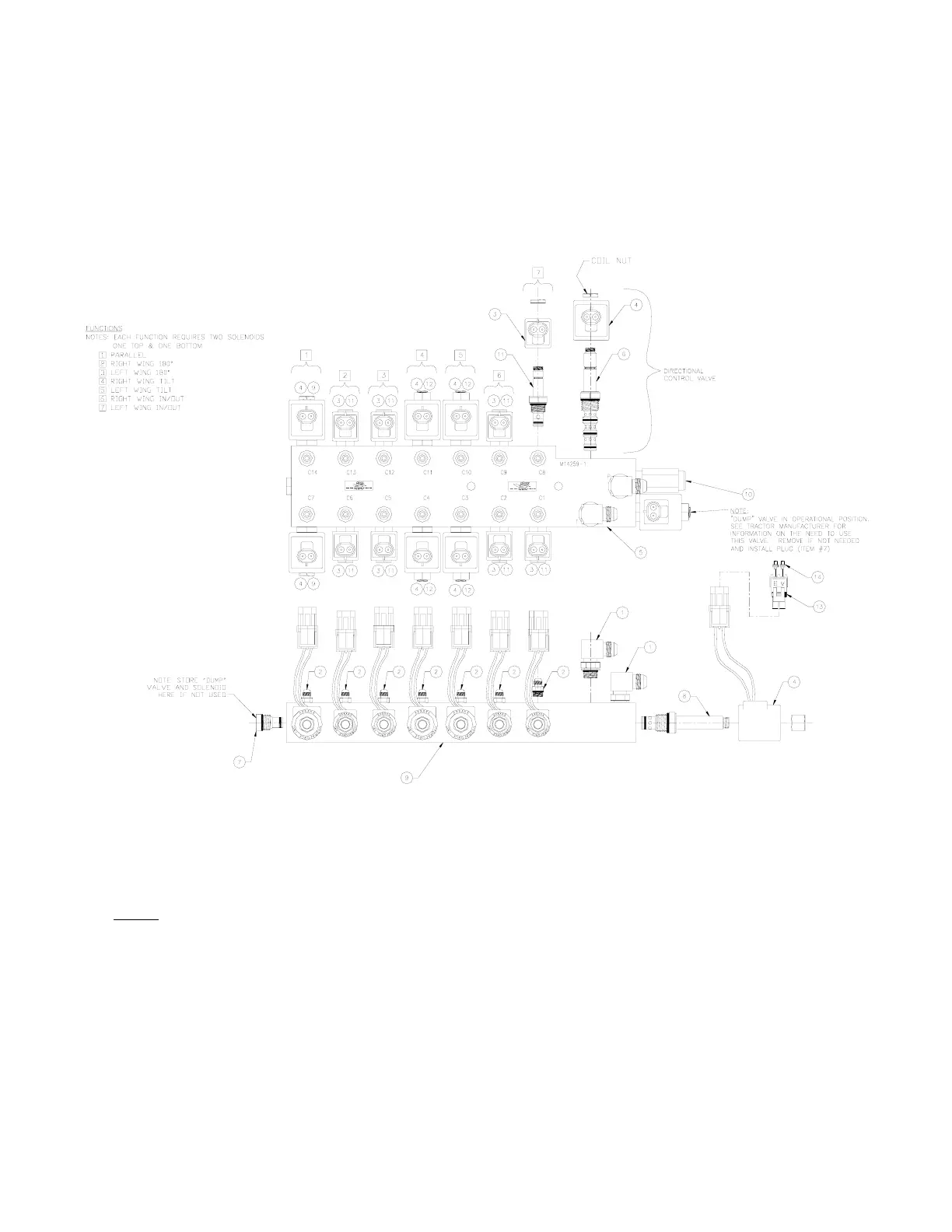

Description: Hydraulic Valve Breakdown
45
Section F
Ref-007678
Notes:
1. Torque Items 9, 11, & 12 to 20 Ft Lbs.
2. Torque Item 6, 7, 8 & 10 to 25 Ft Lbs.
3. Torque Item 1 & 2 to 13 Ft. Lbs.
4. Torque Coil Nuts to 5 Ft Lbs.
5. Relief Valve (Item 10) is Preset.
