Redball 680 - Hydraulic Switch Box Breakdown

11-01
680 High Clearance Sprayer - Parts & Schematics
Section F

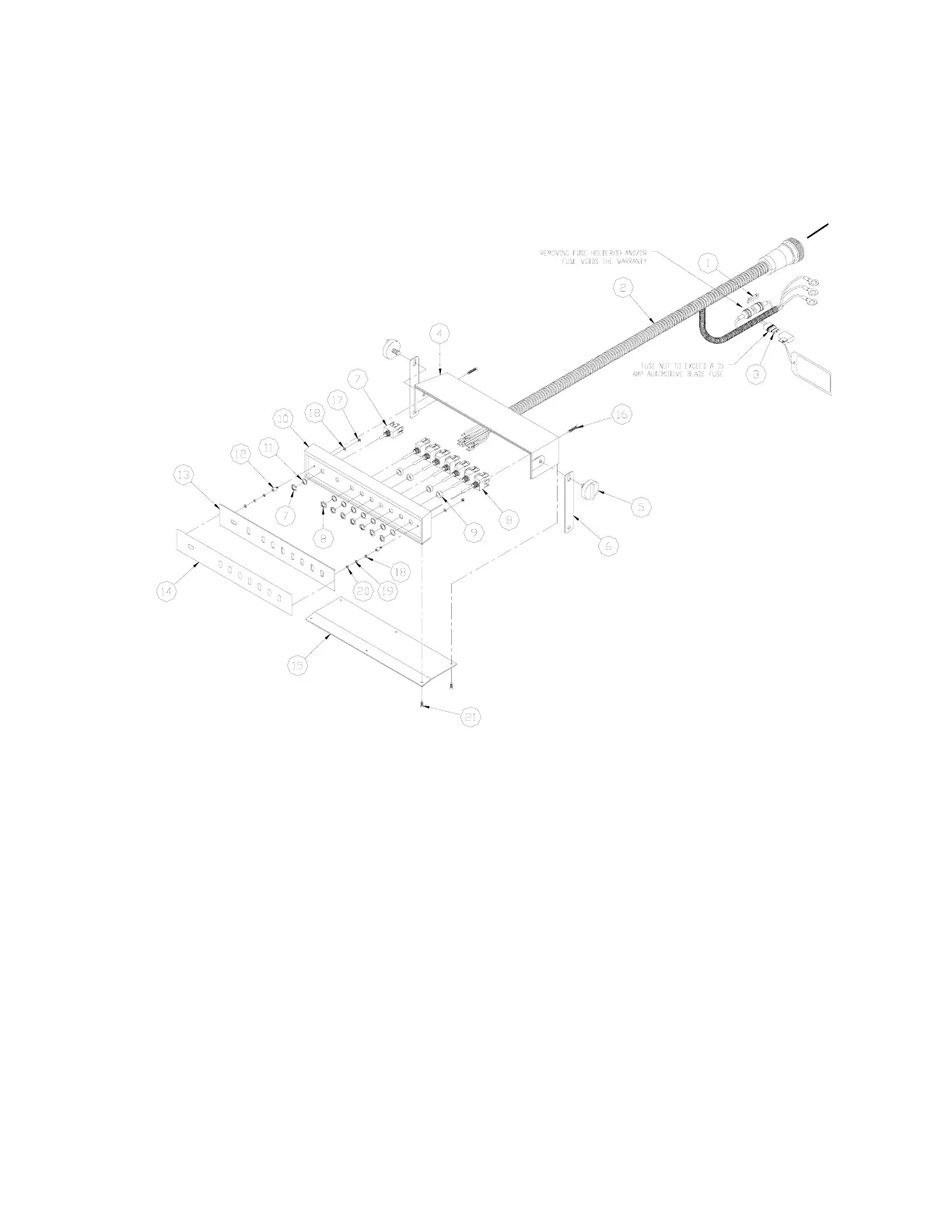

Description: Hydraulic Switch Box Breakdown
47
Section F
Ref-007682
Notes: 1. Pin Location noted on male and female connector plug
Pin Number and function
1 - Battery (-)
2 - Right Wing Down
3 - Right Wing Up
4 - Right Fold Out
5 - Right Fold In
6 - Right 180° Fold Out
7 - Right 180° Fold In
8 - Parallel Down
9 - Parallel Up
10 - Left 180° Fold Out
11 - Left 180° Fold In
12 - Left Wing Fold Out
13 - Left Wing Fold In
14 - Left Wing Down
15 - Left Wing Up
16 - Dump Valve
17 - Shuttle Valve
18 - Compressor Power
19 - Right Foam Marker
20 - Left Foam Marker
Pin Function
See Notes
