Reer Mosaic Series User Manual

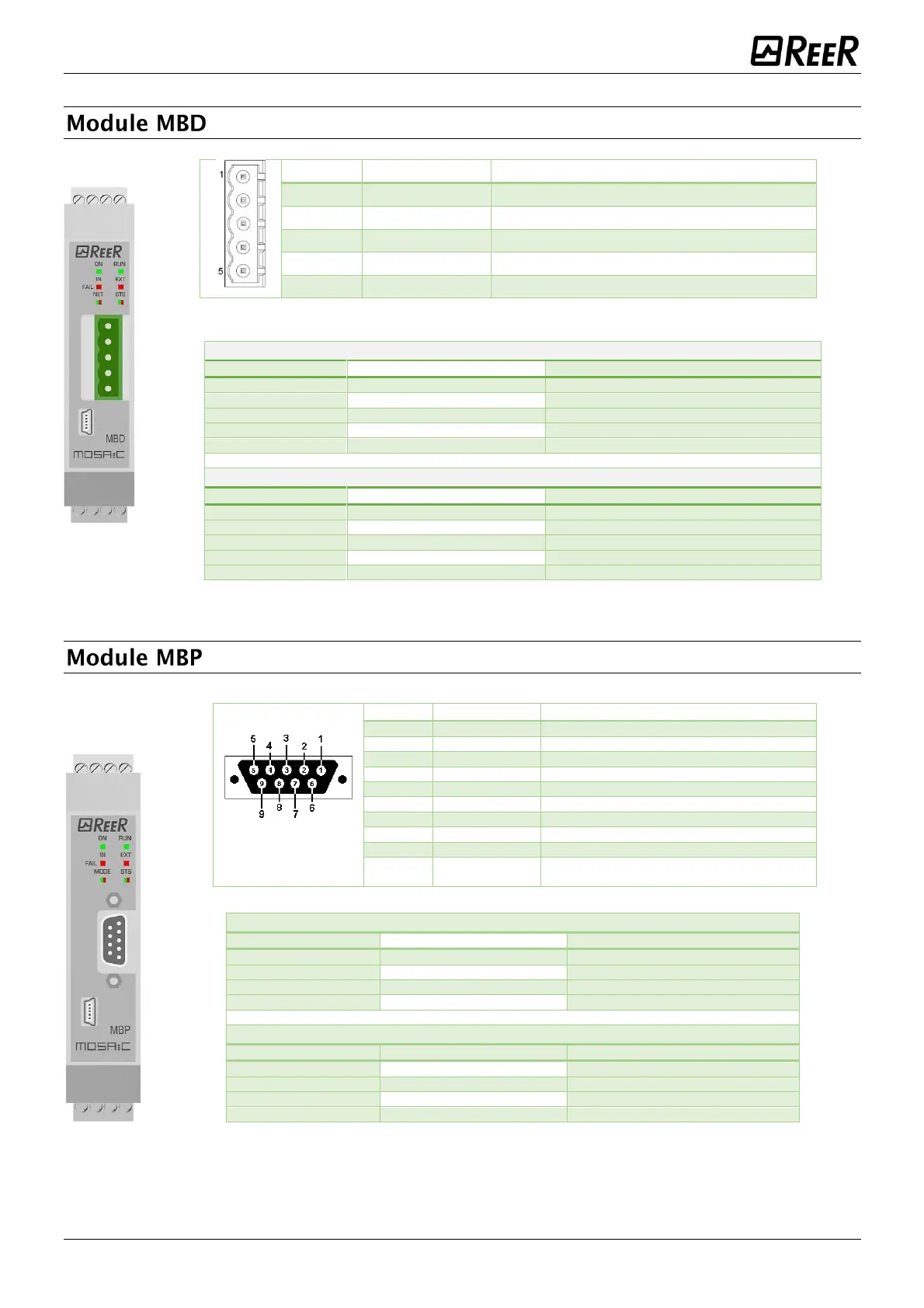

Mosaic fieldbus modules
8540801 • 01/02/2017 • Rev.15 11
(front view)
Pin
Signal
Description
1
V-
Negative BUS power supply
2
CAN_L
CAN low bus line
3
SHIELD
Cable shield
4
CAN_H
CAN high bus line
5
V+
Positive BUS power supply
LED NET
STATUS
INDICATION
DESCRIPTION
GREEN
On-line connected
1 or more connections established
GREEN blinking (1Hz)
On-line non connected
No connection established
RED
Critical connection error
MBD unable to communicate
RED blinking (1Hz)
Time-out of 1 or more connection
One or more I/O device in time-out
GREEN/RED alternate
TEST
MBD in Test
LED STS
STATUS
INDICATION
DESCRIPTION
GREEN
-
Normal operation
GREEN blinking (1Hz)
Pending
Configuration incomplete, MBD waiting for activation
RED
Fatal error
One or more unrecoverable errors detected
RED blinking (1Hz)
Error
One or more recoverable errors detected
GREEN/RED alternate
TEST
MBD in Test
DB9 – female
(front view)
Pin
Signal
Description
1
-
-
2
-
-
3
B-line
Positive RxD/TxD, RS485 level
4
RTS
Request to send
5
GND Bus
0VDC (isolated)
6
5V
+5VDC (isolated/short circuit protected)
7
-
-
8
A-line
Negative RxD/TxD, RS485 level
9
-
-
Housing
Cable shield
Internally connected to the Anybus protective earth via
cable shield filters according to the PROFIBUS standard.
LED MODE
STATUS
INDICATION
DESCRIPTION
GREEN
On-line
data exchange
GREEN blinking
On-line
CLEAR
RED blinking (1 flash)
Parameterization error
rif. IEC 61158-6
RED blinking (2 flashes)
PROFIBUS configuration error
configuration data MASTER or MBP wrong
LED STS
STATUS
INDICATION
DESCRIPTION
OFF
MBP not initialized
Status SETUP o NW_INIT
GREEN
Initialized
End of initialization NW_INIT
GREEN blinking
Initialized with diagnostic active
EXTENDED DIAGNOSTIC bit set
RED
Exception error
EXCEPTION status

Reer Mosaic Series Specifications

General

Type	Control Unit
Series	Mosaic
Manufacturer	Reer
Input Voltage	24 VDC
Output Voltage	24 VDC
Protection Degree	IP20
