Reer Mosaic Series User Manual

Mosaic fieldbus modules
8540801 • 01/02/2017 • Rev.15 12

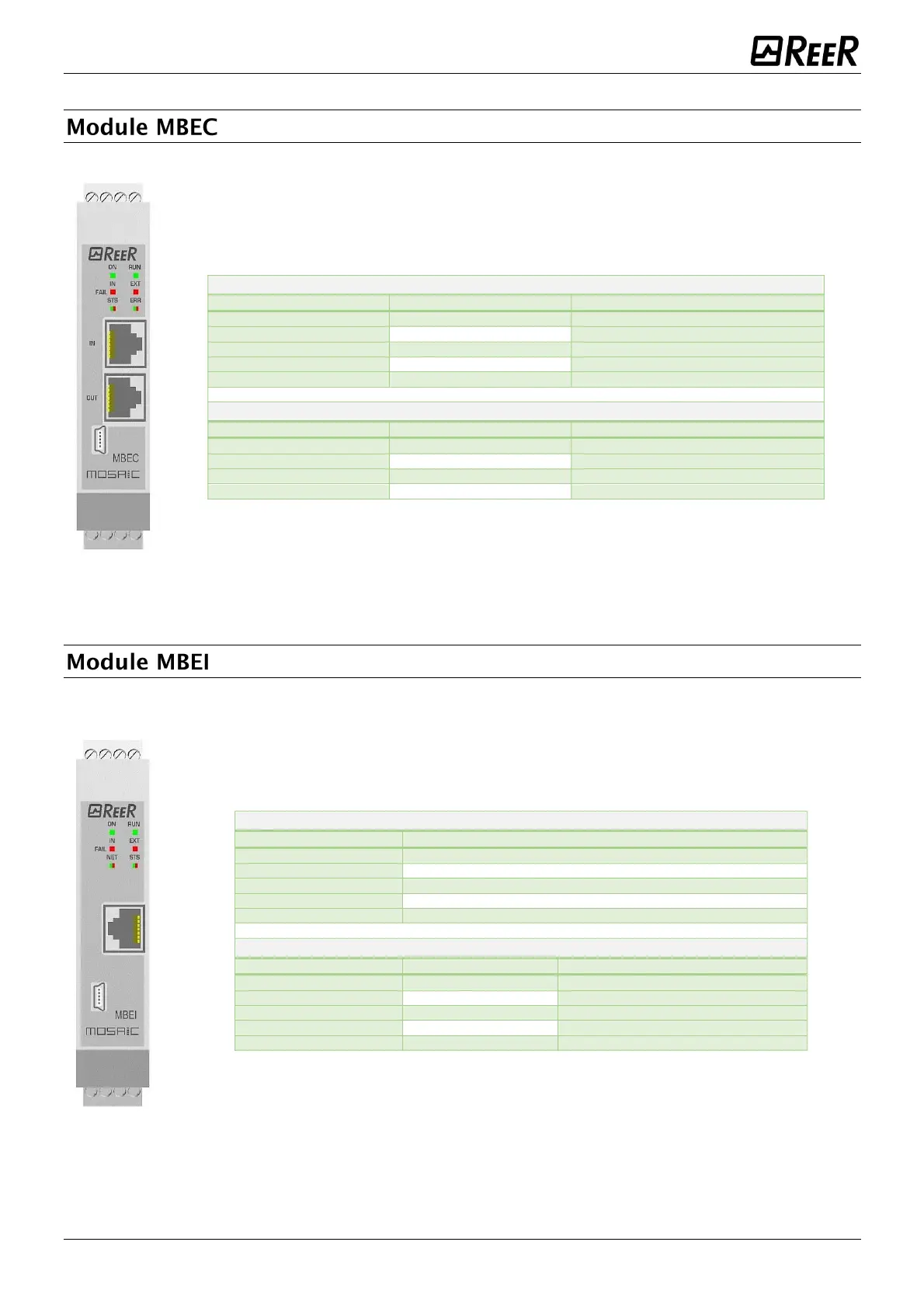

LED STS
STATUS
INDICATES
DESCRIPTION
OFF
INIT
INIT or no power
Green
OPERATIONAL
OPERATIONAL state
Green blinking
PRE-OPERATIONAL
PRE-OPERATIONAL state
Green blinking (1 flash)
SAFE-OPERATIONAL
SAFE-OPERATIONAL state
Red
(Fatal Event)
System locked
LED ERR
STATUS
INDICATES
DESCRIPTION
OFF
No error
No error or no power
RED blinking (1 flash)
Configuration not valid
Status change requested by master not possible
RED blinking (2 flashes)
Watchdog timeout
Synch manager watchdog timeout
Red
Controller fault
Anybus module in EXCEPTION state
LED NET
STATE
INDICATES/DESCRIPTION
OFF
No power or no IP address
GREEN
On-line, connected
GREEN blinking
On-line, not connected
RED
Duplicate IP address
RED blinking
Connection timeout
LED STS
STATE
INDICATES
DESCRIPTION
OFF
No power
-
GREEN
RUN state
-
GREEN blinking
Not configured
-
RED
Fatal error
One or more non-recoverable errors detected
RED blinking
Error
One or more recoverable errors detected

Reer Mosaic Series Specifications

General

Type	Control Unit
Series	Mosaic
Manufacturer	Reer
Input Voltage	24 VDC
Output Voltage	24 VDC
Protection Degree	IP20
