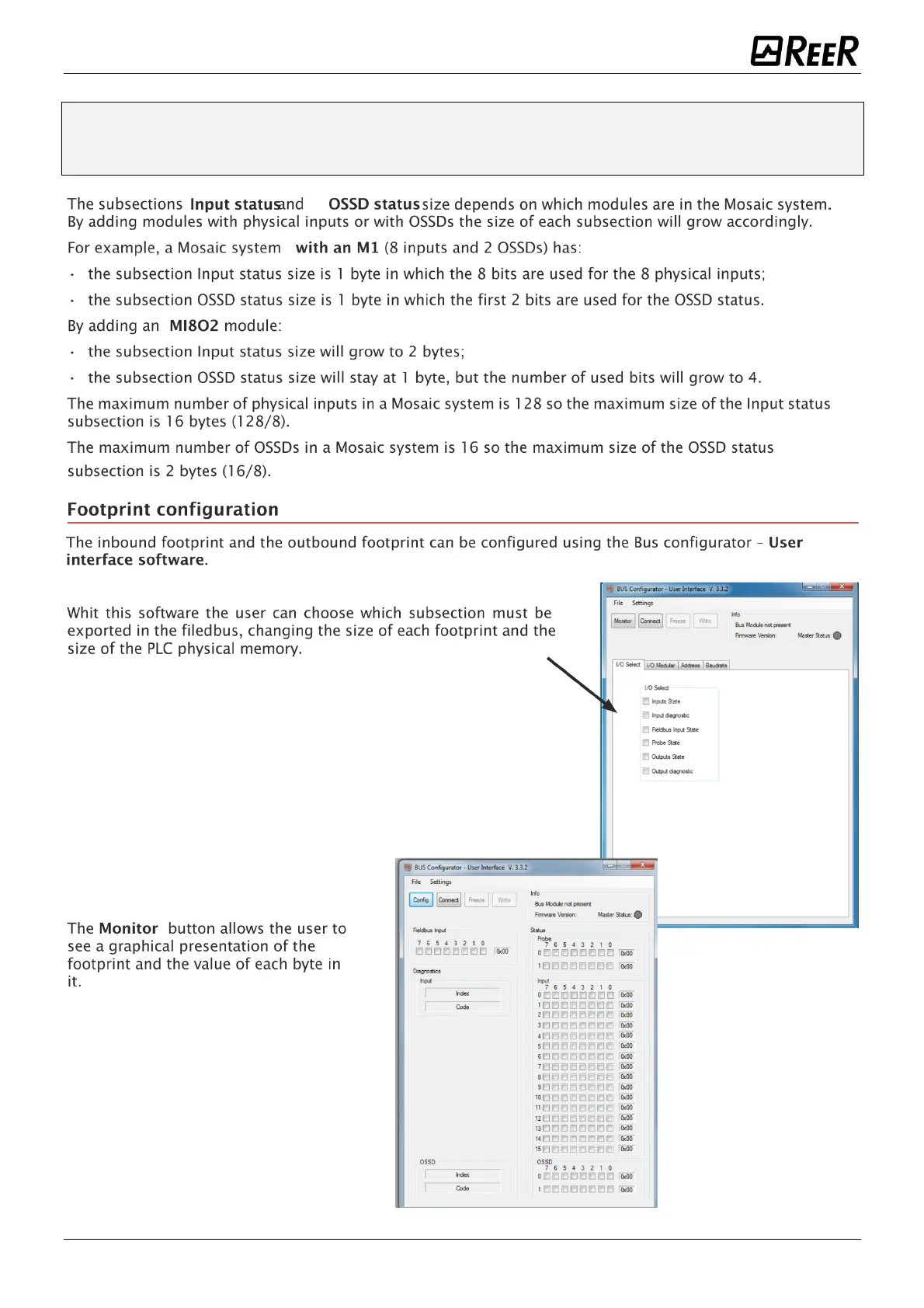

Mosaic fieldbus modules
8540801 • 01/02/2017 • Rev.15 5
If the Mosaic system includes a fieldbus module, the MSDesigner report will include a table
with the I/O index for all the inputs, fieldbus input, probe and safety outputs in the electric
circuit.
