Grandview® G800EC Gas Fireplace | 23
installation

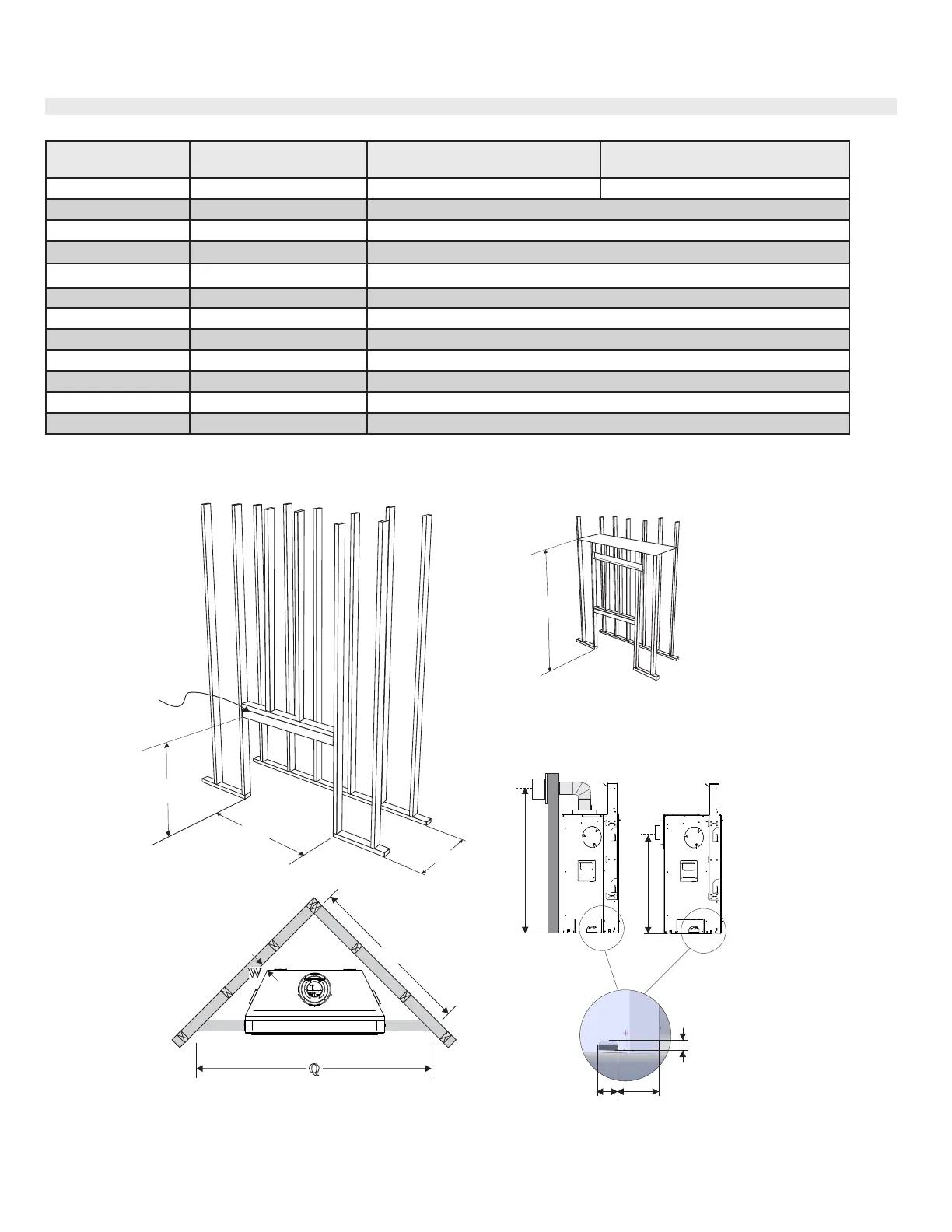

Cool Wall Application—Framing
Framing Dimensions Description Cool Wall Cool Wall
with Finishing Trim or Faceplate
M Framing Width 36-1/2" (927mm) 37-1/2" (952mm)
N* Framing Height 43" (940mm)
O Framing Depth 16-7/8" (427mm)
P Corner Facing Wall Width 42-1/2" (1035mm)
Q Corner Facing Wall Width 60" (1524mm)
R Framed Chase Ceiling Enclosure 80" (2032mm)
S (Rear Vent) Vent Centerline Height - Rear 29" (737mm)
S (Top Vent) Vent Centerline Height - Top 44" (1118mm)
T Gas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 6-3/8" (162mm)
V Gas Connection Width 3" (76mm)
W Clearance to Corner of Unit 2-3/4" (70mm)
* Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
Q
P
R
M
N
O
S
S
U
T
V
Combustible header
Top Vent
Rear Vent
W
Corner=Top Vent Only
IMPORTANT: Corner applications are vented from the top
only - rear venting cannot be used.
