Grandview® G800EC Gas Fireplace | 63
installation
Panel installation
09.17.19920-149
PANEL INSTALLATION
1
G800EC
08.29.19920-128
PANEL INSTALLATION
1
3.

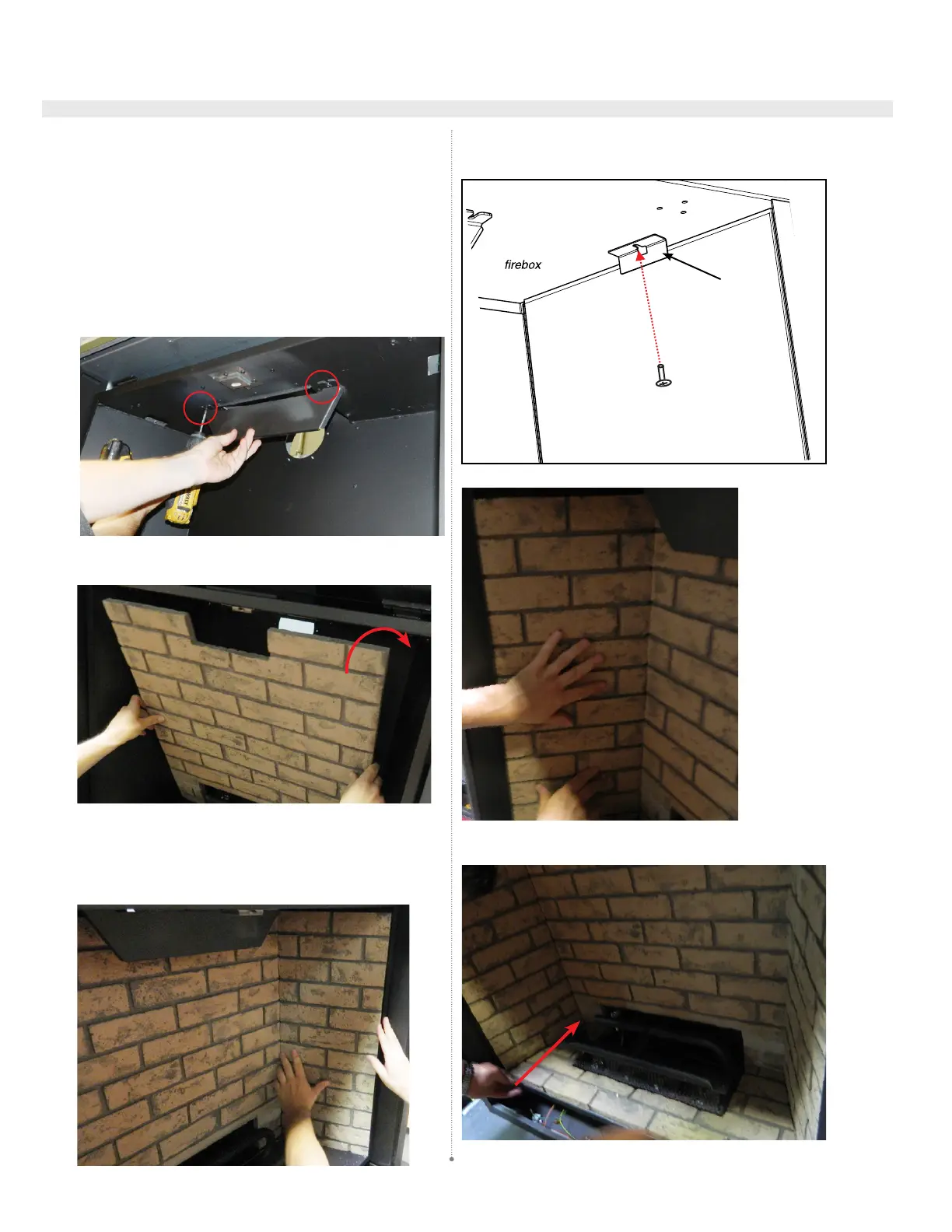

Install back panel carefully. Tilt panel forward from the top and rest
the bottom of the panel on the firebox floor. Tip top back until it also
rests on the firebox back wall.
4. Reinstall the baffle removed in Step 1.
6.
Install the right side panel—the angled corner should be located
facing the bottom rear of the fireplace when installing.
NOTE: Shorter row of bricks should be positioned at the bottom om
both back and side panels.
1. Remove screen and glass door, if installed.
2. Loosen two screws in locations shown below. Slide upper baffle
towards the back wall and then remove from unit.
7. With panel in position, secure in panel with the brick clip and tighten
one screw as shown below.
8 . Repeat Steps 5-7 on the left side.
9. Slide the bottom panel carefully underneath the burner and push to
the back until it contacts the back panel.
Brick Clip
Panel
Inside top of
5.
Loosen screws and remove panel clips.
10. Reinstall upper baffle.
• Black enamel panels must be inspected for scratches and dimples
prior to installation. All claims are to be recorded at this time. Claims
for damage after installation will not receive consideration.
• Black enamel panels will discolor a little during normal operation.
This is normal and should not be considered a defect.
*All hand and fingerprints MUST be cleaned off with a soft cloth.
Use an ammonia based cleaner (ie. glass cleaner) to remove any
fingerprints before applying heat to the unit.
Failure to do this will result in burn stains on panels which you
will be unable to remove. Not protected by product warranty.
*Applicable to all panels
*Applicable to all panels
