26 | Grandview® G800EC Gas Fireplace
installation
Clean Front Installation (non-Cool Wall)—Mantel Clearances

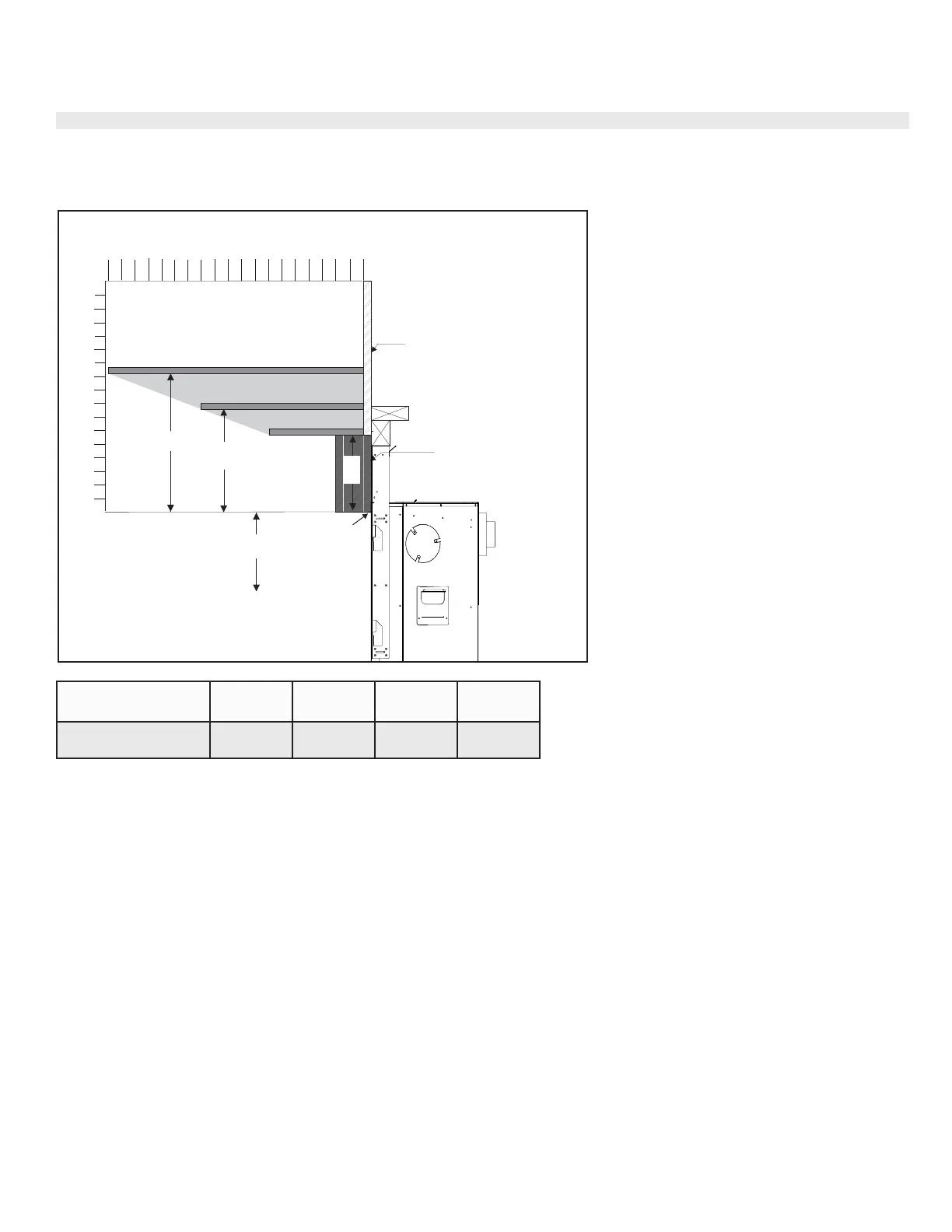

Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in the
Diagram on the right.
Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.
Mantel Clearances
G800EC
A B C D
From Top of Fireplace
Opening
32-1/2"
(826mm)
20-1/2"
(597mm)
15-1/4"
(470mm)
11-1/2"
(292mm)
Combustible
Mantel Clearances
2
0
12
6
4
810
0
Top of
Fireplace
Opening
19"
7"
12"
A
B
14
To Floor
12
24
Inches
C
D
Non-Combustible
Material Min.11-1/2"H (292mm)
16
18
Material Min. 2"D (51mm)
