Regency G800EC - Outside Finish-Finishing Trim Install

36 | Grandview® G800EC Gas Fireplace
installation
08.28.19920-151
FINISHING TRIM INSTALLATION
1
The Finishing Tr im can be installed to upgrade the look of the fi replace
or to cover facing material edges.
1.
Lay the parts on a soft surface painted side down.
2.
Insert the tab on the left side into the slot on the top.
3.
Fold the tabs down to secure.
4.
Insert the tab on the top into the slot on the right.
5.
Fold the tab down to secure.
Right Side

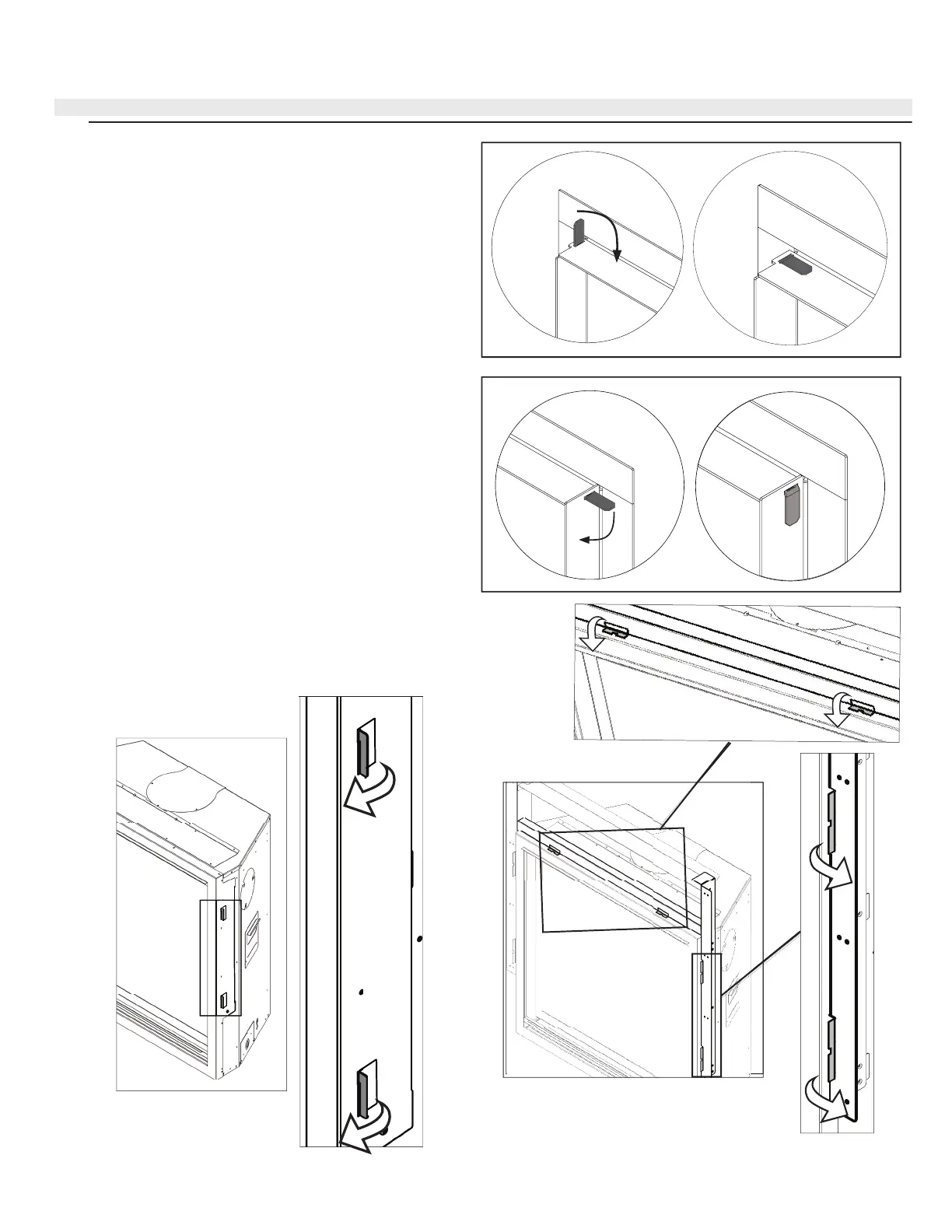

Finishing Trim Install Instructions:
1. Bend the four tabs on the outer box front forward. There are two tabs per side.
These tabs are the mounts for the faceplate or fi nishing trim.
2. Bend the two tabs on the top nailing fl ange down.
3. Bend the tabs on the left and right nailing fl anges forward. There are two tabs
per nailing fl ange.
Top and Side Nailing Flange Tabs
See section: N
AILING
F
LANGE
I
NSTALL FOR
N
AILING
F
LANGE
D
EPTH SETTINGS
.
Left Side
Finishing Trim Install
Top and Side Nailing Flange Tabs
