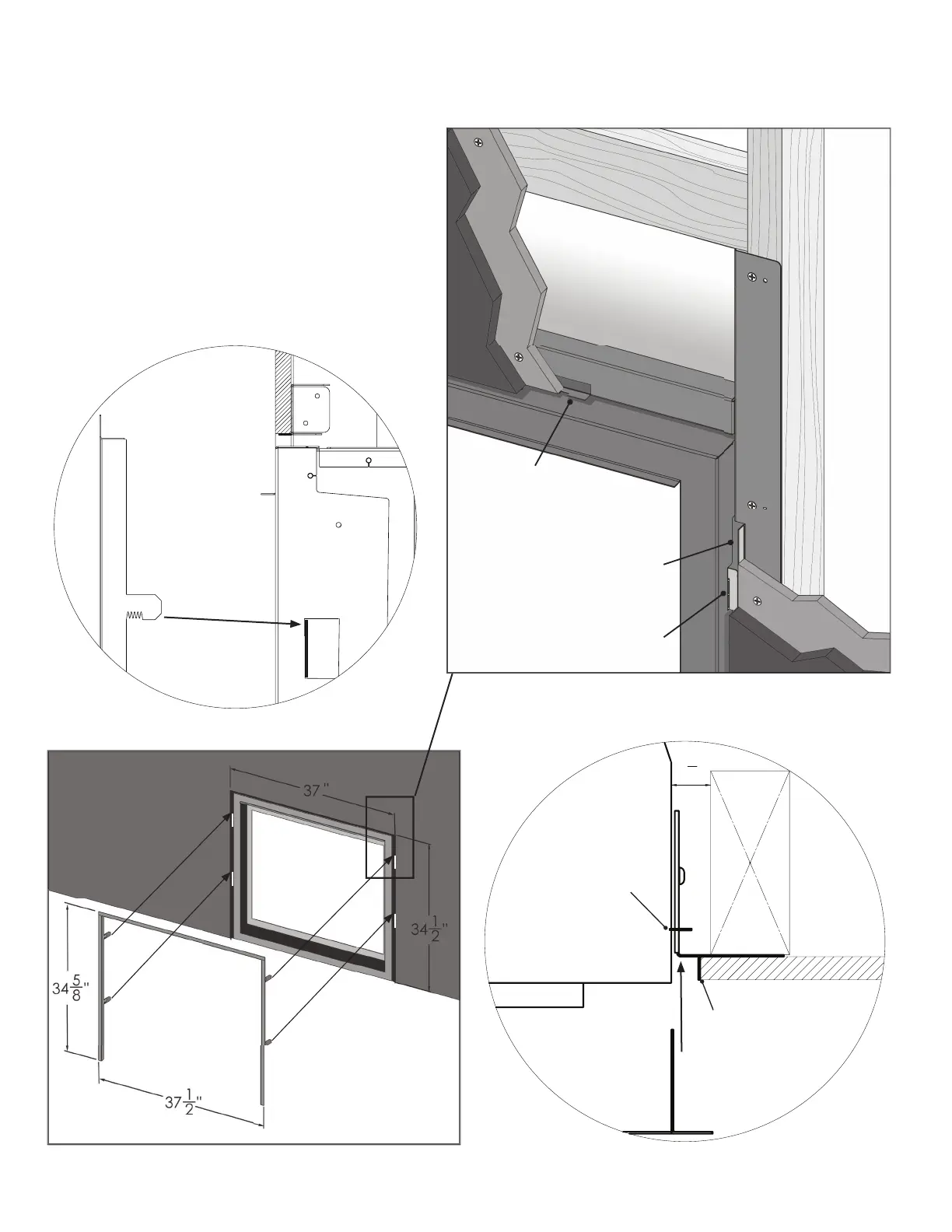

FINISHING TRIM INSTALLATION
2
Nailing Flange Tabs
folded forward
Mounting Tabs folded
forward
Finishing Tr im - Finishing:
A 1/2” gap must be maintained on the sides and top of the fi replace
to allow the Finishing Trim to be installed and removed. The fi nishing
trim has adjustment for material to protrude up to 1/4” past the front
of the fi replace.
Top Nailing
Flange Tabs
folded down
3
4
"
Finishing Trim
Top View
Mounting Tab
Folded forward
Nailing Flange
folded forward
Install the faceplate by resting the arms on the fi nishing trim on the
top of the mounting tabs.
Adjust left and right to center the fi nishing trim.
Critical Finishing Gap
Side View
