Log set installation
06.17.19920-127
LOG SET INSTALLATION
Page 1 of 4
Read the instructions belo w carefull y and refer to the diagrams.
If logs are broken do not use the unit until they are replaced.
Broken logs can interfere with the pilot operation.
The G800EC log set (#761-930/761-932) contains the following
pieces
1
6
8
2
3
4
9
11
5
10
12
7
1Rear Log
2Middle Left Log
3Middle Right Log
4Center Left Cross Log
5Front Bottom 'Y' Log
6 Left Rear Log
7Right Cross Log
8Middle Front
9 Left Log Piece
10 Right Log Piece
11 Left Front Log Piece
12 Right Front Log Piece
Must also purchase (#761-938) Log
Grate and Ember package separate-
ly. The kit contains:
Log Grate
3/4" Ginger glass
Vermiculite
Black/White Embers
Log Support Plates
NOTE: Panels (bric k, steel, or enamel) must be installed
prior to installing the log set.
1. Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not fo rce into position when
installing.
2. Install the log grate—secure with 2 screws in locations show below.
3. Install the supplied crystals over the ember lights underneath the
burner as shown. Place vermiculite and embers on top of the glass.
Do not place any media on the burner.

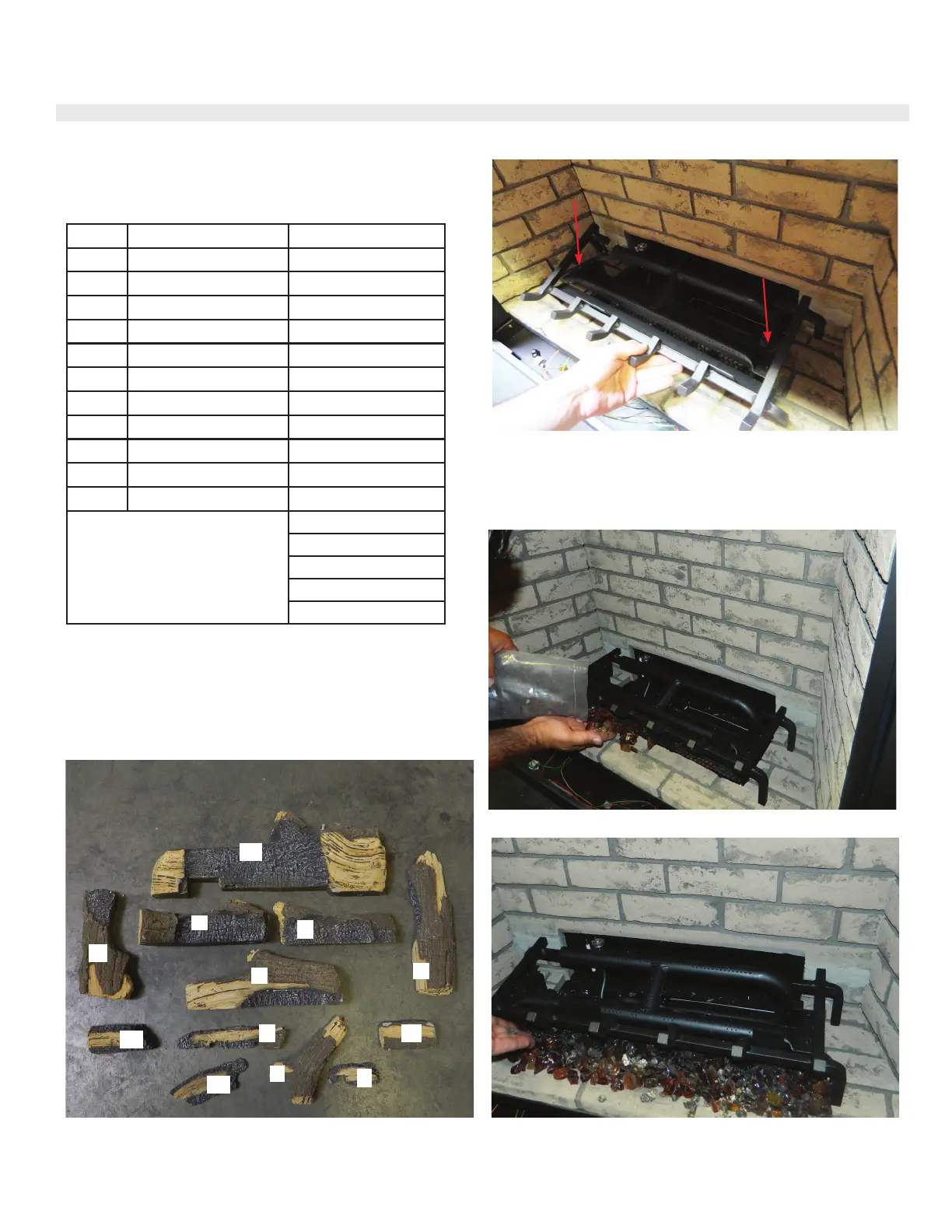

Diagram 1—Log ID
Diagram 2—Log Grate Install
Diagram 3—Install Glass
Diagram 4—Install Vermiculite + Lava
