Regency G800EC - Page 65

Grandview® G800EC Gas Fireplace | 65
installation
06.17.19920-127
LOG SET INSTALLATION
Page 2 of 4
4. Install 2 log support plates onto the burner with 2 screws each as
shown.
5.
6. Install Log 2 on left log support plate.
Line up the pins on the plate
with the pin hole on the log.
7. Install Log 3 on right log support plate. Line up the pins
on the plate
with the pin hole on the log.

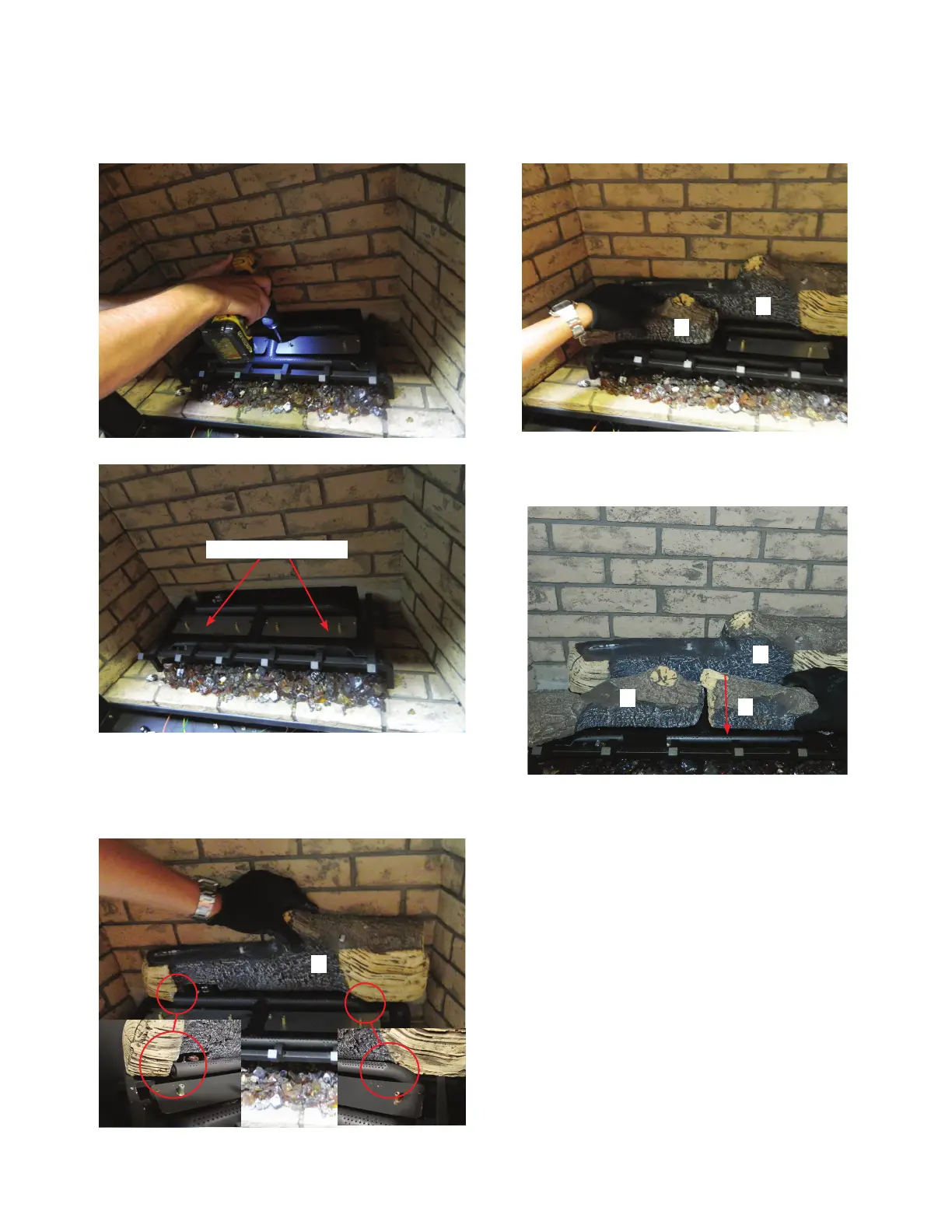

Diagram 5—Install Log support plates
Diagram 9—Install Log 2
Diagram 10—Install Log 3
Diagram 6—Log support plates installed
Diagram 7—Log 1 installation
1
1
2
2
3
1
Log Support Plates
Place Log 1 onto the grate, behind the rear of burner. Ensure left cut
out of log butts up against end of burner tube and right end of log
butts up against curve of burner. Final position of the log should be
pulled forward and to the right while contacting the end and curved
parts of the burner.
