Regency G800EC - Page 66

66 | Grandview® G800EC Gas Fireplace
installation
06.17.19920-127
LOG SET INSTALLATION
Page 3 of 4
8. Install Log 4 diagonally across Log 2. Rest Log 4 in the notch out
on Log 2 as shown.
9. Install Log 5, one end will rest in the notch out on Log 3—the 'Y' end
will rest on the 3rd prong from the right on the log grate.
10. Install Log 6 on the left side of Log 1. Line up the pin on Log 1
with the pin hole on Log 6—the opposite end of Log 6 will rest
in the notch in Log 4.
11. Install Log 7 on the right side as shown. The pin hole on the under-
side of Log 7 should land on the pin of Log 1.
12. Install Log 8 at the front of the log grate. The cutouts in Log 8
should rest in the 4th + 5th prong from the right of the log grate.
13. Install Log 9 to the right of Log 5. The cutout in Log 9 will rest in
the 2nd prong from the right on the log grate.

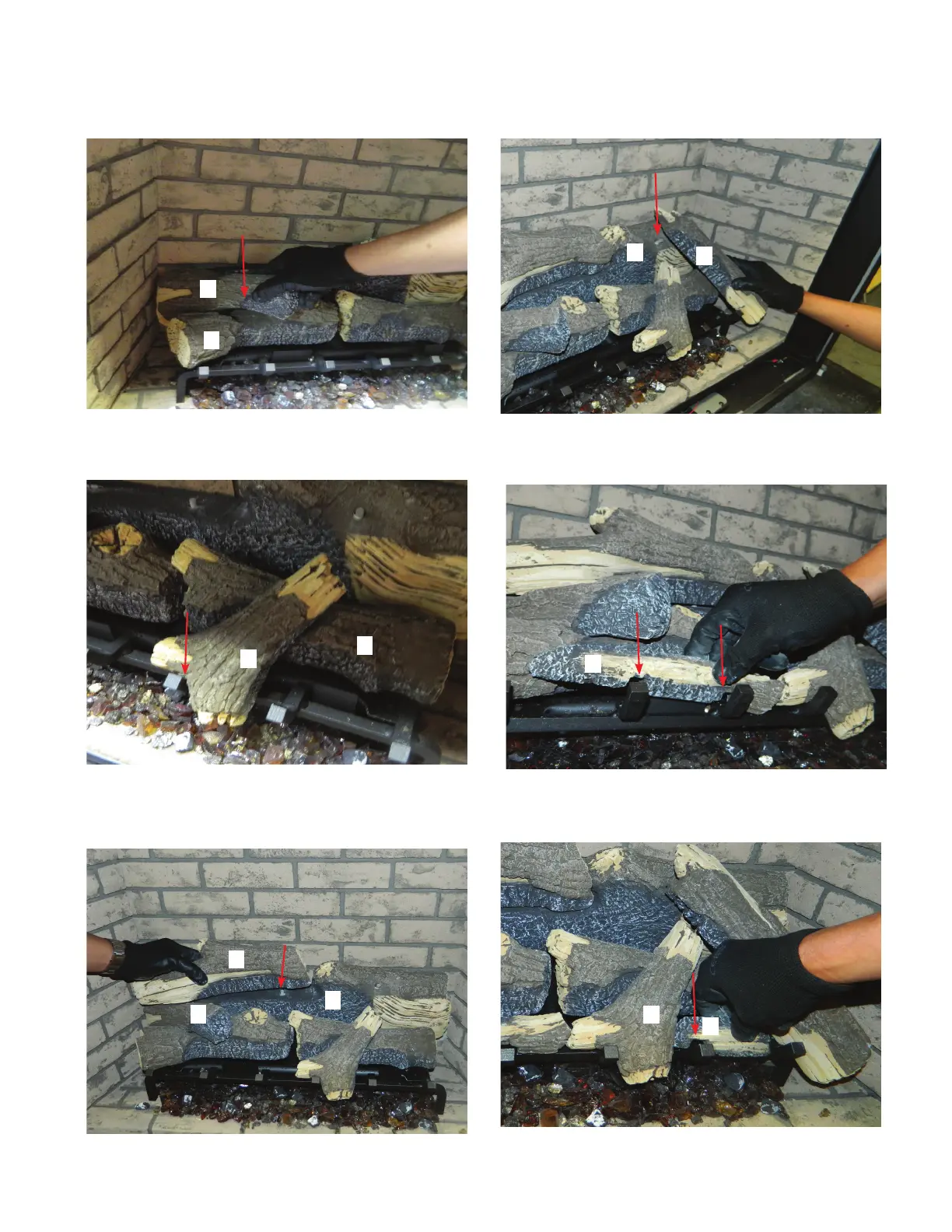

Diagram 11—Install Log 4
Diagram 14—Install Log 7
Diagram 12—Install Log 5
Diagram 15—Install Log 8
Diagram 16—Install Log 9
Diagram 13—Install Log 6
4
7
1
2
5
6
1
3
8
9
4
5
The bottom of Log 7
will rest on the log grate.
