06.17.19920-127
LOG SET INSTALLATION
Page 4 of 4
1
2
3
5
8
11 10
12
9
4
6
7
14. Install Log 10 as shown. The fl at bottom will rest on the fi rebox
fl oor and the opposite end will rest on the 3rd prong from the left.
15. Install Log 11 to the left of the log grate on the fi rebox fl oor as shown.
16. Install Log 12 on the fi rebox fl oor—slide under Log 7 as shown.
17. Test fi re to ensure proper light off (make sure fl ame fl ows smoothly).
If there is any fl ame hesitation, check that area for any blockage
of the burner ports.

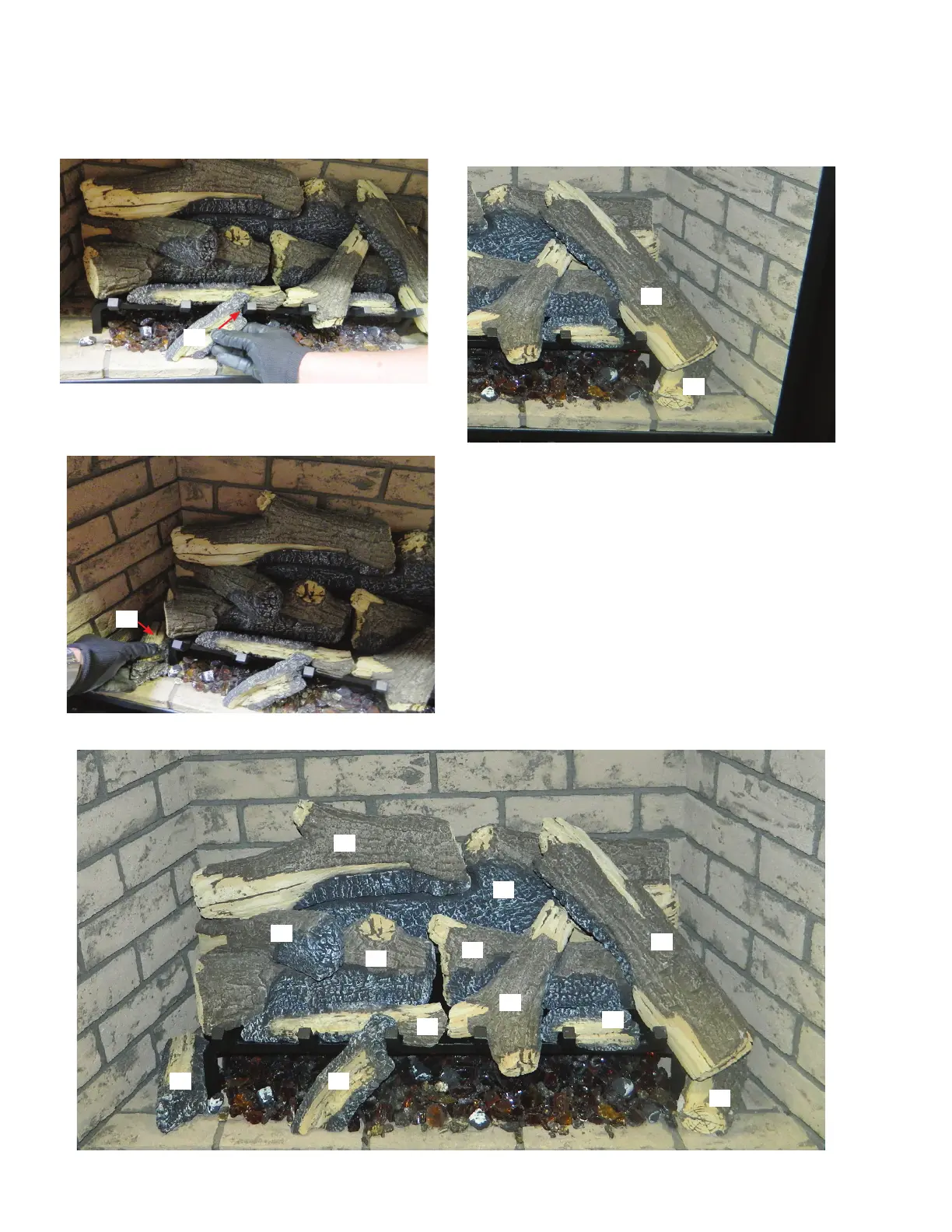

Diagram 17—Install Log 10
Diagram 18—Install Log 11
Diagram 20—Final Installation
Diagram 19—Install Log 12
10
12
7
11
