Regency G800EC - Horizontal Terminations Two (2) 90°Elbows; Horizontal Terminations; Three (3) 90 O Elbows

Grandview® G800EC Gas Fireplace | 51
installation
V1
H1
H
V

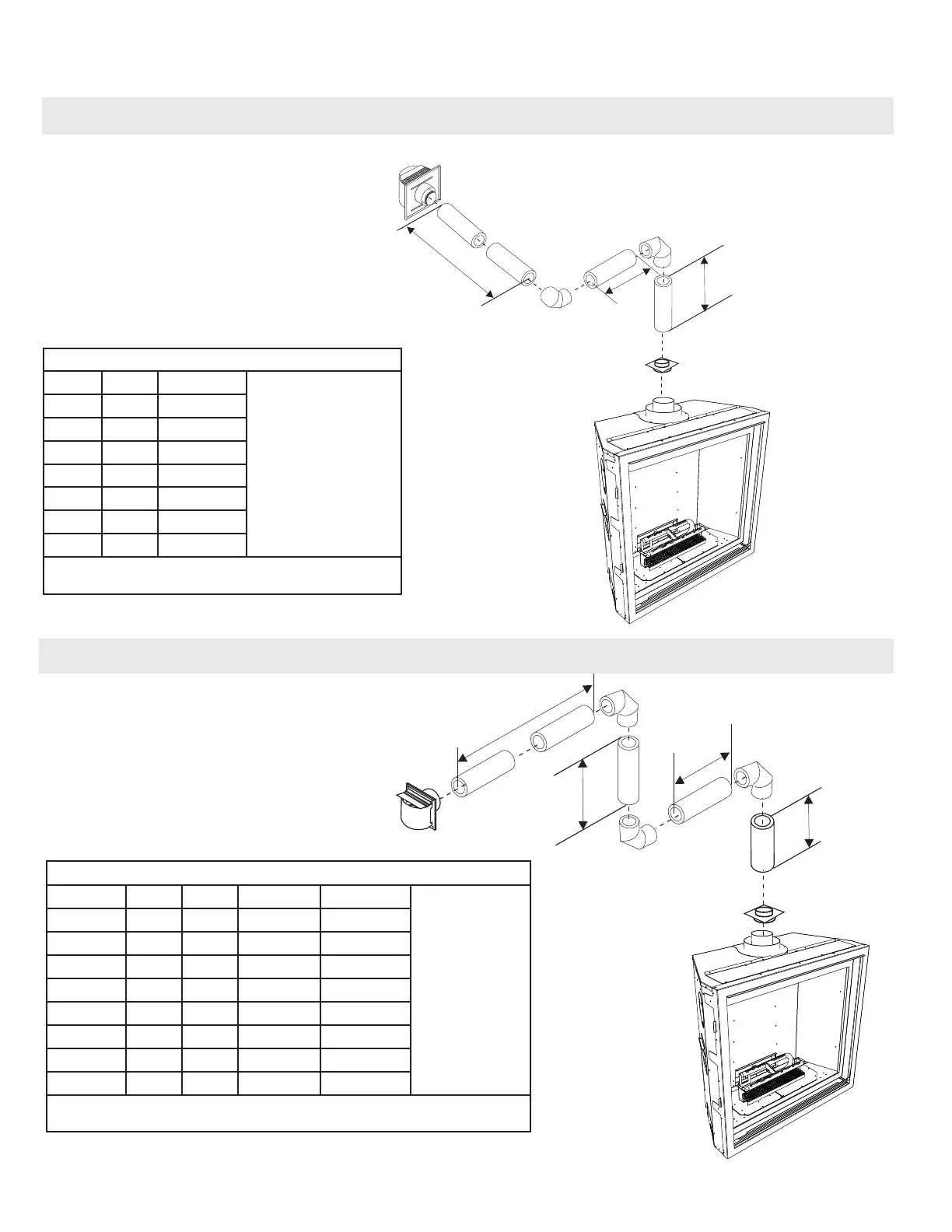

Horizontal terminations
Two (2) 90°Elbows
H
H1
V
One 90
o
elbow = Two 45
o
elbows.
Option V H + H1
With these options,
maximum total pipe length
is 30 feet with minimum
of 6 feet total vertical
and maximum 8 feet total
horizontal.
Please note minimum 1
foot between 90
o
elbows
is required.
A) 0' Min. 2' Max.
B) 1' Min. 3' Max.
C) 2' Min. 4' Max.
D) 3' Min. 5' Max.
E) 4' Min. 6' Max.
F) 5' Min. 7' Max.
G) 6' Min. 8' Max
No Vent Restrictor Installed
*Required when using rigid venting
Lengths do not include elbow indicated.
Horizontal terminations
Three (3) 90
o
Elbows
Lengths do not include elbow indicated.
One 90
o
elbow = Two 45
o
elbows.
Option V H V + V1 H + H1
With these options,
max. total pipe
length is 30 feet with
min. of 12 feet total
vertical and max. 9
feet total horizontal.
Please note min. 1
foot between 90
o
elbows is required.
A) 0' Min. 1' Max. 1' Min. 2' Max.
B) 1' Min. 2' Max. 3' Min. 3' Max.
C) 2' Min. 2' Max. 5' Min. 4' Max.
D) 3' Min. 2' Max. 7' Min. 5' Max.
E) 4' Min. 3 Max. 9' Min. 6' Max.
F) 5' Min. 4' Max. 10' Min. 7' Max.
G) 6' Min. 5' Max. 11' Min. 8' Max.
H) 7' Min. 6' Max. 12' Min. 9' Max.
No Vent Restrictor Installed
*Required when using rigid venting
*
*
