Regency G800EC - Venting Arrangements - Horizontal Termination; Rigid Pipe and FPI Direct Vent System (Flex)

Grandview® G800EC Gas Fireplace | 49
installation
16
2
2
0
0
12
12
6
6
18
4
Minimum
Height
Requirement
4
14
8
8
10
10 14 16
18 20
Vertical Height (Feet)
Horizontal (Feet)
44" (1118mm)
Set #1 (2" open)
No Restrictor
Venting Arrangements - Horizontal Termination
Rigid pipe and FPI direct vent system (flex)
(Propane & Natural Gas)

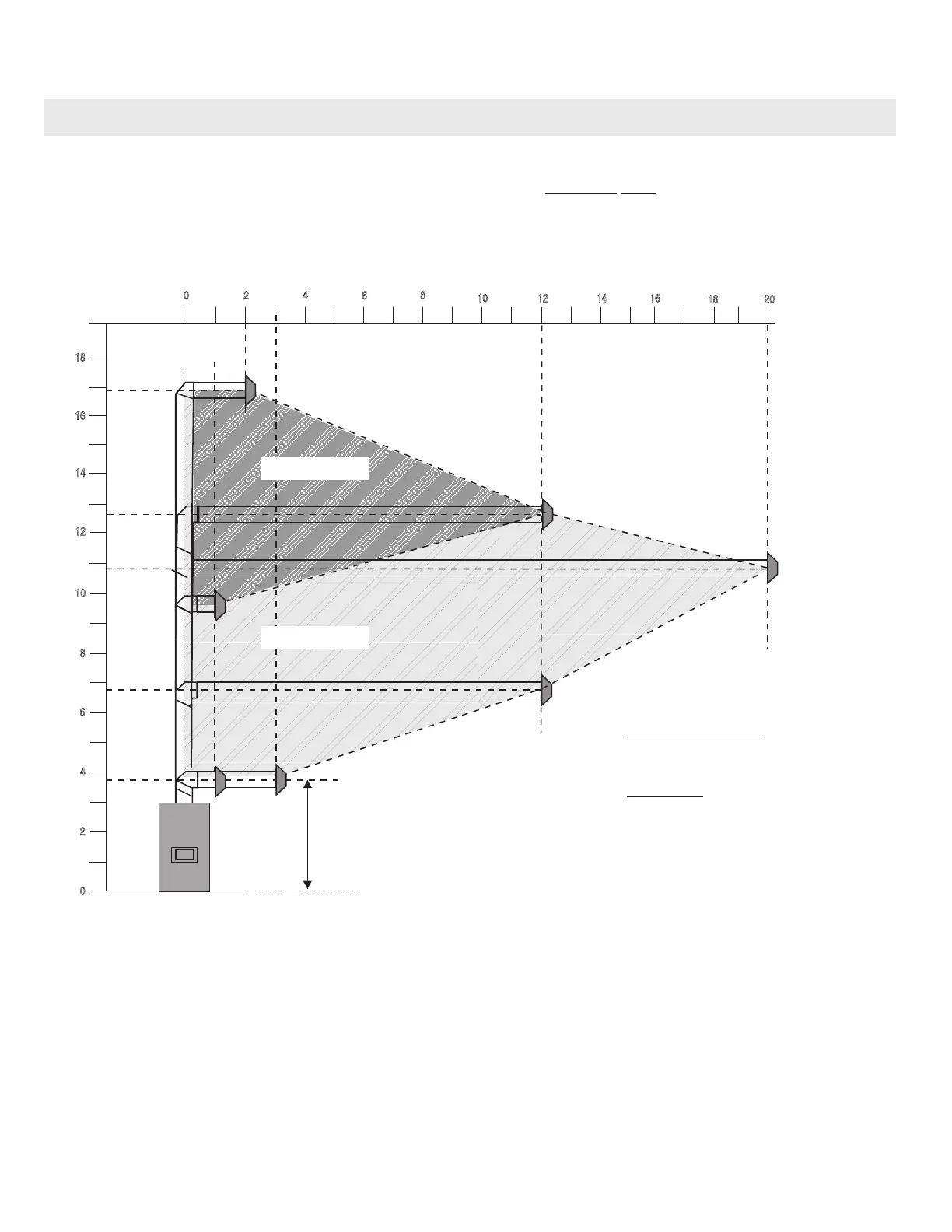

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90
o
elbow (two 45
o
elbows equal one 90
o
elbow).
Note: Must use optional rigid pipe adaptor (Part # 510-994) when using Rigid Pipe venting systems.
All Rigid Pipe Systems
4" inner diameter
6-5/8" outer diameter
FPI Flex Vent
4" inner diameter
6-7/8" outer diameter
• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through a wall.
A vent guard should be used
whenever the termination is lower
than the specified minimum or as
per local codes.
Note: FPI Direct Vent Flex System Part
#:946-513 (2 foot), 946-515 (4 foot)
and 946-516 (10 foot) are only ap-
proved for horizontal terminations.
