28 | Grandview® G800EC Gas Fireplace
installation

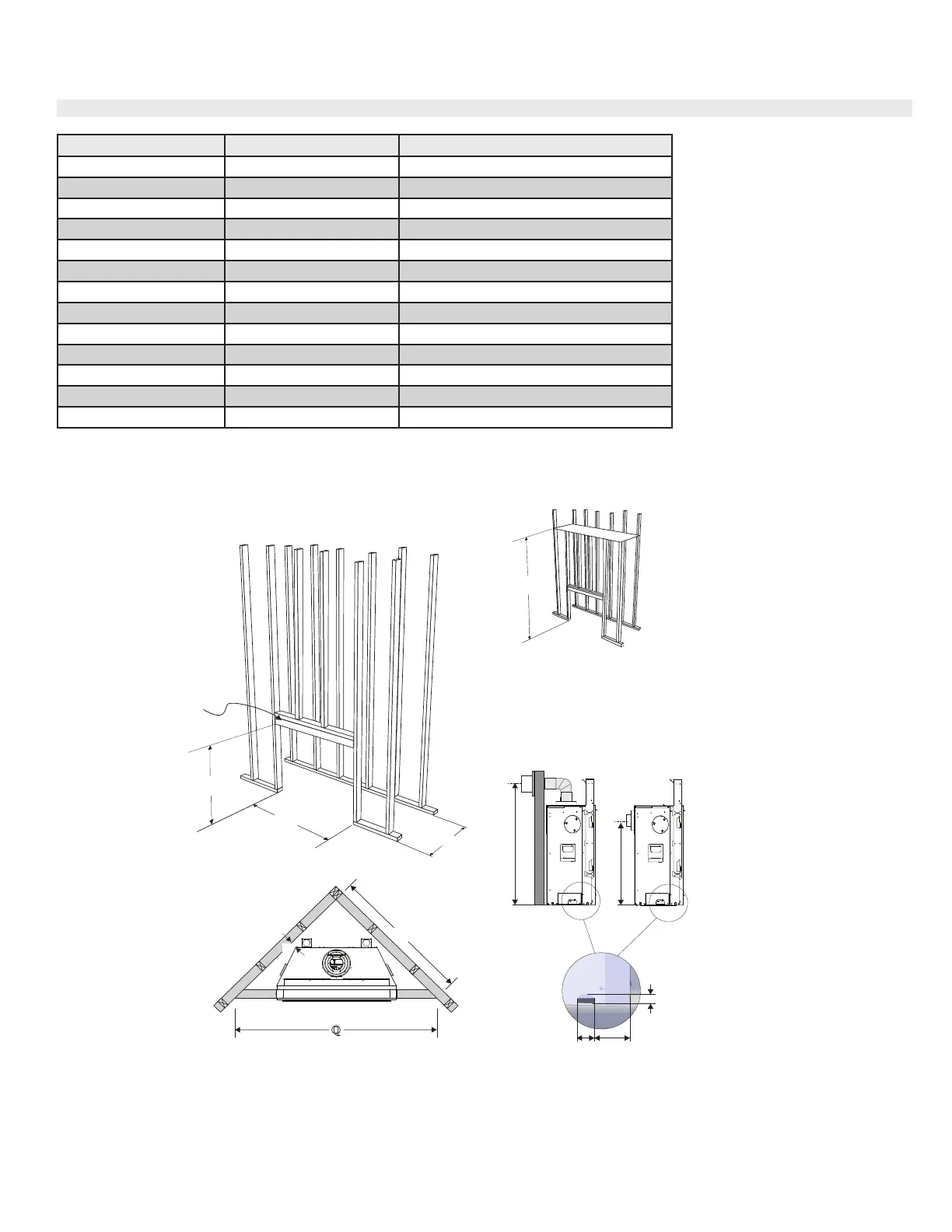

Clean Front Installation—Framing (non Cool Wall)
Framing Dimensions Description G800EC - Non Cool Wall
M Framing Width 37-1/2"(953mm)
N* Framing Height 43" (1092mm)
O (Top Vent) Framing Depth - Top Vent 19-1/4" (489mm)
P (Rear Vent) Corner Facing Wall Width 61-1/4" (1556mm)
Q (Rear Vent) Corner Facing Wall Width 86-5/8" (2200mm)
R Framed Chase Ceiling 62" (1575mm)
S (Rear Vent) Vent Centerline Height - Rear 29" (673mm)
S (Top Vent) Vent Centerline Height - Top 44" (1118mm)
T Gas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 6-3/8" (162mm)
V Gas Connection Width 3" (76mm)
W Clearance to corner of unit 2-3/4" (70mm)
Non-combustible Height 11-1/2" (292mm)
* Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.
S
S
U
T
V
Q
P
M
N
O
Combustible header
R
Top Vent
Rear Vent
W
Corner=Top Vent Only
IMPORTANT: Corner applications are vented from the top
only - rear venting cannot be used.
