42 | Grandview® G800EC Gas Fireplace
installation

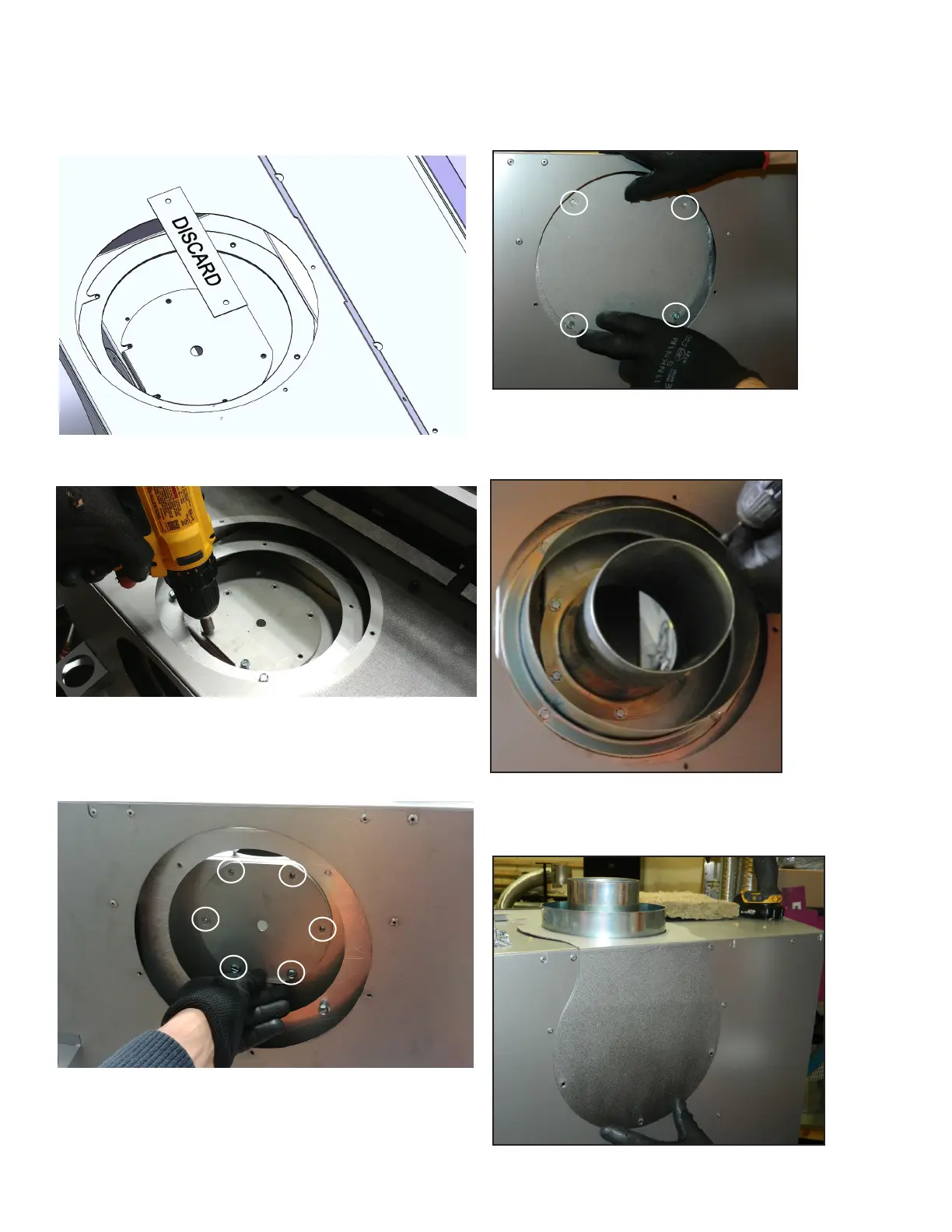

Diagram 6
Diagram 7
6. Remove the Exhaust Cover Plate marked: DISCARD, and discard plate.
7. Remove the four (4) top screws and loosen the two (2) bottom screws to
remove in the inner cover plate from the top of the unit.
8. Install the inner cover plate removed from the top in Step 7—to the back
of the unit. Slide the plate onto the two (2) loosened screws and tighten all
six (6) screws.
9. Install the top cover plate (removed from the top in Step 4) to the back of the
unit. Slide the plate onto the two (2) loosened screws and tighten all 4 screws.
10. Install inner collar (removed from the back in Step 3) to the top . Slide collar
onto loosened screws and tighten all six (6) additional screws.
11. Install outer collar (removed from the back in Step 2) to top of unit. Slide
collar onto two (2) loosened screws and tighten all four (4) additional screws.
12. Reinstall vent cover plate (removed in Step 1) with six (6) screws.
