46 | Grandview® G800EC Gas Fireplace
installation
Description
Simpson
Direct Vent Pro
®
Selkirk
Direct Temp™
American Metal
Products®
Amerivent Direct
Metal-Fab™
Sure Seal
Security
Secure- Vent®
ICC Excel
Direct
Olympia
Ventis DV*
Attic Insulation Shield 12” 46DVA-IS N/A@ FPI N/A4DAIS12 N/A SV4RSA N/AVDV-AIS04
Attic Insulation Shield - Cold Climates 36”
N/AN/A 4DAIS12 N/AN/A TM-4ASN/A
High Wind Vertical Cap 46DVA-VCH N/AN/A N/AN/A TM-4VTVDV-VCHW04
High Wind Horizontal Cap 46DVA-HC N/AN/A N/AN/A TM-4RHT N/A
Horizontal Square Te rmination Cap 46DVA-HC 4DT- HHC 4DHC 4DHT SV4CHC-1
TM-4HT/
TM-4DHT
VDV-HC04
Vertical Termination Cap 46DVA-VC 4DT- VT 4DVC 4DVT SV4CGV-1 TM-4SVT N /A
Storm Collar 46DVA-08A 4DT- SC 4DSC 4DSC SV4FC TM-SC VDV-SC04
Restrictor Disk N/AN/A N/AN/A N/ATM-4DSN/A
Extended Vertical Termination Cap N/AN/A N/AN/A N/AN/A N/A
Wall Firestop 46DVA-WFS N/AN/A N/AN/A TM-4TR VDV-FS04
Colinear Flex Connectors 46DVA-ADF N/AN/A N/AN/A N/AN/A
Adjustable Flashing 0/12-6/12 46DVA-F6 4DT- ST14 4D12S 4DST14 SV4STC14 TF-4FAVDV-F0406
Adjustable Flashing 6/12-12/12 46DVA-F12 4DT- ST36 4D36S 4DST36 SV4STC36 TF-4FB VDV-SSO
Vinyl Siding Standoff 46DVA-VSS 4DT- VS N/A4DVS SV4VS TM-VSS N/A
Vinyl Siding Shield Plate N/A4DT-VSP N/AN/A SV4VS N/AN/A
Snorkel Te rmination 14” 46DVA-SNK14 N/AN/A N/AN/A TM-4ST14 N/A
Snorkel Te rmination 36” N/AN/A N/AN/A N/ATM-4ST36 N/A
Basic Horizontal Te rmination Kit (A) Disc. 4DT- HKA 4DHTK2 4DHTKA SV-SHK TM4-HTK VDV-KW04
Horizontal Te rmination Kit (B) 46DVA-KHA
(Changed Components)
4DT- HKB 4DHTK1 4DHTKB SV-HK TM4-HTK VDV-K04
Vertical Termination Kit Disc. 4DT- VKC 4DHTK 4DHTK SV-FK N/AN/A
FPI
946-506/P Vent Guard (Optional) for AstroCap 946-205 Vinyl Siding Shield for Riser Vent Te rminal
510-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal
640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap
946-206 Vinyl Siding Standoff for AstroCap
Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).
Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination.
Never allow the vent to run downward - this could cause high temperatures and may present a possible fi re hazard.

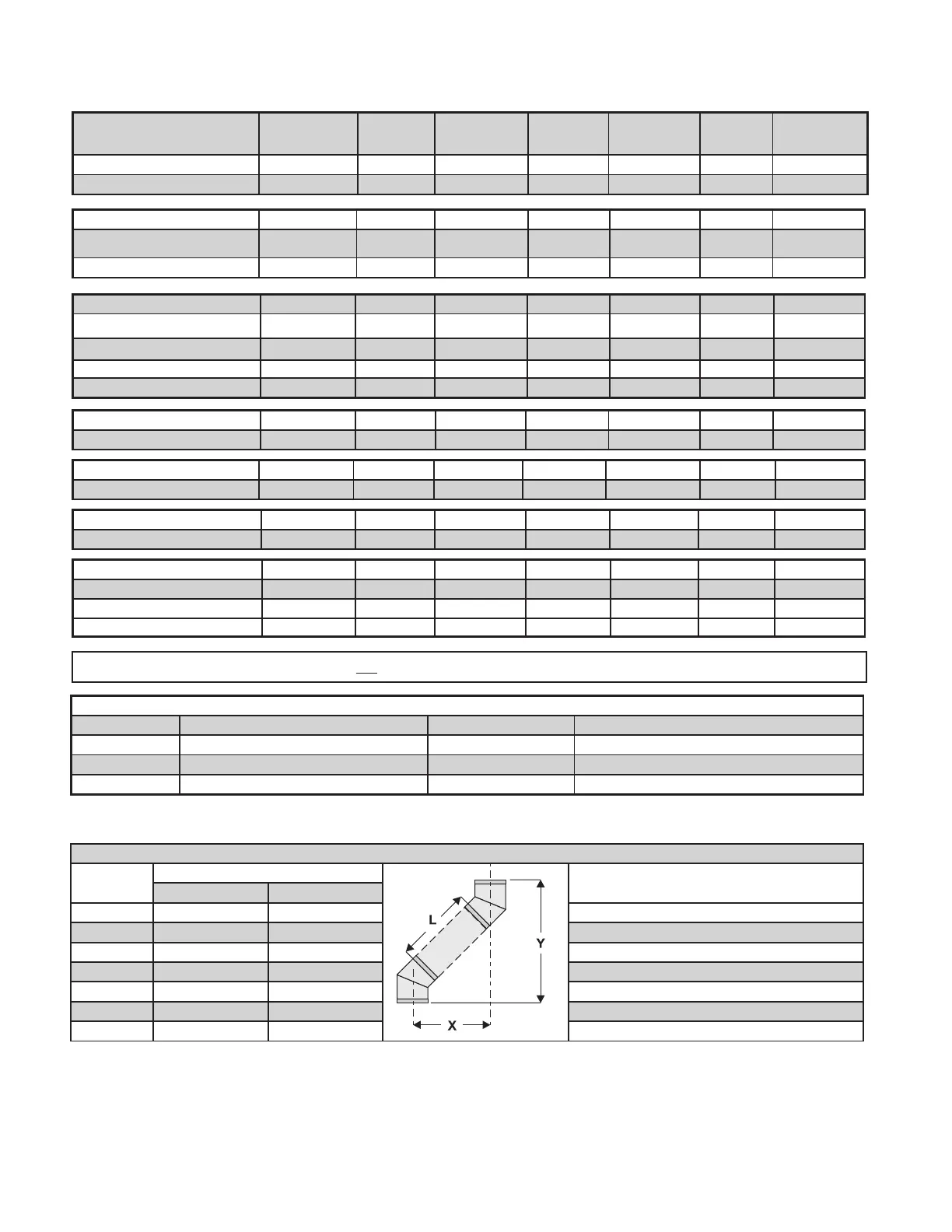

Offset Pipe Selection: Use this table to determine offset pipe lengths.
Pipe Length
(L)
4” x 6-5/8” Venting For specifi c instructions on venting components - visit the
manufacturers website listed below.
Run (X)Rise (Y)
0” (0mm) 4-7/8” (124mm) 13-7/8” (340mm) Simpson Direct Vent Pro: www.duravent.com
6” (152mm) 8” (203mm) 16-1/2” (419mm) Selkirk Direct-Temp: www.selkirkcorp.com
9” (229mm) 10-1/8” (257mm) 18-5/8” (473mm) American Metal Products: www.americanmetalproducts.com
12” (305mm) 12-1/4” (311mm) 20-3/4” (527mm) Metal-Fab Sure Seal: www.mtlfab.com
24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com
36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com
48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm)
* Olympia Ventis DV applicable for the following units only: B36XTE, B36XTCE, B41XTE, B41XTCE, P36, P36E
Olympia Ventis DV: www.olympiachimney.com
