2.3 Modification Kits - The basic capability of the con-
troller can be quickly and conveniently extended with the
use of a variety of optional Modification Kits. (Refer to
Figure 2.2.) The Basic Controller modifications are:
• Tachometer Feedback
• Voltage / Tachometer Follower
• Instrument Interface / Preset Speed
• Field Supply (Standard on 2. 3 and 5 hp controllers)
• Torque Taper
• Test Meter Adapter
Remote Operator
Adapter Module
and/ or
Master Reference Switch
Receiver Module
Tachometer Feedback
• Dancer Follower
• Master Isolated Reference Receiver
• Contactor Adapter
The Auxiliary Panel modifications are :
• Dynamic Braking
• Reversing Contactor
• Automatic Reversing
• Auxiliary M Contact
Complete descriptions of each Kit are given in Section
5.
Refer also to Table 5.A.
Reversing Contactor
Auxiliary M Contact
Voltage / Tachometer
Follower
or
Instrument Interface /
Preset Speed
or
Dancer Follower
or
Master Reference
Receiver
Test Meter Adapter

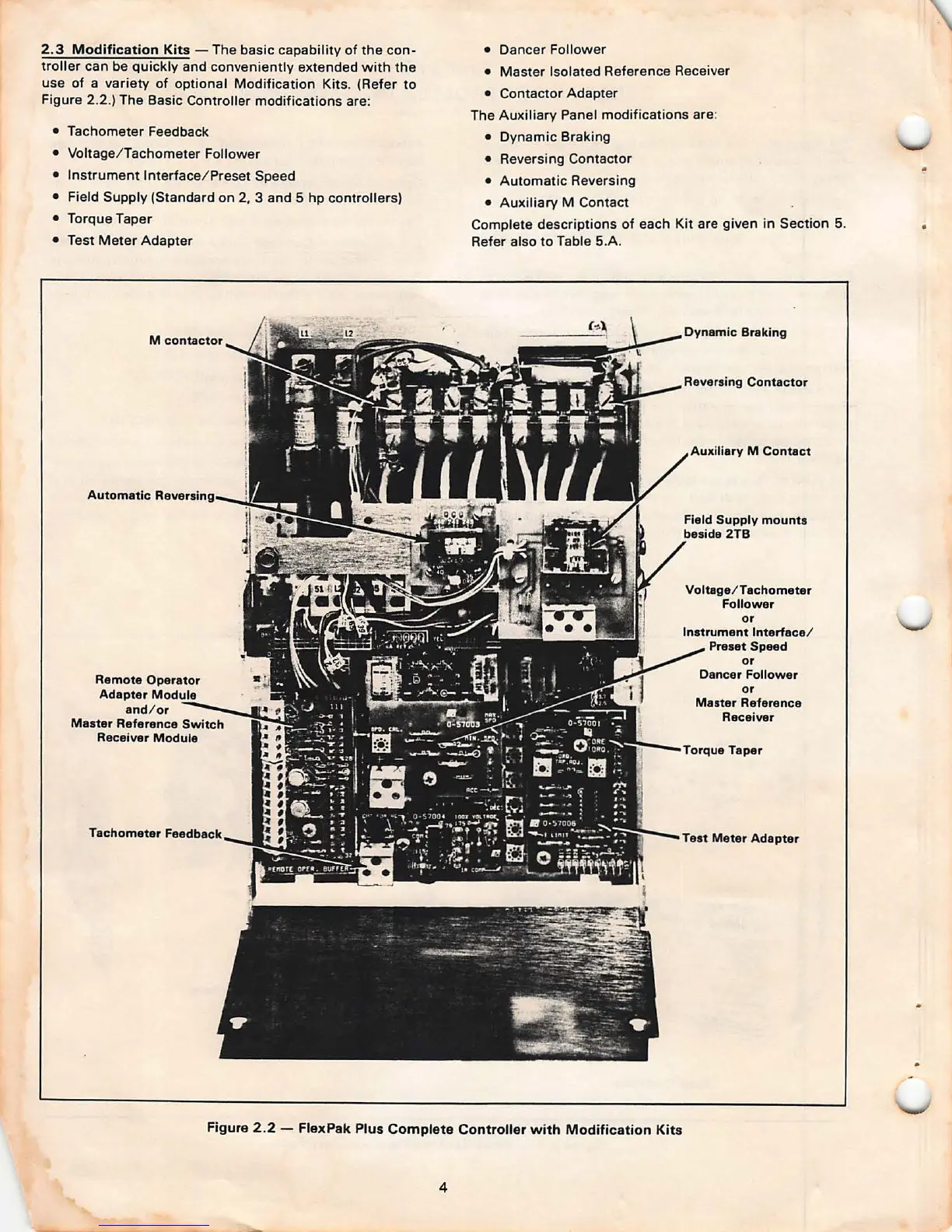

Figure 2.2 - Flex Pak Plus Complete Controller with Modification Kits
