3.2. Attaching & Transporting GrainVac with Tractor or Truck
1. Ensure that all components are securely stowed in position on the GrainVac by
reviewing the steps outlined in Section 4.9.1. Normal Shutdown on page 46.
2. Clear all bystanders, especially children, from the working area.
3. Use the jack stand (see Figure 3.1) to raise or lower the hitch to the required height
for attaching.

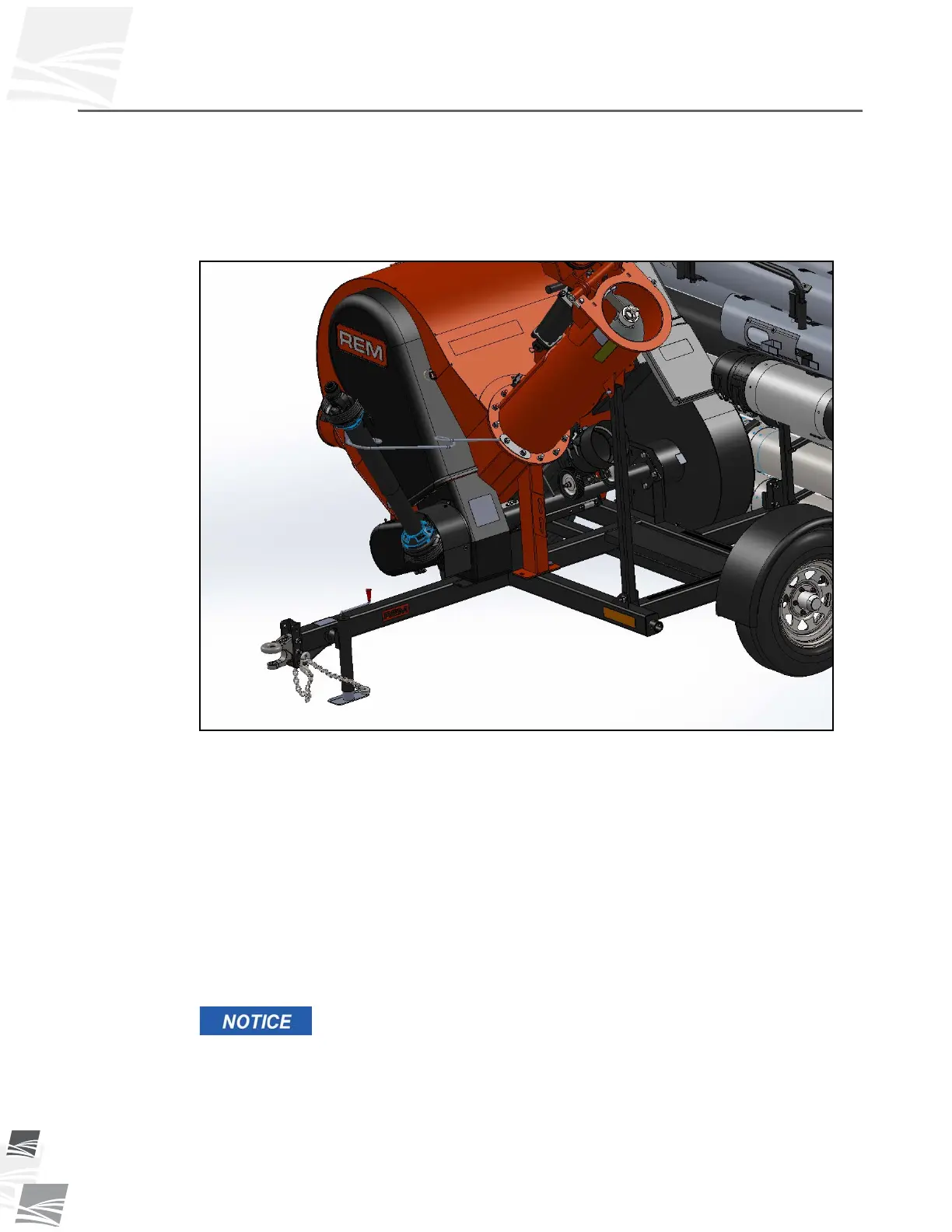

Figure 3.1 Jack and PTO in Storage Position
4. Slowly back the towing vehicle up to the GrainVac.
5. Care must be taken when attaching the GrainVac to the towing vehicle, using a
drawbar pin with a mechanical retainer. Install the mechanical retainer. Properly
place hitch pin. Use a type of hitch pin that will not allow the GrainVac to separate
from the towing vehicle. Securely attach the safety chain to the towing vehicle
drawbar.
6. Use the jack to lower the hitch onto the drawbar. When the jack no longer supports
the hitch, stow it out of the way by removing the retaining pin in its mounting bracket.
Rotate the jack 90° and replace the retaining pin.
7. Ensure the PTO remains stowed in its holder for transport. It should not be hooked
up to the tractor.
Failure to disconnect the PTO from the tractor before transport may
result in damage to the PTO components during turning.
8. Clean the reflectors.
9. Slow Moving Vehicle (SMV) sign:
a. If transporting below 40 mph (65 kph), secure and display the SMV sign in the
bracket located on the hose rack (see Figure 3.2).
