5.4.5. Rotor Drive Belt Idler Pulley – Alignment
1. Check the rotor drive belt idler pulley alignment by looking from the inlet side of the
GrainVac (see Figure 5.8). Rotate the assembly by hand turning clockwise looking
from the rear. Check to see if the belt runs straight as it passes over the idler or if it
is pulled to either side. The edge of the belt, where it passes over the idler pulley,
should be straight and parallel to the edge of the belt on the tight side of the belt.
Note: For best belt longevity, the belt should be placed on the idler pulley as close as possible
to the center.

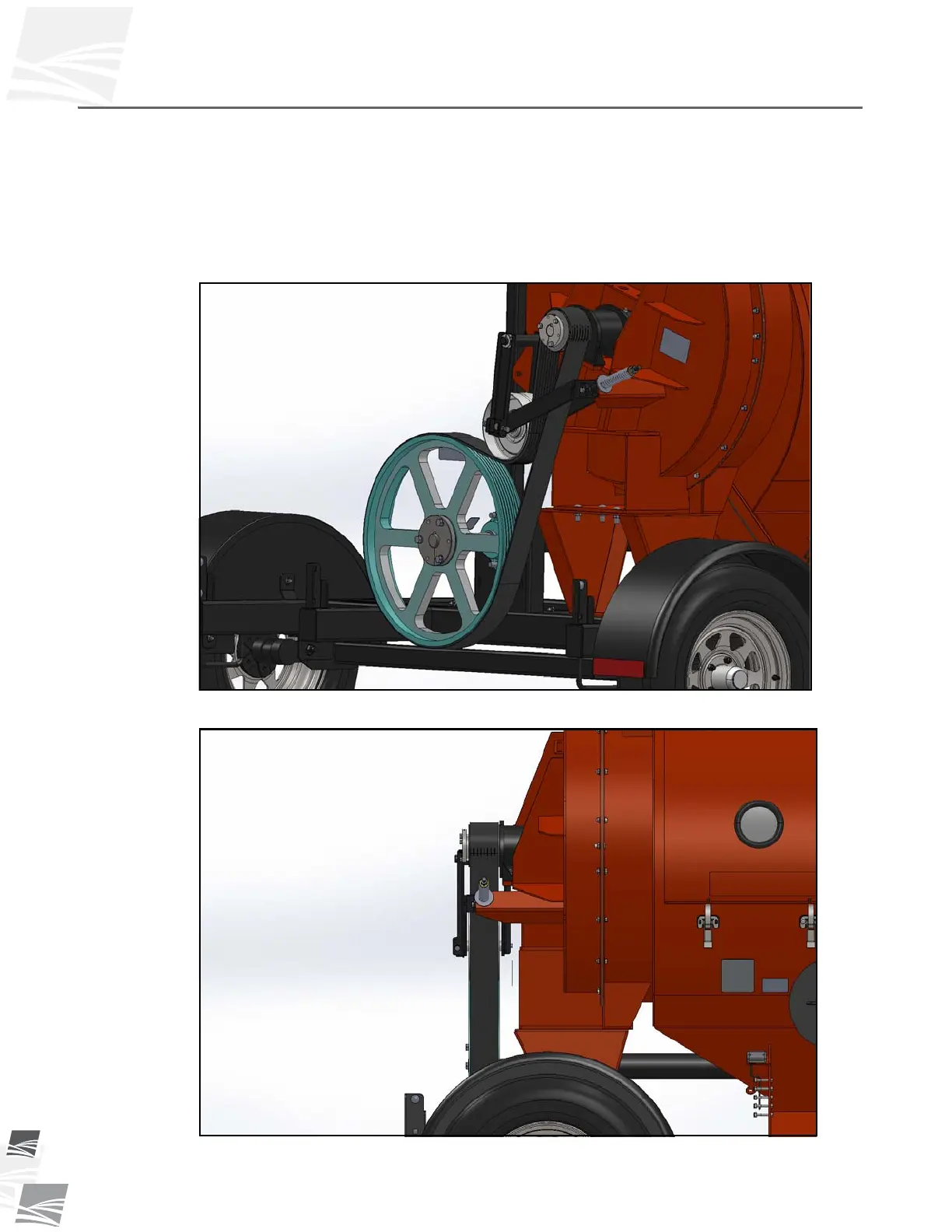

Figure 5.8 Belt Pulley Alignment
Figure 5.9 Belt Pulley Alignment
