REM - GRAINVAC VR12 6. SERVICE
6.3. ROTORS REMOVAL/INSPECTION & BEARING CARTRIDGE REPLACEMENT
9000-00-0042 R3 79

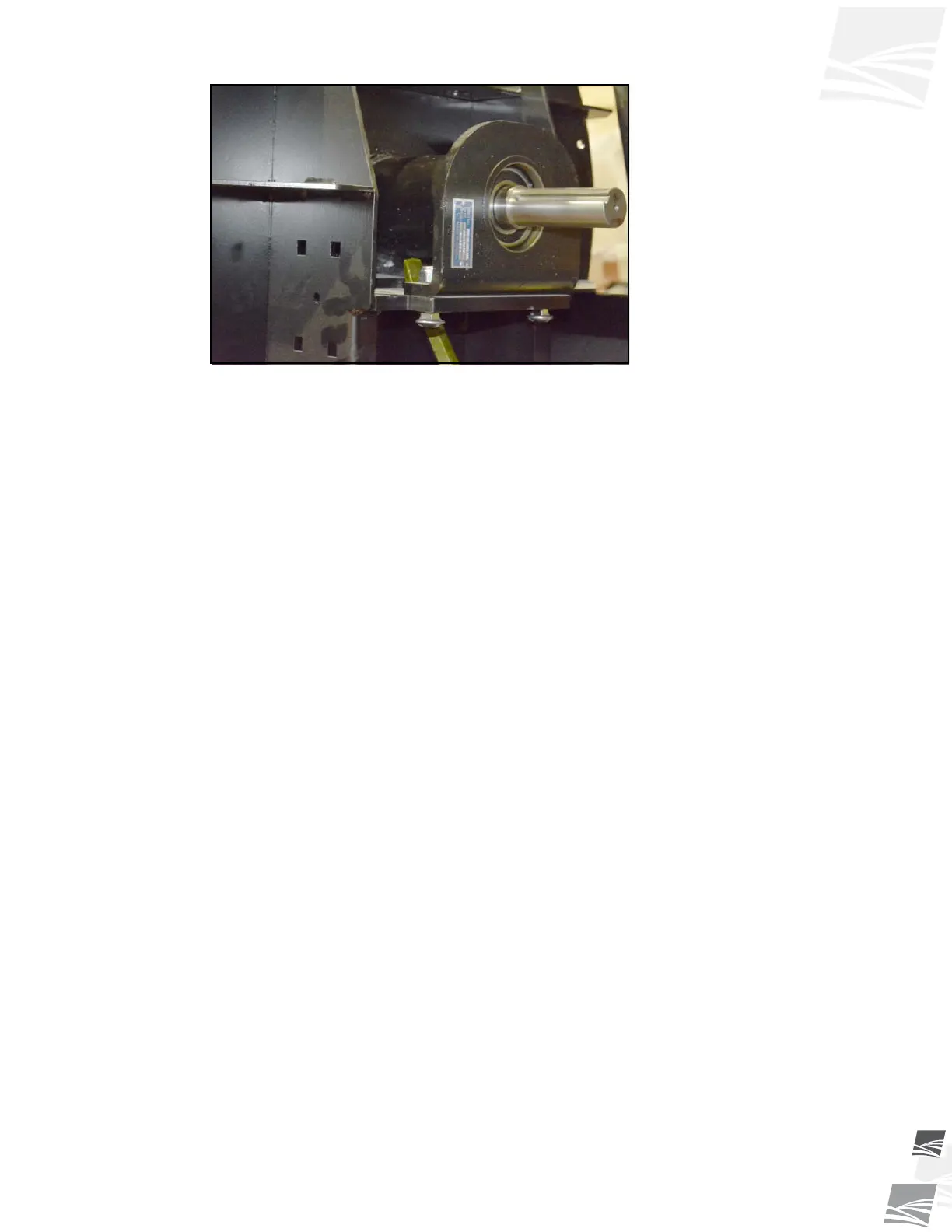

Figure 6.5 Pry Bar Position
5. Torque the drive pulley hub bolts to 15 ft·lb (20 N·m) (refer to Section 6.4. Split Taper
Bushing – Removal & Installation on page 80).
6. To reinstall the rotors and stator onto the rotor drive shaft, to reinsert the pedestal/
rotors assembly into the rotor housing on the vac body, and to reinstall the belt idler
assembly, refer to step 21. in Section 6.3.1. Rotors – Removal and Full Inspection.
