17
4.3.3 Wall bracket
Using the template provided mark fixing holes and flue outlet centre on the wall. Drill
the wall, using the plugs and screws provided and secure the mounting bracket to the
wall. Carefully lift boiler and locate the cut out in the back onto the wall bracket, see
Fig. 08.

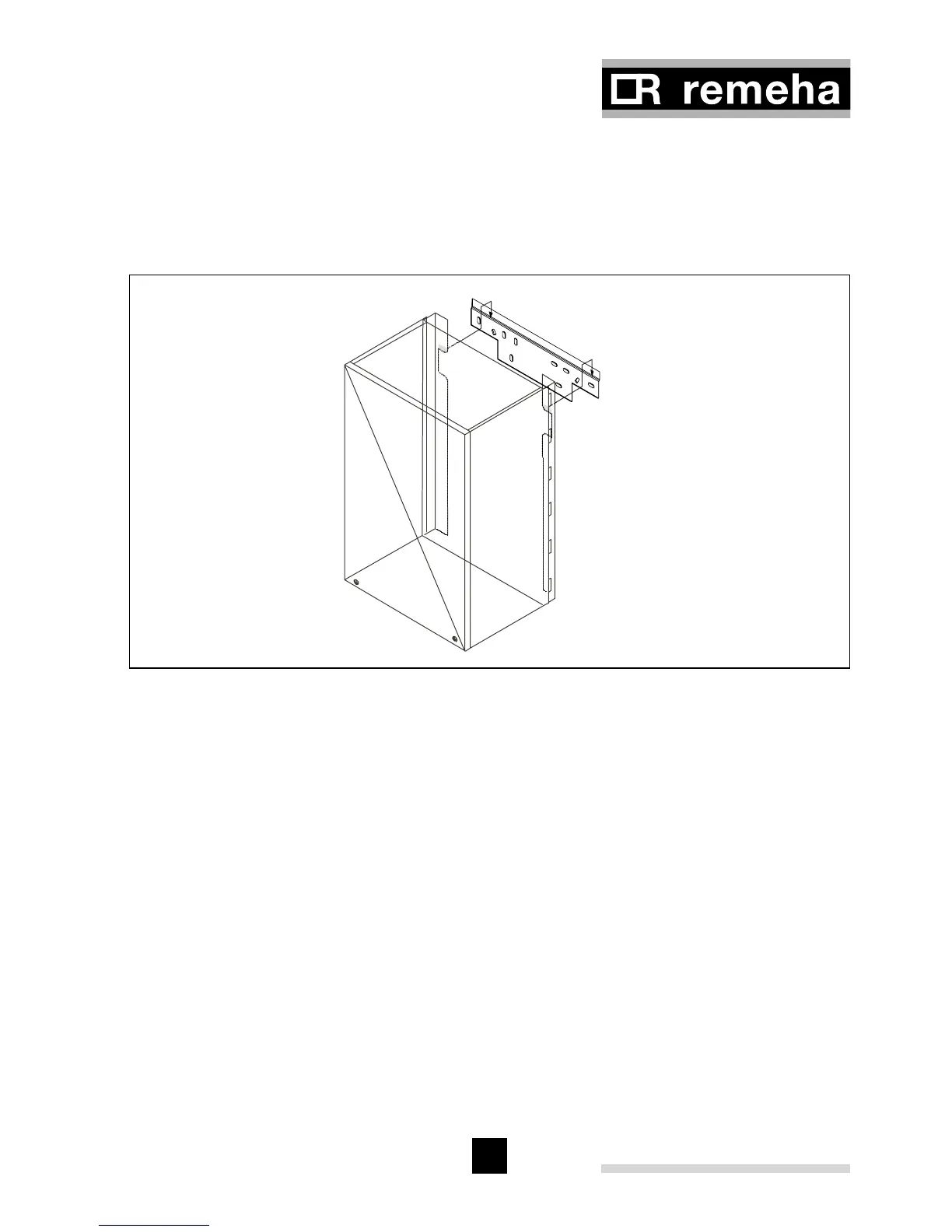

Fig. 08 Wall bracket
eps wall bracket
Note: It is possible to route pipework behind the boiler using this option.
Fixings supplied are suitable for brick/block wall only and alternative fixings
should be used on different wall types.
4.4 Flue gas discharge and air supply
The Remeha Selecta is only suitable for room sealed operation with a concentric hori-
zontal or vertical flue. After mounting boiler and before connecting the flue assembly,
remove the dust cap from flue/air inlet connection.
Compartment ventilation is not required with this boiler with the concentric flue sys-
tem.
Attention: plastic flues should not be used!
