M Horizontally from a terminal on same wall 300
N From a terminal facing the terminal 1200
P
From an opening in a carport (e.g. door, window) into
the building
1200
R From a vertical structure on the roof n/app
S Above an intersection with the roof n/app
Table 02 Minimum distances to terminal
1)
= Notwithstanding the dimensions above, a terminal serving a natural draught and
fanned draught appliance more than 5kW heat input should be at least 300 mm
and 150 mm respectively from combustible material.
2)
= The distance from a fanned draught appliance terminal installed at right angles to
a boundary may be reduced to 300 mm in accordance with Fig. 09.
n/app = not applicable.
4.5 Type of arrangement in connection with flue gas discharge
Arrangement according to CE: type C13, C33.
4.5.1 Single boiler, concentric room sealed flue

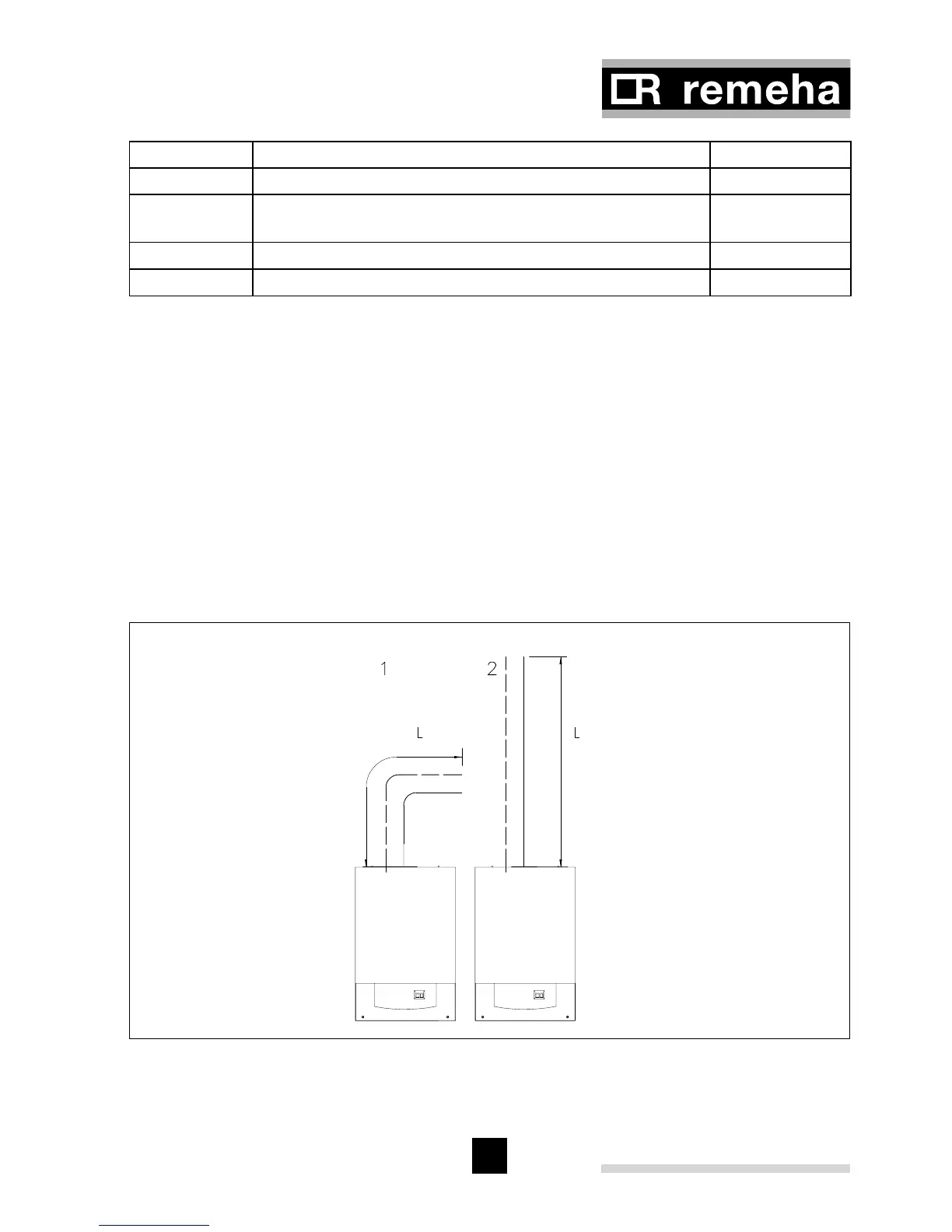

Fig. 10 Flue gas discharge duct, single boiler, room sealed application
04.W5H.79.00005
