3 DIMENSIONS AND TECHNICAL DATA
3.1 Dimensions
All dimensions of relevance to the installation of the appliance are shown in Fig. 03
and Fig. 04. For clearance details, see Fig. 05.

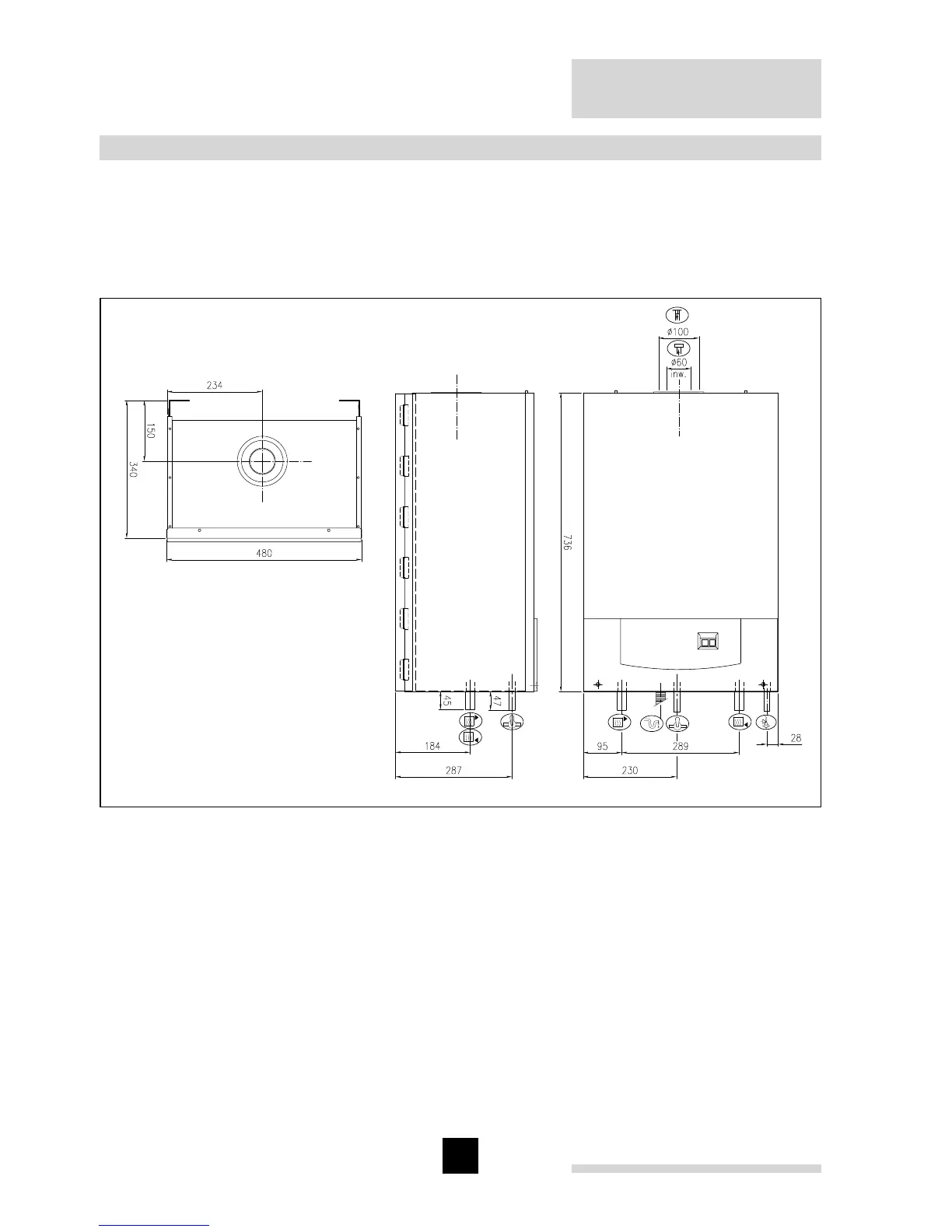

Fig. 03 Dimensions Selecta system
04.W5H.79.00002
Ê Return connection 22 mm Ø o/d
É Flow connection 22 mm Ø o/d
Ï Gas connection 15 mm Ø o/d
Ð Combustion air supply connection 100 mm Ø i/d
Ñ Flue gas discharge connection 60 mm Ø i/d
Ò Condensate connection 25 mm Ø
Ù Safety valve discharge 15 mm Ø
