10 MAN-GD-2300-002
Introduction
This manual contains an illustrated parts catalog and instructions for installation, operation, and service
of unit. Please read carefully and follow all instructions.
Parts catalog covers serviceable parts and is broken down into groups for each section of unit.
Parts shown in exploded views of assemblies have reference numbers that correspond to Part
Numbers. DO NOT ORDER PARTS BY REFERENCE NUMBERS. Part number and part description are
shown with reference numbers. Total number of parts required per unit or assembly is shown opposite each
part number.
When ordering parts, always give parts number and part description. If part the number cannot be
found in manual, give clear description of part and its location and function. Specify machine type and size.
General Instructions
Read all assembly instructions carefully and observe illustrations. Lubricate all bushings and moving
parts as you proceed. Bolts should be used in the holes in which they are designated. Leave bolts loose until
parts are attachments are completely assembled. Then tighten bolts. It is important that bolts are tight. Loose
bolts can cause breakage of parts. If bolts must be replaced, replace them only with bolts of equal strength.
The radial lines on the bolt determine their strength.
Periodic Check List
• Retighten all nuts and bolts. Shipping, transporting and general can cause nuts and bolts to become
loose.
• Check all drive chains, sprockets and keys. Verify drive chains and sprockets are properly aligned and
chains are proper length.
• Check seed meter adjustment. Move the seed rate adjuster lever to the “0” or closed position. Check all
seed meters to be sure all meters are in the fully closed position. If necessary, loosen the setscrews in the
locking collars of the seed meter and adjust all meters to the fully closed position.

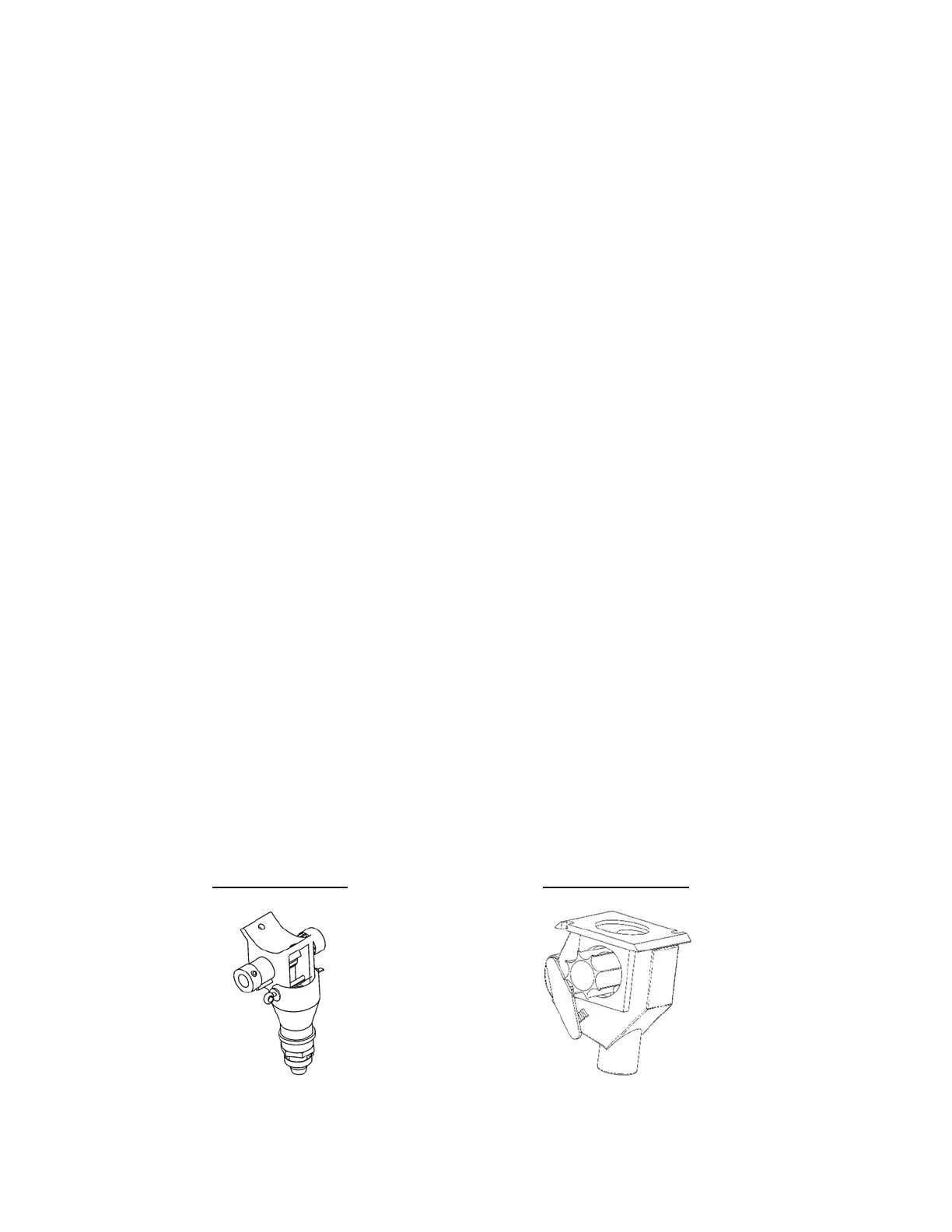

Small Seed Meter Main Hopper Meter
