57 MAN-GD-2300-002

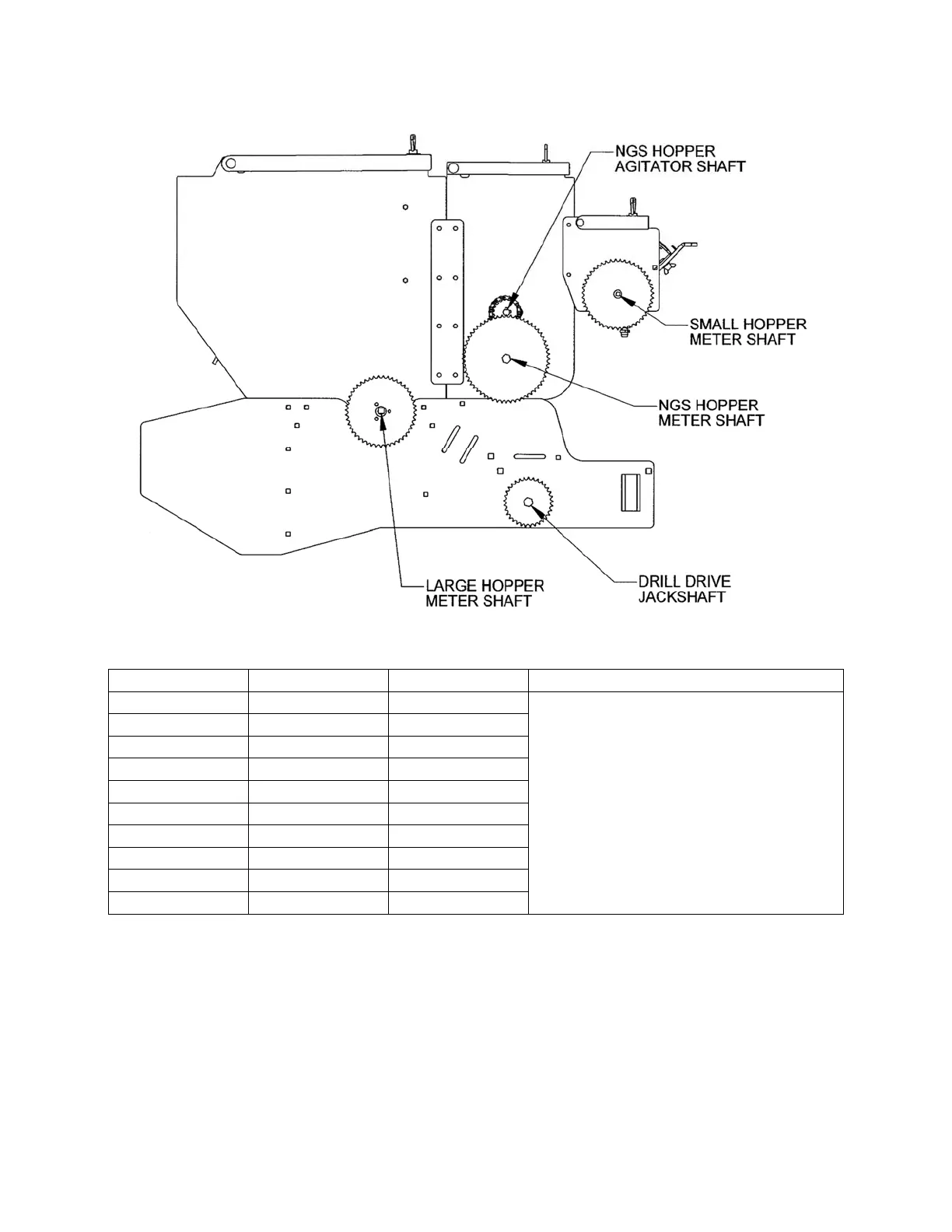

Standard Sprocket Ratios
Settin
# Jack Shaft Meter Shaft # of Chain Links
1 13 Tooth 60 Tooth
Adjust Tension Rollers as Required.
(see photos following seed charts)
2 15 Tooth 60 Tooth
3 13 Tooth 48 Tooth
4 15 Tooth 48 Tooth
5 13 Tooth 33 Tooth
6 15 Tooth 33 Tooth
7 33 Tooth 60 Tooth
8 33 Tooth 48 Tooth
9 13 Tooth 15 Tooth
10 15 Tooth 13 Tooth
The lower the setting # the lower the seed rate.
The higher the setting # the higher the seed rate
Seed Charts are not possible due to the large variation in seed size.
