Remlinger 2300 - Specifications

72 pages

Save Page as PDF

To Next Page

To Previous Page

12 MAN-GD-2300-002

Specifications

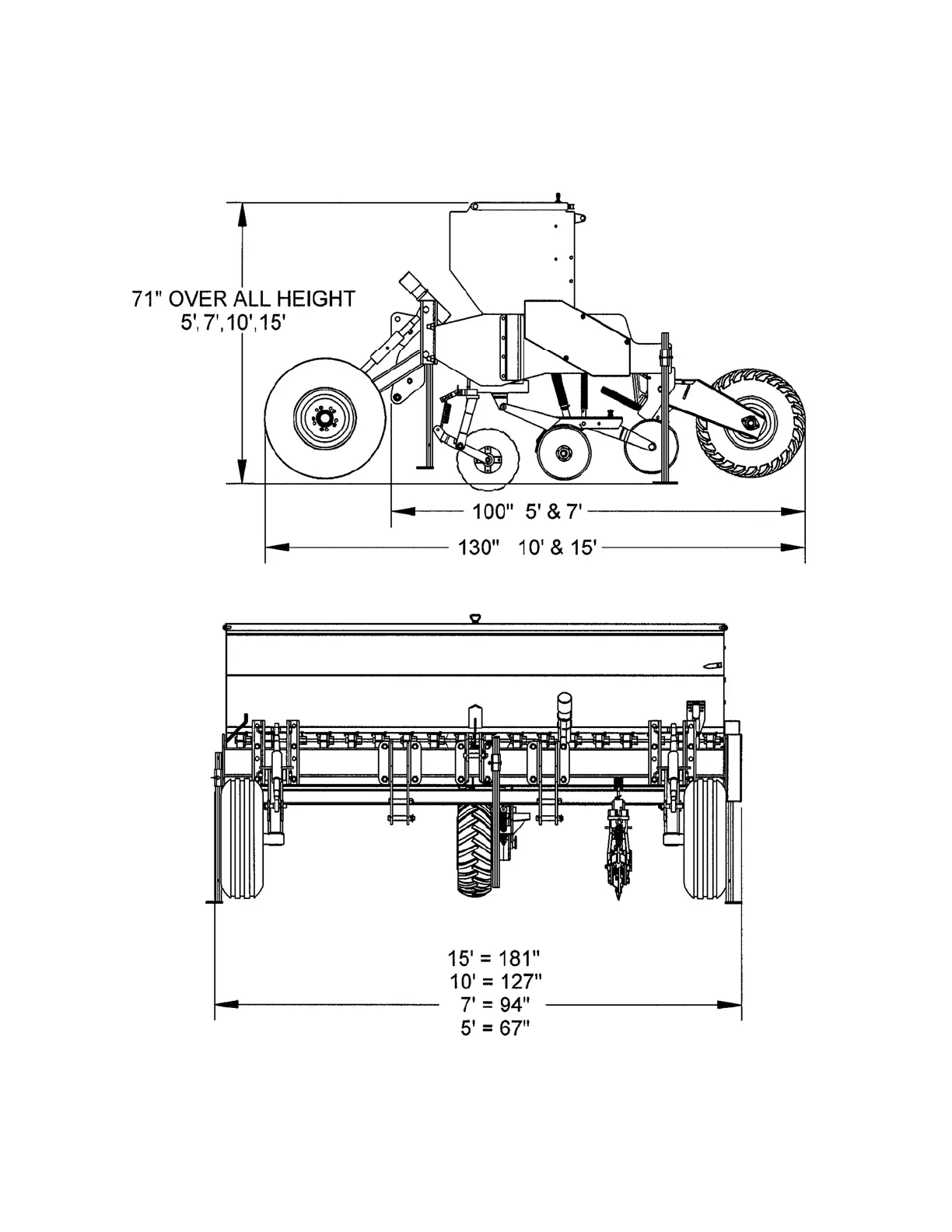

3 Point Hitch

Gage Wheel Packages are not available on 5’ & 7’ Drills

All dimensions are approximate and subject to change at any time.
