Remlinger 2300 - Point Hitch

45 MAN-GD-2300-002

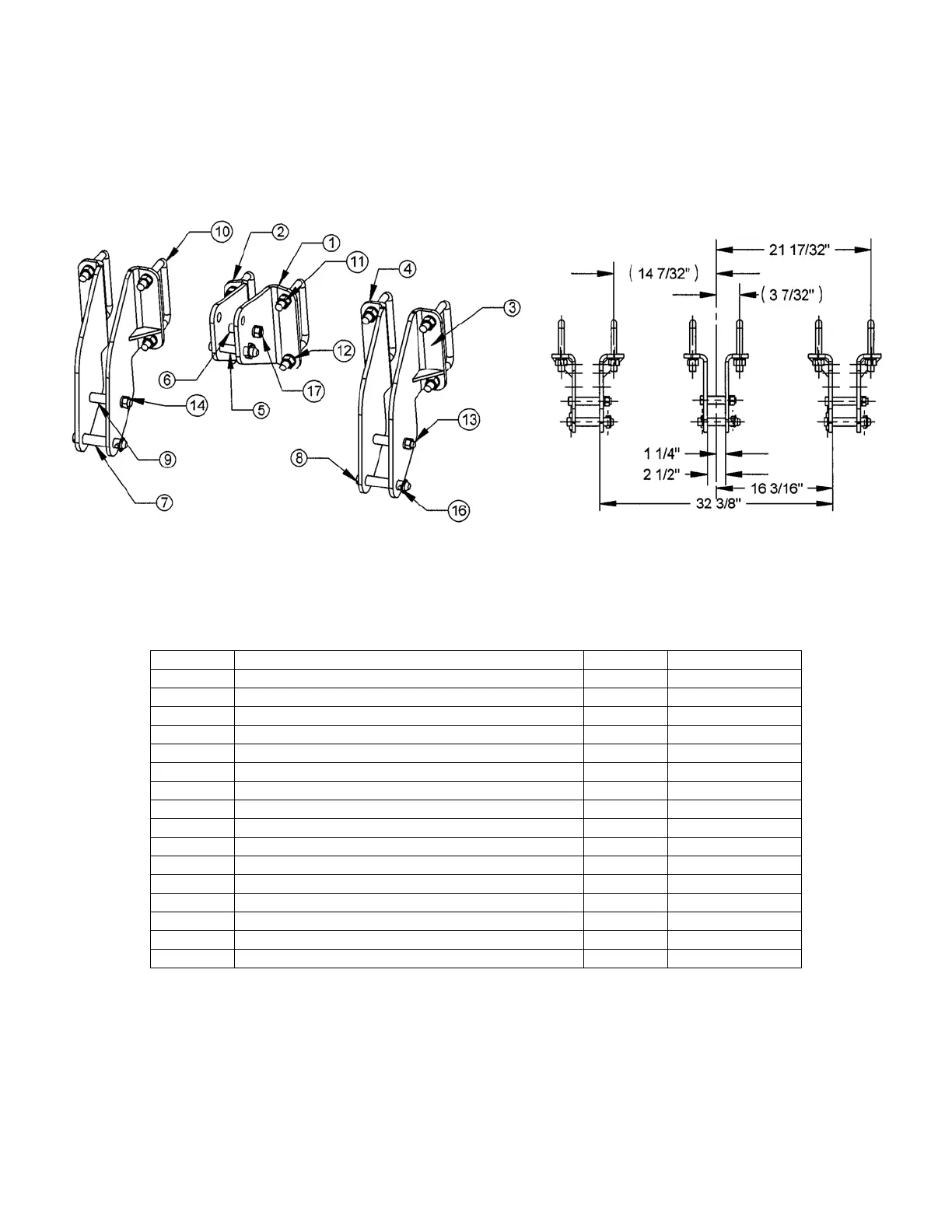

3 Point Hitch
Ref # Description Qt
y
Part #
1 Plate, Center Mast, Left 1 RM-RR1247
2 Plate, Center Mast, Ri
g
h
t
1 RM-RR1248
3 Lower Arm Weldment, Left 2 RM-RR1245
4 Lower Arm Weldment, Ri
g
ht 2 RM-RR1246
5 Pin, Upper 3PT, Cat II 1 RM-S18456
6 Bushin
g
, 3/4ID, Sch40, 201/2” Lon
g
1 RM-RR1250
7 Pin, Lower, 1-1/8 x 4-3/4 x 6, Lon
g
2 RM-J15387
8 3/8” x 2 1/2” Roll Pin 3
9 Bushin
g
, 3/4ID, Sch40, 3-3/8 Lon
g
2 RM-RR1251
10 7/8”-9 x 7” x 6 1/2” U-Bolt 6 RM-J08373
11 7/8”-9 Hex Nut 12
12 7/8” Lock Washer 12
13 3/4”-10 x 5 1/2” HCS 2
14 3/4”-10 Lock Nu
t
3
16 7/16” L
y
nch Pin 3 RM-J15483
17 3/4”-10 x 4 1/2” HCS 1
