TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K4M
11A

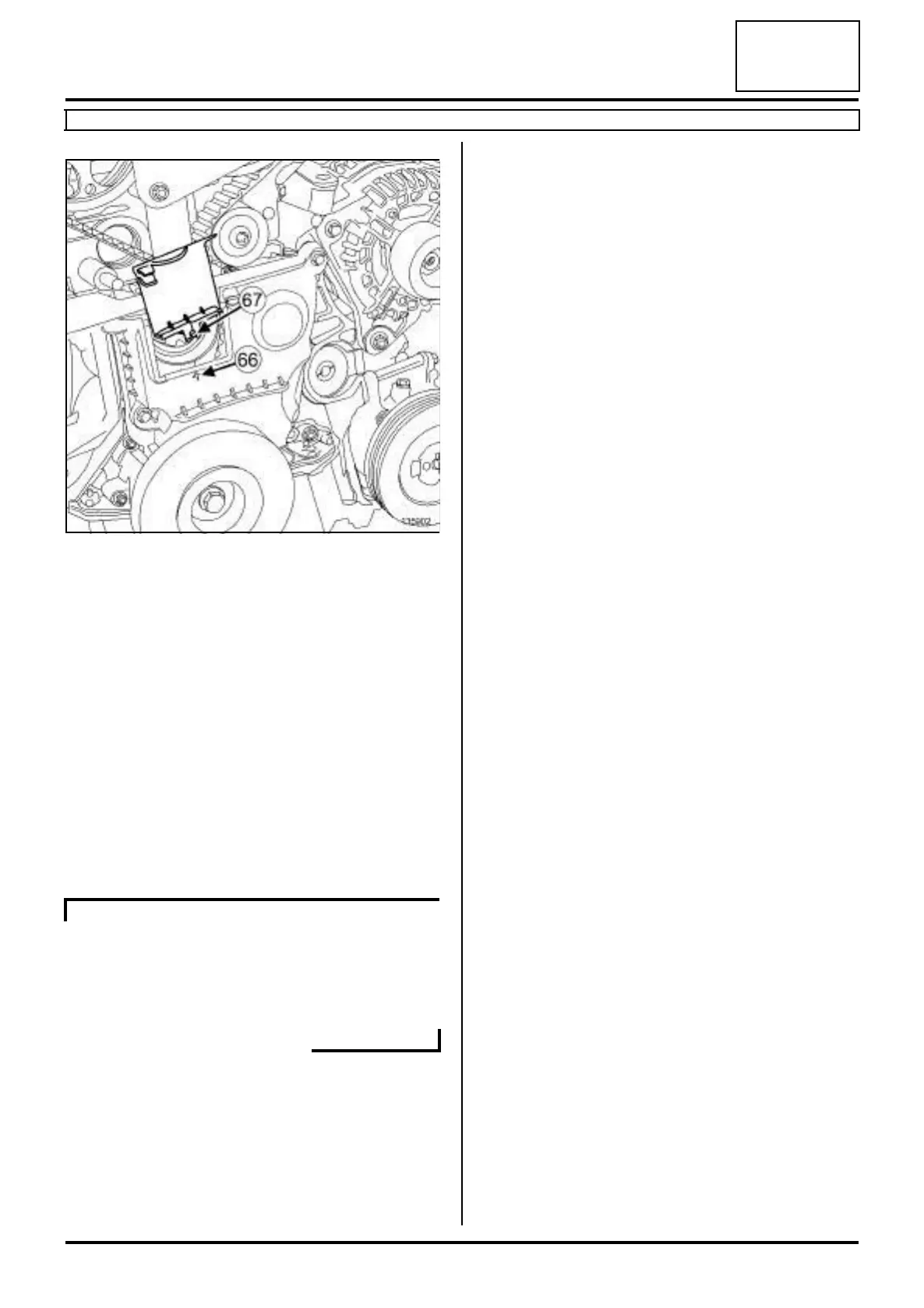

a Refit the lower timing cover flap, checking that the
locating pin (66) fits properly in the notch (67) .
III - FINAL OPERATION
a Refit:
-a new inlet camshaft plug using the (Mot. 1487),
-a new exhaust camshaft plug using the (Mot.
1488),
-the lifting eye.
a Torque tighten the lifting eye bolts (10 N.m).
a Fit the engine wiring.
a Refit the engine wiring retaining nut.
a Refit the dipstick guide.
a Torque tighten the dipstick guide tube bolt (10
N.m).
a Clip the engine wiring connector onto the lifting eye.
a Place a drop of SILICONE ADHESIVE SEALANT
(see Vehicle: Parts and ingredients for the repai-
rwork) (04B, Consumables - Products) on the
thread of the TDC setting pin plug.
a Torque tighten the TDC setting pin plug (25 N.m).
a Refit the upper timing cover.
a Tighten to torque:
- the upper timing cover bolts (46 N.m),
- the upper timing cover nuts (46 N.m).
a Refit:
- the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-18) ,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) ,
- the engine undertray,
- the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
- the scoop under the scuttle panel grille (see Scoop
under scuttle panel grille: Removal - Refitting)
(56A, Exterior equipment),
- the scuttle panel grille (see Scuttle panel grille:
Removal - Refitting) (56A, Exterior equipment),
-the windscreen wiper arms (see Windscreen wi-
per arm: Removal - Refitting) (85A, Wiping -
Washing),
-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-17) ,
- the engine cover.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
