10A-31
ENGINE AND CYLINDER BLOCK ASSEMBLY
Sump: Removal - Refitting
F9Q
10A
a

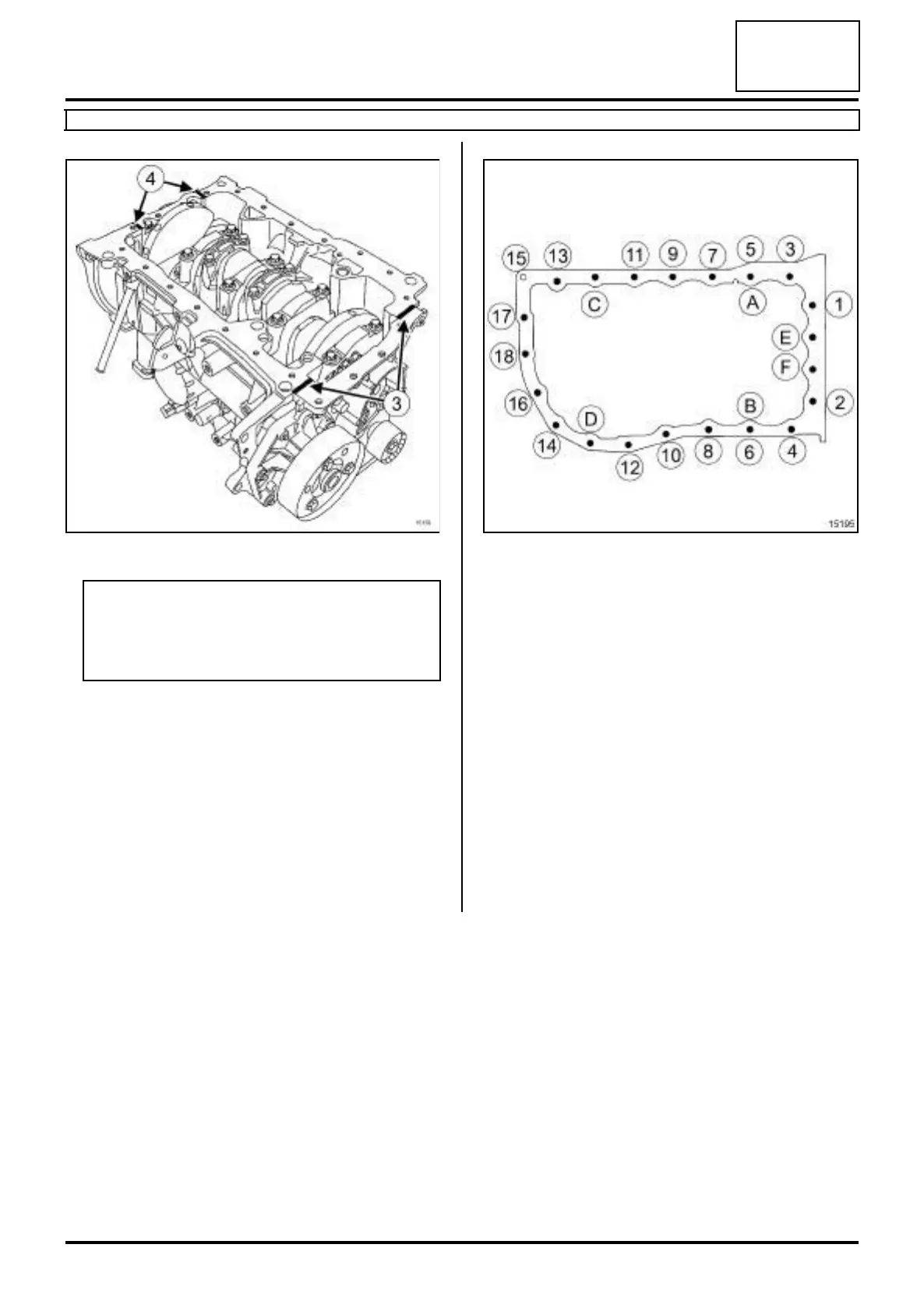

a Apply a BEAD OF SILICONE ADHESIVE SEA-
LANT (see Vehicle: Parts and ingredients for the
repairwork) (04B, Consumables - Products) to each
side of bearing No. 1 at (4) .
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new seal to the sump,
-the sump.
a Tighten to torque and in order:
- the sump bolts (A) to (F) (18 N.m),
- the sump bolts (1) to (18) (15 N.m).
a Connect the oil vapour rebreathing pipe to the sump.
III - FINAL OPERATION
a Refit the engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .
a Fill up with engine oil (see 10A, Engine and cylin-
der block assembly, Engine oil: Draining - Refil-
ling, page 10A-40) ,
a Refit the engine undertray.
15159
Note:
Do not cut the two tabs on the crankshaft closure
panel seal, which sit higher than the cylinder
block gasket face (3) .
15195
