17B-16
PETROL INJECTION
Crankshaft position sensor: Removal - Refitting
K4M
17B

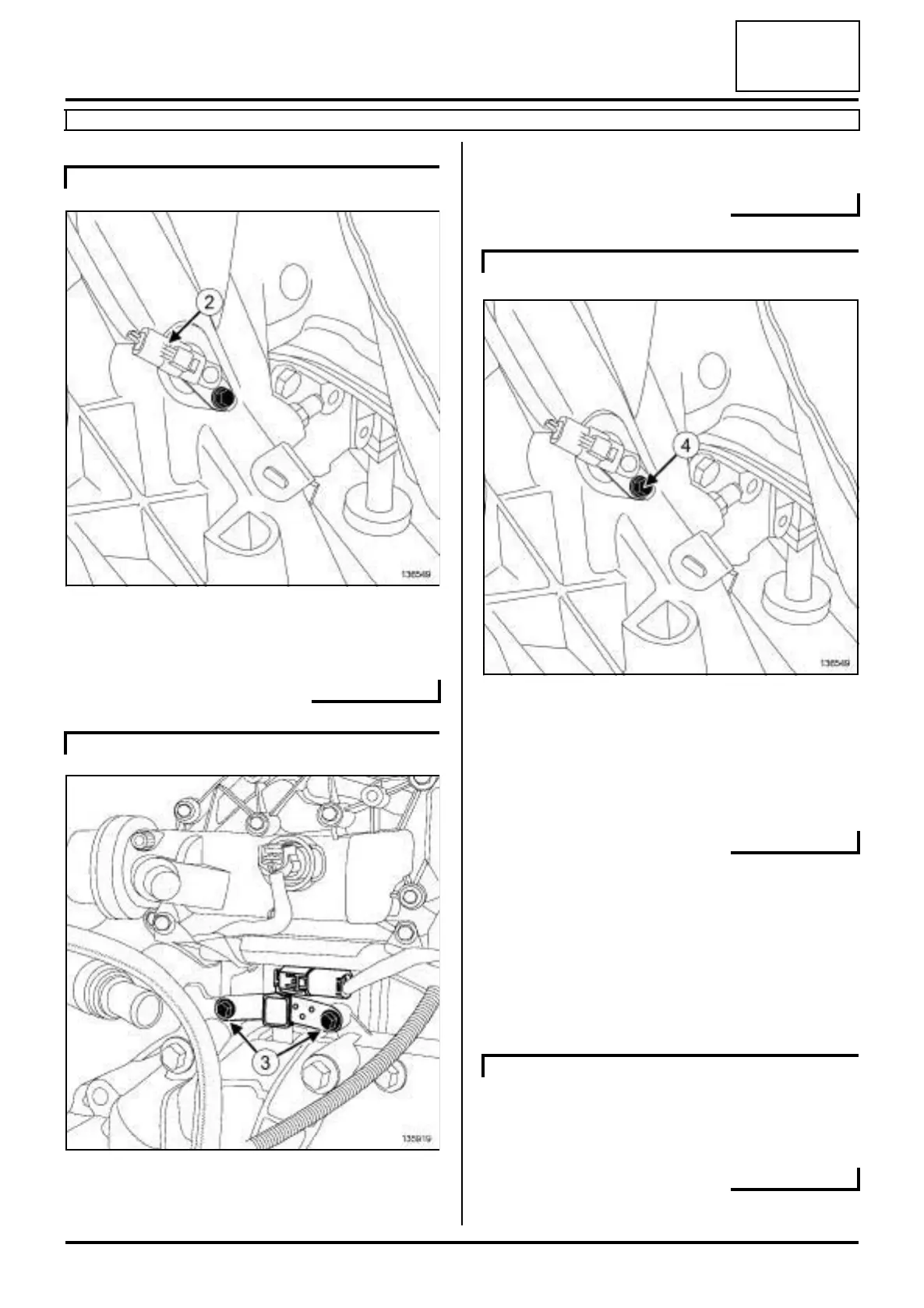

a Disconnect the crankshaft position sensor connector
(2) .
a Remove:
-the crankshaft position sensor bolts (3) ,
- the crankshaft position sensor.
a Remove:
- the crankshaft position sensor bolt (4) ,
- the crankshaft position sensor.
REFITTING
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit the crankshaft position sensor.
a Torque tighten the crankshaft position sensor
bolts (8 N.m).
a Connect the crankshaft position sensor connector.
TL4
136549
JH3
135919
TL4
136549
JH3
