10A-80
ENGINE AND CYLINDER BLOCK ASSEMBLY
Oil pump: Removal - Refitting
F4R
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the engine undertray bolts,
-the engine undertray,
-the lower engine tie-bar (see 19D, Engine moun-
ting, Lower engine tie-bar: Removal - Refitting,
page 19D-33) .
a Drain the engine oil (see 10A, Engine and cylinder
block assembly, Engine oil: Draining - Refilling,
page 10A-40) .
a Remove the sump (see 10A, Engine and cylinder
block assembly, Sump: Removal - Refitting,
page 10A-25) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED

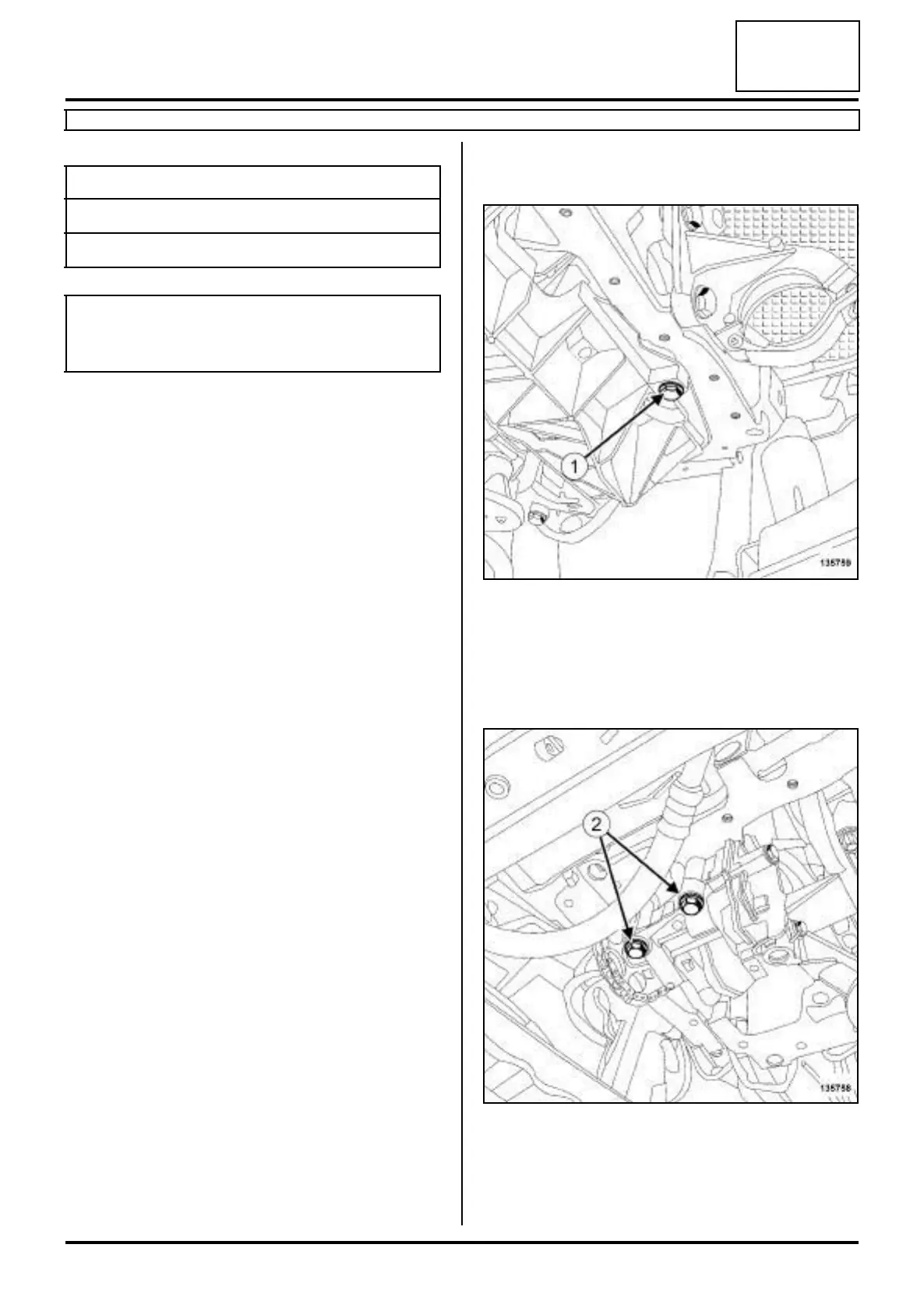

a Remove:
- the oil splash plate bolt (1) ,
- the oil splash plate.
a Remove:
- the oil pump bolts (2) ,
- the oil pump.
Tightening torquesm
oil pump bolts 25 N.m
oil splash plate bolt 25 Nm
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
135759
135758
